Installing the module bracket on the front door

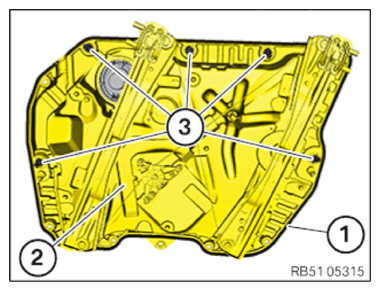

• Check seal (1) of the module bracket (2) for damage.

  The module bracket (2) needs to be replaced ff the seal (1) is damaged.

• Open all the snap fasteners (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

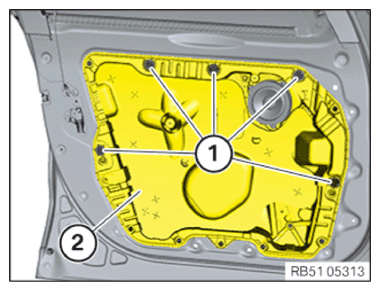

• Feed in the module bracket (2) and close the snap fasteners (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

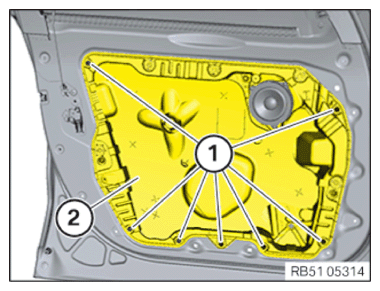

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Module bracket to door
  screw	Tightening torque  8 Nm

• Secure the wiring harness to all cable clips.
• Connect and lock all connectors to the module bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect all battery ground leads.

Courtesy of BMW OF NORTH AMERICA, INC.

• Shift the power window upwards until the side window glass correctly engages in both holders.
• Remove adhesive tape.
