Installing front door trim panel

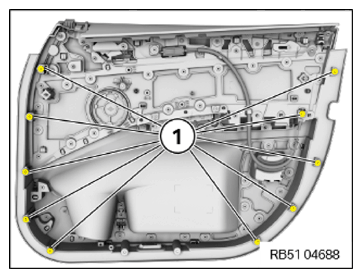

• Check the clips (1) for damage and replace where required.

  Courtesy of BMW OF NORTH AMERICA, INC.

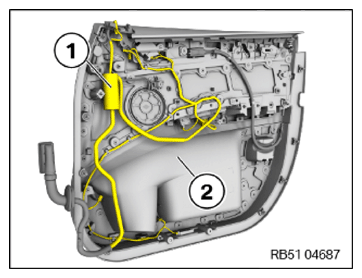

• Clip the door cable tree (1) into the door trim panel (2).
• Connect door wiring harness connector (1) to door trim panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

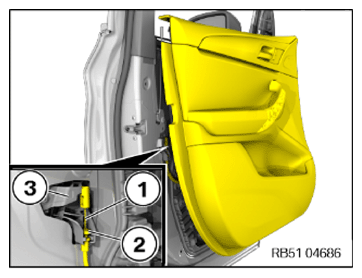

• Attach the Bowden cable of the door opener (1) on the door lock (3).
• Attach the Bowden cable of the door opener (1) on the counter support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

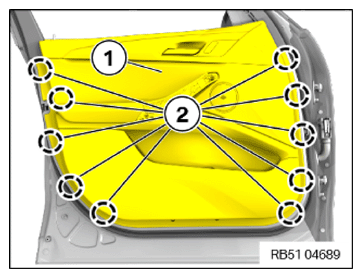

• Insert locking rod through opening in door trim panel (1).
• Clip in the door trim panel (1) onto the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

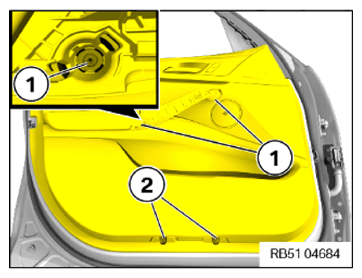

• Tighten down screws (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Mount door handle TRIM .
• Mount mirror triangle COVER .
