Mounting seal on the front door

NOTE: TECHNICAL INFORMATION
The repair notes of bonded seals form the basis for these repair notes and must be observed without fail.
For ADDITIONAL INFORMATION see: 54 10... Repair notes for bonded seals

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Hang the seal (1) over the door with the open lip facing inwards.
Sealing joint in area (A) position.
Glue seal as follows:

Gradually detach protective film

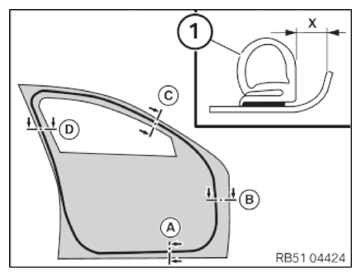

Align seal (1) corresponding to the specified dimensions (X) or the templates and press on lightly
Check the position of the seal (1) and correct if necessary
Do not overstretch or compress the seal (1) when positioning it
Maximum permissible sag of the seal (1) during the positioning process is 30 mm
Always apply pressure perpendicular to the bonding surface to affix the seal (1)

Courtesy of BMW OF NORTH AMERICA, INC.
Affix seal (1) with - firm thumb pressure

Area	Dimension x
A	11 mm
B	8 mm
C	8 mm
D	10 mm

Create a sealing joint in area (A), and shorten the seal (1) accordingly as needed.

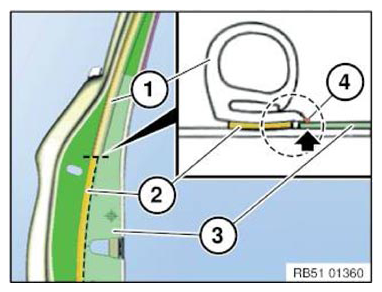

Position the seal (1) along the template (3):

The edge of the seal (1) is flush with the mark (4) (arrow) of the template (3).

Seal
Adhesive tape of seal
Template
Mark for the seal

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Install the window frame inside COVER .
Install front inner window CHANNEL STRIP .
Install front door TRIM PANEL .
Mount door handle TRIM .
Mount mirror triangle COVER .
