Remove the module bracket from the front door
- Secure the side window glass to the door frame at the top when it is closed using adhesive tape.

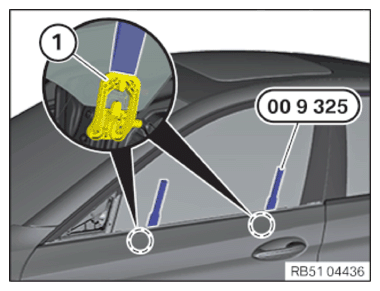

- Spread both holders simultaneously (1) on the side window glass using special tool 0 496 569 (00 9 325) until it is possible to detach the side window glass.
- Shift power windows down by approximately 10 cm.

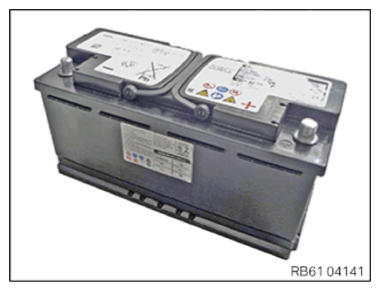

Disconnect all battery ground leads.
- Unlock and disconnect all plug connections on the module carrier (2).
- Release all the cable clips of the wiring harness from the module carrier (2).

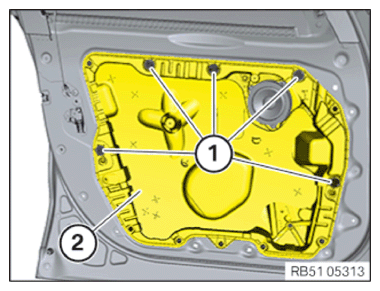

- Loosen screws (1).

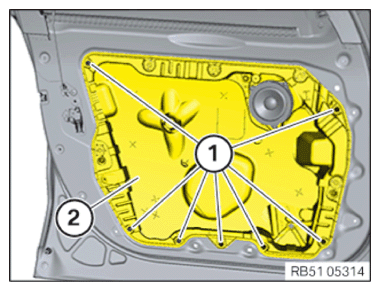

- Release the snap fasteners (1) and feed out the module bracket (2).
NOTE:
The module carrier (2) cannot be removed if the power windows are moved completely down.
