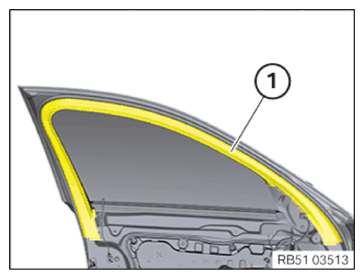

Installing the cover on the inside of the window frame

• Start from the rear and connect the cover (1) to the door frame.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly insert the cover on the window frame (1) into the gap of the rubber window seal (2).
• Make sure the cover (1) is correctly positioned on the door weather strip.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install front inner window CHANNEL STRIP .
• Install front door TRIM PANEL .
• Mount door handle TRIM .
• Mount mirror triangle COVER .
