Installing the protective strip on front door

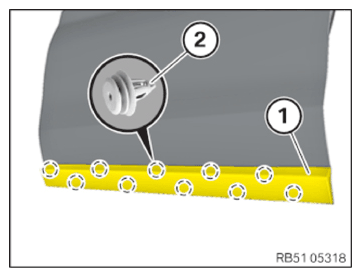

• Check the clips (2) for damage and replace if necessary.

  The clips (2) must not be damaged or missing.

• Position bumper strip (1) correctly and engage at the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

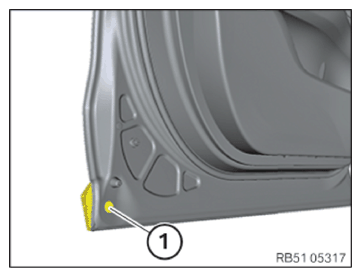

• Tighten screw and mount cover (1).

TIGHTENING TORQUES SPECIFICATION

Bumper strip on door
Screw 4.8x13	Tightening torque	3 Nm
