Installing the component carrier

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .

Do not use any metal-cutting tools.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

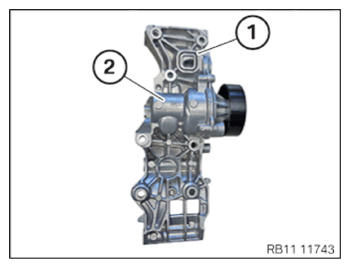

Replace the seal (1) .
Parts: Gasket
Feed in seal (1) at component carrier (2) and install.

Courtesy of BMW OF NORTH AMERICA, INC.

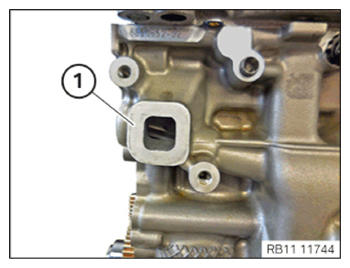

Clean the sealing surface (1) using special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

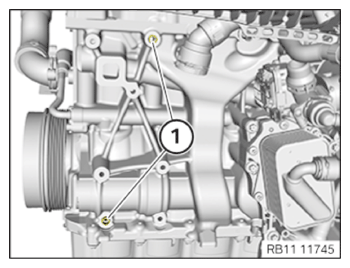

Make sure that centering sleeve (1) is sealed correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

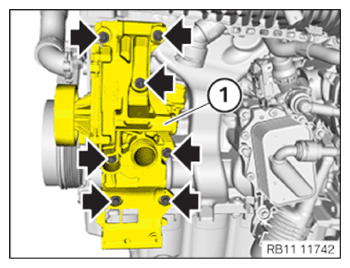

Feed in component carrier (1) and install.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Component carrier to crankcase
M8x35	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

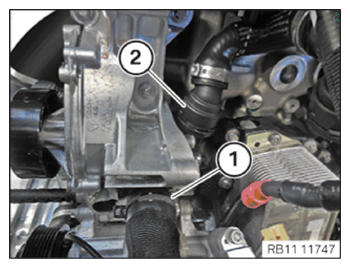

Fasten coolant hose (1) with special tool 0 495 794 (17 2 050) .
Connect and lock coolant line (2) .
Make sure that the coolant line (2) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND CYLINDER HEAD .
Refer to INSTALLING ALTERNATOR .
Refer to INSTALLING AIR CONDITIONING COMPRESSOR .
Refer to INSTALLING THE DRIVE BELT FOR THE ALTERNATOR .
Refer to IF INSTALLED: INSTALLING THE RIGHT BRAKE AIR DUCT .
Refer to INSTALLING THE WASHER FLUID RESERVOIR IN THE MOUNT .
Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
Refer to INSTALLING THE FRONT RIGHT WHEEL .
Refer to CONNECTING COOLANT LINE .
Refer to EVACUATE AND CHARGE CONDITIONING .
Refer to INSTALLING THE SERVOMOTOR FOR THE ECCENTRIC SHAFT .
Refer to INSTALLING THE INTAKE PLENUM .
Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
Refer to INSTALLING FRONT CROSS CONNECTION .
Refer to INSTALLING INTAKE SILENCER HOUSING .
Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STRUT BRACE .
Refer to FILLING THE COOLANT CIRCUIT WITH THE VACUUM FILLING EQUIPMENT .
Refer to CONNECTING THE BATTERY EARTH LEAD .
Refer to AIR BLEEDING THE COOLANT CIRCUIT .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
