Installing air conditioning compressor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

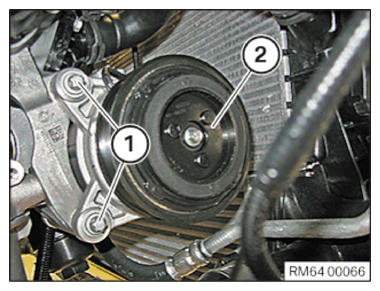

Insert and Install the air conditioning compressor (2) .

Tighten down screws (1) .

Tightening torques

Air conditioning compressor in component carrier
M10	tightening torque	38 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

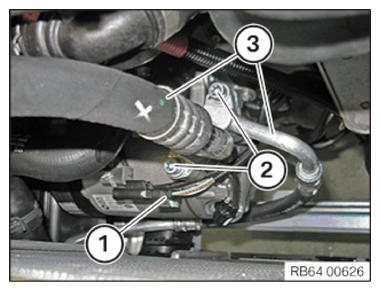

Replace the sealing rings of the refrigerant lines (3) with the special tool 0 496 714 (00 9 030) .
Parts: Sealing ring
Insert and install the coolant line (3) .

Tighten down screws (2) .

Tightening torques

Refrigerant line on air conditioning compressor
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1) .
Make sure the connector (1) engages audibly.
