If installed: Install the right brake air duct

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

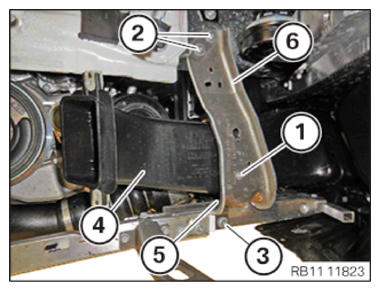

Feed in and position brake air duct (4) with the vertical strut (6) .

Tighten down screw (5) .

Tightening torques

Vertical strut to bumper support
M6x20	Tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (3) .

Tightening torques

Cross connection to front axle support
M6	tightening torque	12 Nm

Tighten the screws (2) .

Tightening torques

Vertical strut to bumper support
M6x20	Tightening torque	12 Nm

Tighten down screw (1) .

Tightening torques

Brake air duct to vertical strut
TS6x16	Tightening torque	4.5 Nm
