Removal [08/2015 - ]: Procedure

  1. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PROCEDURE - Step 1

  2. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  4. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  5. REMOVE RADIATOR GRILLE

    Refer to PROCEDURE - Step 2

  6. REMOVE FRONT BUMPER COVER

    Refer to PROCEDURE - Step 6

  7. REMOVE TRANSMISSION OIL COOLER AIR DUCT

    Refer to PROCEDURE - Step 1

  8. DISCONNECT RADIATOR SIDE DEFLECTOR LH

    Refer to PROCEDURE - Step 2

  9. REMOVE HOOD SUBASSEMBLY
    1. Remove the 2 hood support bolts and disconnect the hood supports.
      GTY611010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WARNING:

      Remove the hood support assembly while supporting the hood by hand.

    2. Remove the 4 bolts and hood.
  10. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY
    1. Remove the cowl top ventilator louver (Refer to REMOVAL [08/2015 - ] ).
  11. REMOVE FRONT FENDER APRON TRIM PACKING B

    Refer to PROCEDURE - Step 7

  12. REMOVE FRONT FENDER APRON TRIM PACKING D

    Refer to PROCEDURE - Step 8

  13. REMOVE FRONT FENDER APRON TRIM PACKING A

    Refer to PROCEDURE - Step 5

  14. REMOVE FRONT FENDER APRON TRIM PACKING C

    Refer to PROCEDURE - Step 6

  15. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 1

  16. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 2

  17. REMOVE NO. 1 ENGINE UNDER COVER SUBASSEMBLY
    1. Remove the 10 bolts and No. 1 engine under cover.
      GTY584096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 2 ENGINE UNDER COVER
    1. Remove the 2 bolts and No. 2 engine under cover.
      GTY607707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE OIL PAN PROTECTOR ASSEMBLY

    Refer to PROCEDURE - Step 12

  20. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 1

  21. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  22. REMOVE V-BANK COVER SUBASSEMBLY

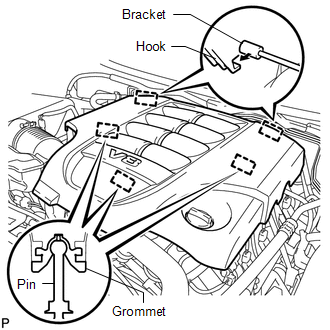

    1. Raise the front of the V-bank cover to detach the 3 pins. Then remove the 2 V-bank cover hooks from the bracket, and remove the V-bank cover.
      GTY554668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 9

  24. REMOVE AIR CLEANER ASSEMBLY
    1. Remove the 3 bolts and air cleaner.
      GTY611281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE NO. 1 RADIATOR HOSE
  26. REMOVE NO. 2 RADIATOR HOSE
  27. REMOVE FAN SHROUD

    Refer to PROCEDURE - Step 9

  28. REMOVE RADIATOR ASSEMBLY

    Refer to PROCEDURE - Step 10

  29. DISCONNECT FUEL MAIN AND RETURN HOSE
    1. Remove the fuel pipe clamp.
      GTY580824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel main and return hoses (Refer to PRECAUTION [08/2015 - ] ).
  30. DISCONNECT WIRE HARNESS AND HOSE
    1. Disconnect the purge line hose.
      GTY585194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the 6 hose clamps and remove the 4 heater hoses.
      GTY589800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the wire harness clamp and disconnect the ECM connector.

      HINT:

      Refer to the following procedures to disconnect the ECM connector (Refer to REMOVAL [08/2015 - ] ).

    4. Remove the bolt and disconnect the ground wire from the air injection control bracket.
    5. Detach the wire harness clamp and disconnect the 5 connectors from the connector holder block.
      GTY554619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the 2 air pump connectors and 3 clamps.
      GTY611232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the nut and connector bracket.
    8. Remove the bolt and disconnect the ground wire.
    9. Slide the 2 hose clamps and disconnect the 2 air injection system hoses.
    10. Remove the nut and disconnect the wire from the positive (+) battery cable.
      GTY600331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Disconnect the cable from the positive (+) battery terminal.
    12. Remove the bolt and disconnect the ground wire from the body.
    13. Disconnect the clamp.
    14. Remove the nut and disconnect the wire and 2 clips from the engine room junction block.
    15. Disconnect the 2 connectors and 2 clamps.
    16. Detach the clamp and disconnect the 4 air injection control driver connectors.
      GTY601310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. DISCONNECT COOLER COMPRESSOR ASSEMBLY

    Refer to PROCEDURE - Step 9

  32. DISCONNECT VANE PUMP ASSEMBLY

    Refer to PROCEDURE - Step 19

  33. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 13

  34. REMOVE TAILPIPE ASSEMBLY

    Refer to PROCEDURE - Step 2

  35. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 4

  36. REMOVE FRONT NO. 2 EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 5

  37. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 6

  38. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. GTY611093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the wire harness clamp.

    2. Remove the dipstick.
    3. Remove the bolt and dipstick guide.
    4. Remove the O-ring from the dipstick guide.
  39. REMOVE FRONT PROPELLER SHAFT ASSEMBLY
    1. Remove the front propeller shaft (Refer to REMOVAL [08/2015 - ] ).
  40. REMOVE REAR PROPELLER SHAFT ASSEMBLY
    1. Remove the rear propeller shaft (Refer to REMOVAL [08/2015 - ] ).
  41. REMOVE PROPELLER SHAFT HEAT INSULATOR

    Refer to PROCEDURE - Step 14

  42. REMOVE NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 15

  43. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 16

  44. REMOVE EXHAUST MANIFOLD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 17

  45. REMOVE NO. 1 MANIFOLD STAY

    Refer to PROCEDURE - Step 18

  46. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 19

  47. REMOVE EXHAUST MANIFOLD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 20

  48. REMOVE STARTER COVER

    Refer to PROCEDURE - Step 16

  49. REMOVE STARTER ASSEMBLY

    Refer to PROCEDURE - Step 17

  50. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
    1. Remove the automatic transmission (Refer to REMOVAL [08/2015 - ] ).
  51. REMOVE REAR NO. 1 ENGINE MOUNTING INSULATOR

    HINT:

    Only perform this procedure when replacement of the engine mounting insulator is necessary.

    1. Remove the 2 bolts and front engine mounting insulator RH.
      GTY562737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and rear engine mounting insulator from the transmission.
  52. REMOVE DRIVE PLATE AND RING GEAR SUBASSEMBLY
    1. Using SST, hold the crankshaft.
      GTY122206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-70011
      • SST: 09330-00021
    2. Remove the 10 bolts, rear drive plate spacer, drive plate and crankshaft angle sensor rotor.
      GTY147885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. DISCONNECT OIL COOLER TUBE
    1. Remove the 2 bolts and disconnect the oil cooler tube.
      GTY555620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE WATER A PIPE AND HOSE SUBASSEMBLY
    1. Slide the hose clamp and remove the water A pipe and hose subassembly.
      GTY608977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. REMOVE ENGINE ASSEMBLY
    1. Install 2 engine hangers with 2 bolts as shown in the illustration.
      GTY566896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engine Hanger Part No.

      Item Part No.
      Engine hanger 12281-38030
      Bolt 90119-14120

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    2. Attach an engine sling device and hang the engine with a chain block.
    3. Remove the 4 engine mounting insulator bolts.
      GTY576598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Lift the engine out from the vehicle slowly and carefully.
      NOTE:

      Make sure the engine is clear of all wiring, hoses and cables.

  56. REMOVE FRONT ENGINE MOUNTING INSULATOR LH
    1. GTY610744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the nut and mounting insulator.

  57. REMOVE FRONT ENGINE MOUNTING INSULATOR RH
    1. GTY610742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the nut and mounting insulator.

  58. REMOVE NO. 2 FRONT ENGINE MOUNTING BRACKET LH
    1. Remove the bolt and No. 2 front engine mounting bracket LH.
      GTY611111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. INSTALL ENGINE ON ENGINE STAND
    1. Install the engine onto an engine stand with bolts.
    2. Remove the 2 bolts and 2 engine hangers.
