Removal [08/2015 - ]: Procedure

  1. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 ENGINE UNDER COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 17

  4. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 18

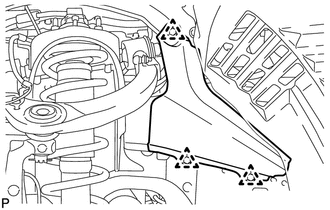

  5. REMOVE FRONT FENDER APRON TRIM PACKING A
    1. Using a clip remover, remove the 3 clips and front fender apron trim packing A.
      GTY591052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

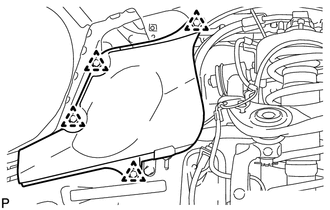

  6. REMOVE FRONT FENDER APRON TRIM PACKING C
    1. Using a clip remover, remove the 4 clips and front fender apron trim packing C.
      GTY611480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

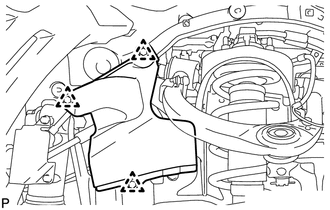

  7. REMOVE FRONT FENDER APRON TRIM PACKING B
    1. Using a clip remover, remove the 3 clips and front fender apron trim packing B.
      GTY591056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

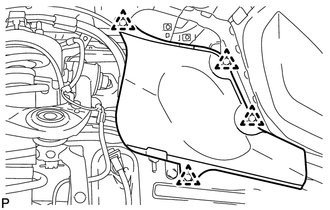

  8. REMOVE FRONT FENDER APRON TRIM PACKING D
    1. Using a clip remover, remove the 4 clips and front fender apron trim packing D.
      GTY591055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 38

  10. REMOVE TAILPIPE ASSEMBLY

    See step  2

  11. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    See step  4

  12. REMOVE FRONT NO. 2 EXHAUST PIPE ASSEMBLY

    See step  5

  13. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    See step  6

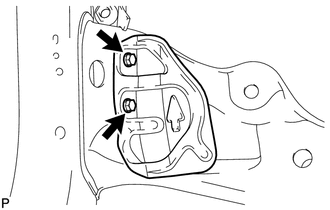

  14. REMOVE PROPELLER SHAFT HEAT INSULATOR
    1. Remove the 2 bolts and heat insulator.
      GTY611433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

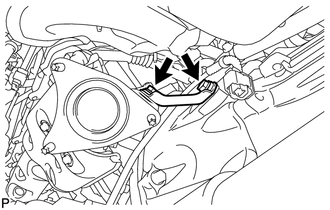

  15. REMOVE NO. 2 MANIFOLD STAY
    1. Remove the 2 bolts and manifold stay.
      GTY148558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and heat insulator.
      GTY604668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE EXHAUST MANIFOLD SUBASSEMBLY LH
    1. Remove the 10 nuts, exhaust manifold and 2 gaskets.
      GTY121322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

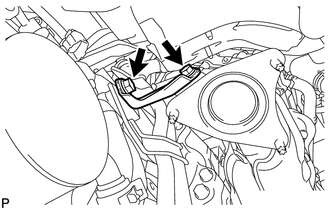

  18. REMOVE NO. 1 MANIFOLD STAY
    1. Remove the 2 bolts and manifold stay.
      GTY137626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and heat insulator.
      GTY594138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE EXHAUST MANIFOLD SUBASSEMBLY RH

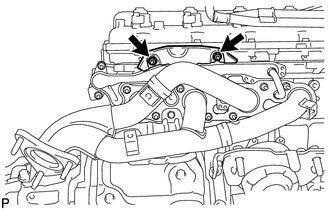

    1. Remove the 2 nuts and insulator from the exhaust manifold.
      GTY611146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 10 nuts, exhaust manifold and 2 gaskets.
      GTY147838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
