Removal [08/2015 - ]: Procedure

  1. DISCHARGE FUEL SYSTEM PRESSURE
    1. Discharge the fuel system pressure (Refer to PRECAUTION [08/2015 - ] ).
  2. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  4. REMOVE V-BANK COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 22

  5. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 9

  6. REMOVE NO. 1 ENGINE COVER SUBASSEMBLY
    1. GTY604650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the No. 1 engine cover subassembly.

  7. REMOVE NO. 3 ENGINE COVER
    1. GTY548421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the No. 3 engine cover.

  8. DISCONNECT NO. 2 FUEL TUBE
    1. Disconnect the No. 2 fuel tube from the fuel pressure regulator (Refer to PRECAUTION [08/2015 - ] ).
      GTY604975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT NO. 1 FUEL TUBE

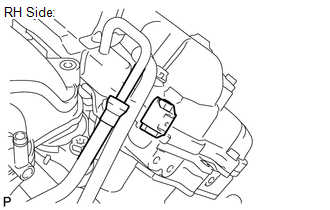

    1. GTY586916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      RH Side:

      Disconnect the No. 1 fuel tube from the fuel delivery pipe RH (Refer to PRECAUTION [08/2015 - ] ).

      • SST: 09268-21011

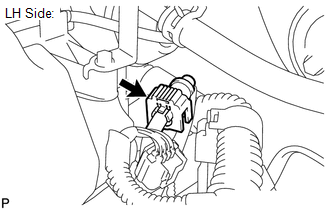

    2. GTY609591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      LH Side:

      Disconnect the No. 1 fuel tube from the fuel delivery pipe LH (Refer to PRECAUTION [08/2015 - ] ).

  10. DISCONNECT NO. 1 FUEL HOSE
    1. Disconnect the fuel hose from the fuel delivery pipe LH (Refer to PRECAUTION [08/2015 - ] ).

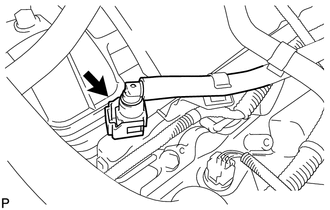

      GTY572051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FUEL DELIVERY PIPE SUBASSEMBLY RH
    1. Disconnect the ventilation hose and No. 6 wire harness connector.

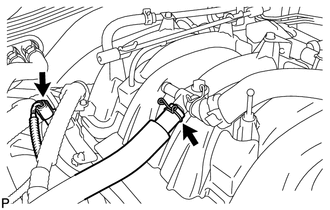

      GTY308864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and fuel delivery pipe RH.

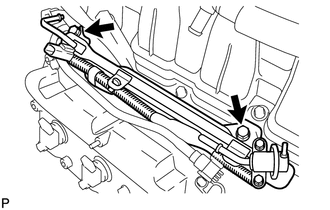

      GTY309983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When removing the delivery pipe, hold the pipe by both ends and pull it straight upward.

    3. Remove the 2 delivery pipe spacers and 4 insulators from the cylinder head RH.
  12. REMOVE FUEL DELIVERY PIPE SUBASSEMBLY LH
    1. Disconnect the No. 7 wire harness connector.
    2. Remove the 2 bolts and fuel delivery pipe LH.

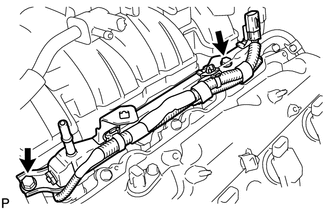

      GTY308865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When removing the delivery pipe, hold the pipe by both ends and pull it straight upward.

    3. Remove the 2 delivery pipe spacers and 4 insulators from the cylinder head LH.
  13. REMOVE FUEL INJECTOR ASSEMBLY
    1. Remove the fuel injector from the fuel delivery pipe, and then disconnect the injector connector.
      GTY125245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      GTY586451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      For reinstallation, attach a tag or label to the injector shaft.

    2. Remove the O-ring from the fuel injector.
      GTY605075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 3 clamps and then remove the No. 6 wire harness from the delivery pipe RH.
      GTY550417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the 3 clamps and then remove the No. 7 wire harness from the delivery pipe LH.
      GTY610823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
