Removal [08/2015 - ]: Procedure

  1. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH

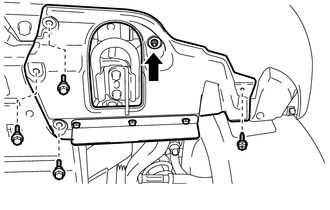

    1. Remove the 3 bolts and screw.
      GTY366405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the clip indicated by the arrow in the illustration to remove the front fender splash shield subassembly LH.
  2. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH

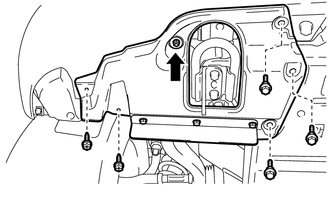

    1. Remove the 3 bolts and 2 screws.
      GTY366471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the clip indicated by the arrow in the illustration to remove the front fender splash shield subassembly RH.
  3. REMOVE UPPER RADIATOR SUPPORT SEAL

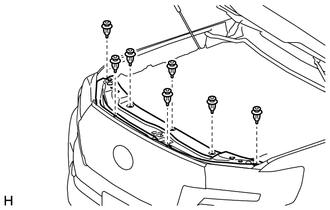

    1. Remove the 7 clips and upper radiator support seal.
      GTY584022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE HEADLIGHT COVER LH
    1. Put protective tape around the headlight cover LH.
      GTY592018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape

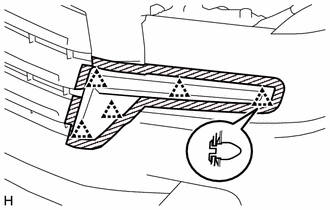

    2. Detach the 5 claws and remove the headlight cover LH.
      GTY607686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HEADLIGHT COVER RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE FRONT BUMPER COVER
    1. Using a T30 "TORX" socket, remove the 6 screws.

      HINT:

      Use the same procedure for the other side.

      GTY607693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

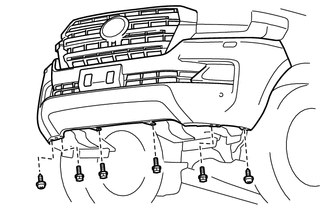

    2. Remove the 2 screws and 4 bolts.
      GTY584036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

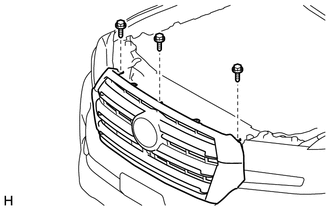

    3. Remove the 3 screws.
      GTY584007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

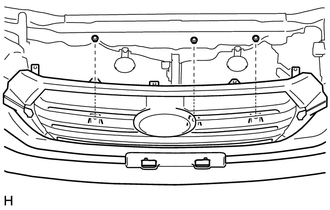

    4. Remove the 3 clips.
      GTY584001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

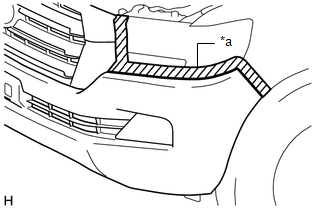

    5. Put protective tape around the front bumper cover.

      HINT:

      Use the same procedure for the other side.

      GTY600428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape

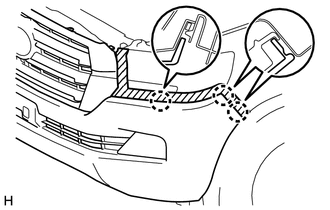

    6. Detach the 3 claws.

      HINT:

      Use the same procedure for the other side.

      GTY583998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

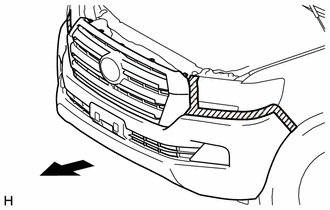

    7. Remove the front bumper cover.
      GTY584002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Disconnect the No. 4 engine room wire connector.
    9. Disconnect the front television camera assembly connector.
    10. w/ Headlight Cleaner System:

      Disconnect the headlight cleaner hose.

    11. w/ Dynamic Radar Cruise Control System:

      Disconnect the connector

  7. REMOVE FRONT BUMPER ENERGY ABSORBER

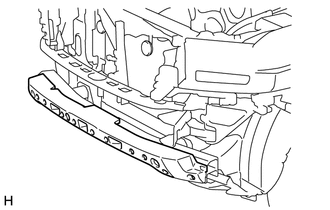

    1. Remove the front bumper energy absorber.
      GTY584035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT BUMPER REINFORCEMENT SUBASSEMBLY

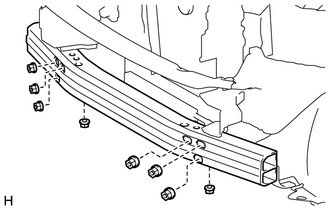

    1. Remove the 8 nuts and front bumper reinforcement subassembly.
      GTY568579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT BUMPER NO. 2 EXTENSION SUBASSEMBLY LH

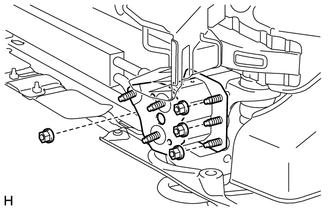

    1. Remove the 4 nuts and front bumper No. 2 reinforcement subassembly LH.
      GTY584018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT BUMPER NO. 2 EXTENSION SUBASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  11. REMOVE FRONT BUMPER SIDE SUPPORT LH

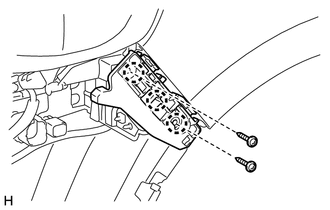

    1. Remove the 2 screws.
      GTY584017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 claws and remove the front bumper side support LH.
  12. REMOVE FRONT BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.

  13. REMOVE HEADLIGHT ASSEMBLY LH

    (Refer to REMOVAL [08/2015 - ] )

  14. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  15. REMOVE FRONT BUMPER UPPER CENTER RETAINER

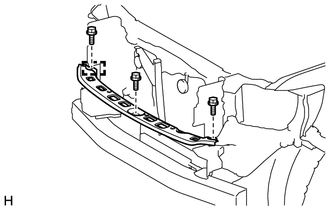

    1. Remove the 3 bolts.
      GTY568578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guide and remove the front bumper upper center retainer.
