Disassembly [08/2017 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2017 - ] ).

  3. REMOVE BACK DOOR GRIP

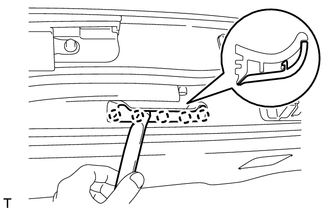

    1. Using moulding remover A, detach the 5 claws.
      GTY581142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

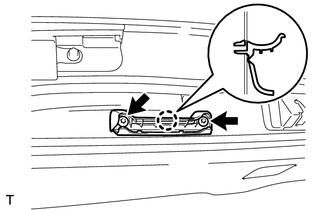

    2. Using a T30 "TORX" socket wrench, remove the 2 "TORX" screws.
      GTY581143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the claw and remove the back door grip.
  4. REMOVE LOWER BACK DOOR STOPPER CUSHION
    1. Remove the 4 bolts and 2 lower back door stopper cushions.
      GTY587435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CENTER BACK DOOR GARNISH

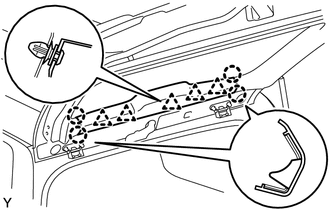

    1. Detach the 5 clips and 4 claws, and remove the back door garnish.
      GTY366868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CENTER STOP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  7. REMOVE BACK DOOR SIDE GARNISH LH

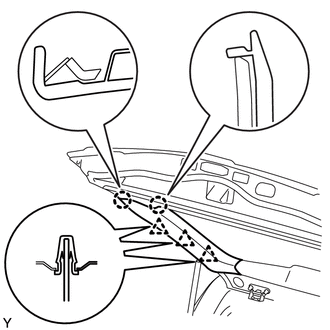

    1. Detach the 3 clips and 2 claws, and remove the back door side garnish.
      GTY366869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE BACK DOOR SIDE GARNISH RH
    1. w/o Power Back Door:

      HINT:

      Use the same procedure described for the LH side.

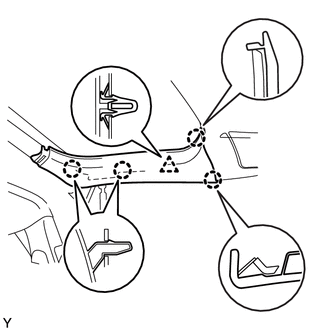

    2. w/ Power Back Door:
      GTY753539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the clip and 4 claws, and remove the back door side garnish RH.
  9. REMOVE BACK DOOR SERVICE HOLE COVER RH (w/ Power Back Door)
    1. Move the back door to a half-open position so that the hole in the center of the back door service hole cover RH is aligned lengthwise with the power back door rod.
      GTY772151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Power Back Door Rod
      *2 Hole of Back Door Service Hole Cover RH
      *a Back Door is Half-open

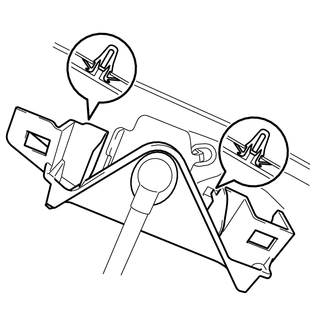

    2. Detach the 2 clips and separate the back door service hole cover RH, passing the power back door rod through the hole of the back door service hole cover RH.
      GTY761933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the back door is in a fully-open position, the power back door rod will interfere with the hole of the back door service hole cover RH, so do not perform this operation with the back door in a fully open position.

      HINT:

      If any of the clips have remained on the back door, remove the clips from the back door and install them to the back door service hole cover RH.

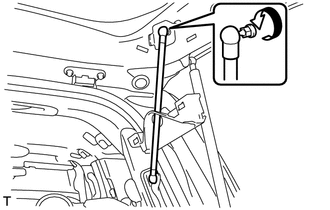

    3. Remove the ball joint bolt, power back door rod and back door stay plate.
      GTY772256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the back door service hole cover RH from the power back door rod.
  10. REMOVE BACK DOOR GARNISH

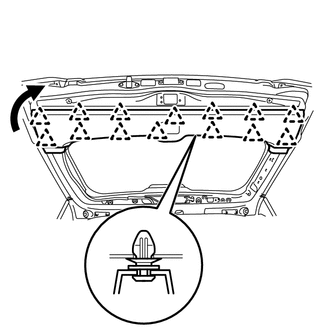

    1. Using a clip remover, detach the 14 clips and remove the back door garnish in the direction indicated by the arrow in the illustration.
      GTY552464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR HEADER SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 7

  12. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    See step  5

  13. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

    HINT:

    Use the same procedure described for the LH side.

  14. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 6

  15. REMOVE REAR WIPER MOTOR GROMMET

    Refer to PROCEDURE - Step 7

  16. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 8

  17. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 5

  18. REMOVE BACK DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 6

  19. REMOVE DOOR CONTROL SWITCH ASSEMBLY (w/ Power Back Door)

    See step  5

  20. REMOVE LICENSE PLATE LIGHT LENS

    Refer to PROCEDURE - Step 1 [08/2015 - 08/2018] , or refer to PROCEDURE - Step 5 [08/2018 - ]

  21. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  1

  22. REMOVE REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)

    Refer to PROCEDURE - Step 5

  23. REMOVE LIFT GATE WEATHERSTRIP

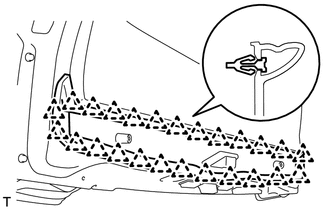

    1. Detach the 25 clips and remove the lift gate weatherstrip.
      GTY550998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not pull strongly on the lift gate weatherstrip as it may tear.

  24. REMOVE CUSHION
    1. Remove the 2 cushions.
      GTY585339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE LOWER BACK DOOR STOPPER
    1. Remove the bolt and lower back door stopper.
      GTY538982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  27. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  28. REMOVE BACK DOOR OUTSIDE GARNISH SUBASSEMBLY

    Refer to PROCEDURE - Step 3

  29. REMOVE BACK DOOR GLASS CHANNEL LH (w/ Power Back Door)

    Refer to PROCEDURE - Step 7

  30. REMOVE BACK DOOR GLASS CHANNEL RH (w/ Power Back Door)

    HINT:

    Use the same procedure described for the LH side.

  31. REMOVE REAR SPOILER SUBASSEMBLY (w/ Rear Spoiler)
    1. Remove the rear spoiler subassembly (Refer to REMOVAL [08/2017 - ] ).
  32. REMOVE REAR WASHER NOZZLE

    Refer to PROCEDURE - Step 3

  33. REMOVE BACK DOOR STAY ASSEMBLY LH

    See step  1

  34. REMOVE BACK DOOR STAY ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  35. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE

    Refer to PROCEDURE - Step 11 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]

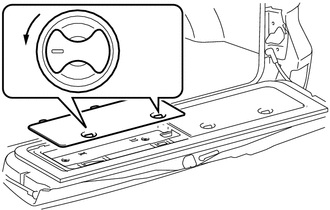

  36. REMOVE BACK DOOR TRIM COVER LH
    1. Remove the back door trim cover LH as shown in the illustration.
      GTY382101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE BACK DOOR TRIM COVER RH

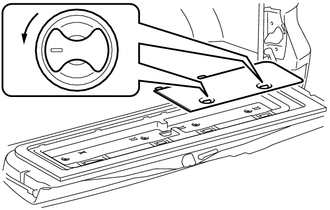

    1. Remove the back door trim cover RH as shown in the illustration.
      GTY366873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

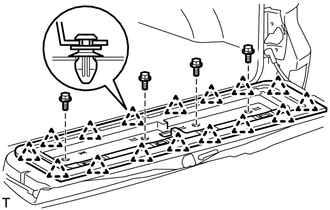

    1. Remove the 4 bolts.
      GTY610950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 16 clips and remove the back door trim panel assembly.
  39. REMOVE REAR BUMPER COVER
    1. Remove the bumper cover (Refer to REMOVAL [08/2016 - ] ).
  40. REMOVE SPARE TIRE

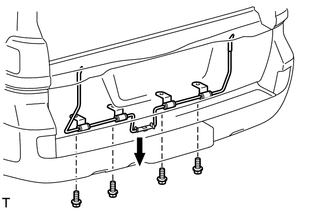

  41. REMOVE LOWER BACK DOOR TORSION BAR ASSEMBLY
    1. Remove the 4 bolts and lower back door torsion bar assembly.
      GTY227730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE BACK DOOR TORSION BAR GUIDE
    1. Detach the 2 claws and remove the back door torsion bar guide.
      GTY611054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY
    1. Remove the screw and back door inside handle.
      GTY757136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Back Door Handle Grommet
    2. Remove the back door handle grommet.
  44. REMOVE LOWER TAIL GATE LOCK ASSEMBLY RH
    1. w/o Power Back Door:

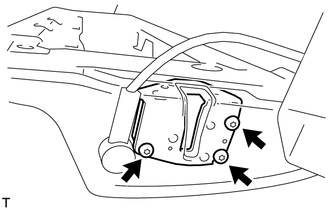

      1. Using a T30 "TORX" wrench, remove the 3 screws and lower tail gate lock assembly RH.
        GTY578759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the cable from the lower tail gate lock assembly RH.
        GTY115801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Power Back Door:

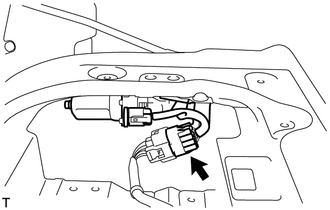

      1. Disconnect the connector.
        GTY675623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

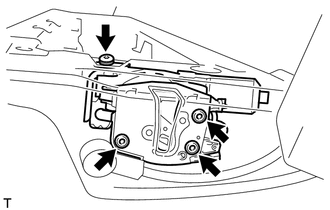

      2. Using a T30 "TORX" wrench, remove the 4 screws and lower tail gate lock assembly RH.
        GTY750898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE BACK DOOR REMOTE CONTROL ASSEMBLY
    1. w/o Power Back Door:
      1. Remove the 2 screws.
        GTY610970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the left side cable.
        GTY116045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the back door remote control assembly.
    2. w/ Power Back Door:
      1. Disconnect the connector.
        GTY685644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 screws and back door remote control assembly.
  46. REMOVE LOWER TAIL GATE LOCK ASSEMBLY LH
    1. w/o Power Back Door:

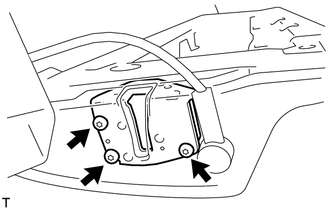

      1. Using a T30 "TORX" wrench, remove the 3 screws and lower tail gate lock assembly LH.
        GTY539525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Power Back Door:

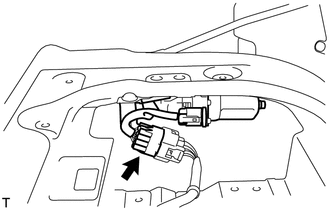

      1. Disconnect the connector.
        GTY672090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

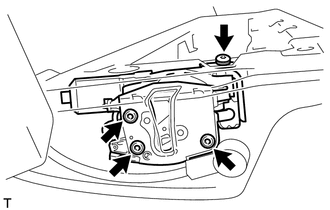

      2. Using a T30 "TORX" wrench, remove the 4 screws and lower tail gate lock assembly LH.
        GTY750888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE TAIL GATE STAY SUBASSEMBLY LH
    1. Using a T40 "TORX" socket, remove the 2 screws and tail gate stay subassembly LH.
      GTY610753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE TAIL GATE STAY SUBASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  49. REMOVE BACK DOOR DAMPER ASSEMBLY (w/ Power Back Door)
    1. Remove the bolt and back door damper assembly.
      GTY132418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
