Removal [08/2015 - ]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2017] Refer to PROCEDURE - Step 5 [08/2017 - ]

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2017] Refer to PROCEDURE - Step 7 [08/2017 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2017] Refer to PROCEDURE - Step 8 [08/2017 - ]

  4. REMOVE BACK DOOR GARNISH

    Refer to PROCEDURE - Step 9 [08/2015 - 08/2017] Refer to PROCEDURE - Step 10 [08/2017 - ]

  5. REMOVE REAR WIPER ARM HEAD CAP
    NOTE:

    Do not remove the rear wiper arm head cap except when replacing it.

    1. Detach the 2 claws and slide the rear wiper arm head cap.
      GTY559799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Raise the rear wiper arm head cap.
      GTY559798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 guides and remove the rear wiper arm head cap.
      GTY559802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
    1. Detach the 2 claws and slide the rear wiper arm head cap.
      GTY559799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Raise the rear wiper arm head cap.
      GTY559798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut and rear wiper arm and blade assembly.
      GTY559796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR WIPER MOTOR GROMMET
    1. Remove the rear wiper motor grommet.
      GTY133614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR WIPER MOTOR ASSEMBLY

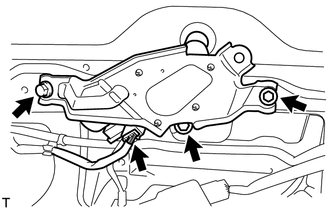

    1. Disconnect the connector.
      GTY611317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and rear wiper motor assembly.
