Removal [08/2015 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2017] Refer to PROCEDURE - Step 5 [08/2017 - ]

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2017] Refer to PROCEDURE - Step 7 [08/2017 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2017] Refer to PROCEDURE - Step 8 [08/2017 - ]

  4. REMOVE BACK DOOR GARNISH

    Refer to PROCEDURE - Step 9 [08/2015 - 08/2017] Refer to PROCEDURE - Step 10 [08/2017 - ]

  5. REMOVE REAR LIGHT ASSEMBLY LH
    NOTE:

    If the rear light assembly LH has removed, replace the rear light gasket LH and rear light packing with a new one.

    1. Put protective tape around the rear light assembly LH.
      GTY599735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Protective Tape

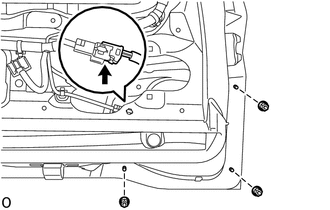

    2. Disconnect the connector.
      GTY548611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 nuts.
    4. Pull the rear light assembly LH toward the rear of the vehicle to detach the pin to remove it.
      GTY548610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
