Removal [08/2018 - ]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 5

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 7

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 8

  4. REMOVE BACK DOOR GARNISH

    Refer to PROCEDURE - Step 10

  5. REMOVE LICENSE PLATE LIGHT ASSEMBLY LH
    1. Detach the claw.
      GTY902597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY940367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Pull the license plate light assembly LH in the direction indicated by the arrow to detach the claw and remove it.

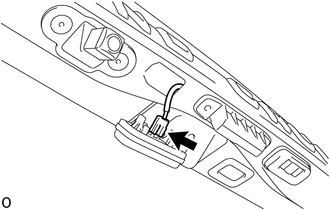

    3. Disconnect the connector.
      GTY897372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
