Removal [08/2019 - ]: Procedure
- OPEN BACK DOOR
- Open the back door before disconnecting the cable from the negative (-) battery terminal, as some procedures are performed with the back door open.NOTE:
The back door cannot be opened after the cable is disconnected from the negative (-) battery terminal.
- Open the back door before disconnecting the cable from the negative (-) battery terminal, as some procedures are performed with the back door open.
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.
Refer to PRECAUTION [08/2015 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [08/2017 - ]
- REMOVE TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)
- Remove the tonneau cover assembly.
- REMOVE REAR NO. 2 SEAT ASSEMBLY LH (w/ Rear No. 2 Seat)
Refer to REMOVAL [08/2015 - ]
- REMOVE REAR NO. 2 SEAT ASSEMBLY RH (w/ Rear No. 2 Seat)
HINT:
Use the same procedures described for the LH side.
- REMOVE FRONT DOOR SCUFF PLATE LH
- Detach the 7 claws and 4 clips, and remove the front door scuff plate LH.
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR STEP COVER
HINT:
Use the same procedure for both rear step covers.
- REMOVE REAR DOOR SCUFF PLATE LH
- Remove the screw.
- Detach the 3 claws and 4 clips, and remove the rear door scuff plate LH.
- REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR FLOOR MAT REAR SUPPORT PLATE
- Detach the 6 clips and remove the rear floor mat support plate.
- REMOVE ASSIST GRIP SUBASSEMBLY
HINT:
Use the same procedure for both assist grip sub-assemblies.
- REMOVE FRONT PILLAR GARNISH LH
- Detach the clip and 3 guides.
- Disconnect the speaker connector and then remove the front pillar garnish LH.
*1 Curtain Shield Airbag Assembly LH *a Protective Cover Adhesive Tape Protect the curtain shield airbag.
- Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in the illustration.NOTE:
Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
- Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in the illustration.
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedures described for the LH side.
- REMOVE CENTER PILLAR GARNISH COVER LH
HINT:
- When removing the center pillar garnish cover LH, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
- After moving the front seat, disconnect the cable from the negative (-) battery terminal.
- REMOVE CENTER PILLAR GARNISH COVER RH
HINT:
Use the same procedures described for the LH side.
- REMOVE CENTER LOWER PILLAR GARNISH LH
HINT:
- When removing the center lower pillar garnish LH, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
- After moving the front seat, disconnect the cable from the negative (-) battery terminal.
- REMOVE CENTER LOWER PILLAR GARNISH RH
HINT:
- When removing the center lower pillar garnish RH, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
- After moving the front seat, disconnect the cable from the negative (-) battery terminal.
- REMOVE REAR ASSIST GRIP ASSEMBLY
HINT:
Use the same procedure for both rear assist grip assemblies.
- REMOVE CENTER PILLAR GARNISH LH
- Remove the bolt.
- Detach the 2 clips and 2 guides.
- Pass the seat belt anchor through the center pillar garnish, and remove the center pillar garnish LH.
- REMOVE CENTER PILLAR GARNISH RH
HINT:
Use the same procedures described for the LH side.
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
HINT:
Use the same procedure for both No. 1 luggage compartment trim hooks.
- REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Rear No. 2 Seat)
HINT:
Use the same procedure for both No. 1 tonneau cover holder caps.
- Detach the 2 claws and remove the No. 1 tonneau cover holder cap.
- REMOVE REAR SEAT COVER CAP (w/ Rear No. 2 Seat)
HINT:
Use the same procedure for both rear seat cover caps.
- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
HINT:
When removing the front quarter trim panel assembly LH, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.
- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
HINT:
When removing the front quarter trim panel assembly RH, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.
Detach the 3 claws and remove the outer lap belt anchor cover.
Remove the bolt and rear No. 1 seat belt anchor.
w/ Rear No. 2 Seat:
- Detach the 3 claws and remove the outer lap belt anchor cover.
- Remove the bolt and rear No. 2 seat belt anchor.
- Remove the screw, clip and bolt.

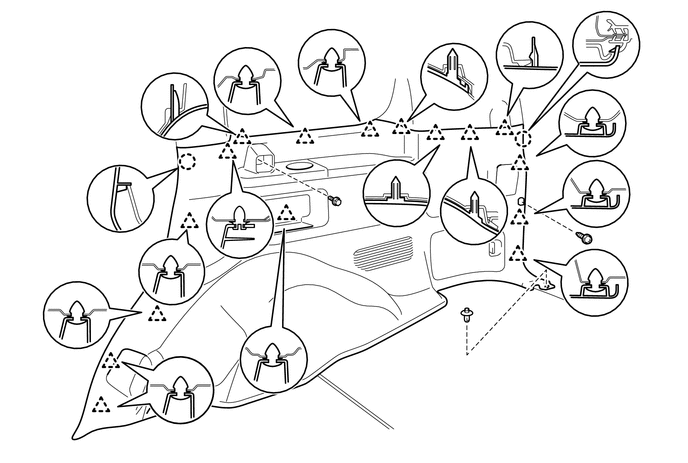

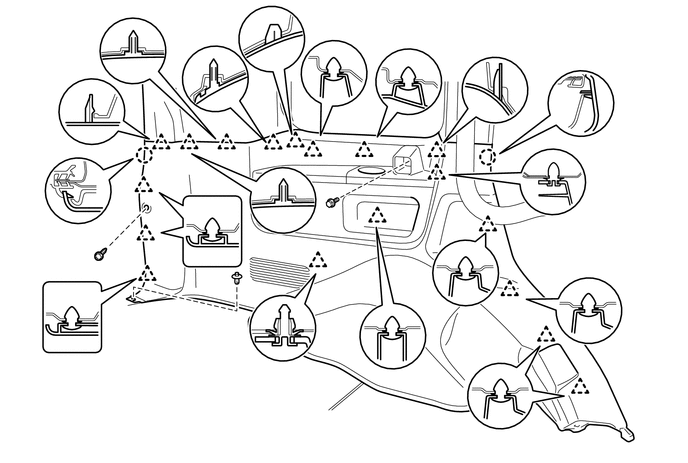

- Detach the 16 clips and 2 claws.
- Disconnect the thermistor connector and rear seat lock control lever cable, and then remove the front quarter trim panel assembly RH.
- w/o Rear No. 2 Seat:
- REMOVE REAR FRONT QUARTER TRIM GARNISH LH
- Remove the screw.
- Detach the clip and 2 guides.
- Pass the seat belt anchor through the rear front quarter trim garnish LH, and remove the rear front quarter trim garnish LH.
- REMOVE REAR FRONT QUARTER TRIM GARNISH RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR UPPER PILLAR GARNISH LH
- REMOVE CENTER BACK DOOR GARNISH (w/ Power Back Door)
Refer to PROCEDURE - Step 5
- REMOVE BACK DOOR SIDE GARNISH RH (w/ Power Back Door)
Refer to PROCEDURE - Step 8
- REMOVE BACK DOOR SERVICE HOLE COVER RH (w/ Power Back Door)
Refer to PROCEDURE - Step 9
- REMOVE REAR UPPER PILLAR GARNISH RH
- REMOVE MAP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 ROOM LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE NO. 3 ROOM LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE VISOR BRACKET COVER
HINT:
Use the same procedure for both visor bracket covers.
- REMOVE VISOR ASSEMBLY LH
- Remove the 2 screws and visor assembly LH.
- REMOVE VISOR ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE VISOR HOLDER
HINT:
Use the same procedure for both visor holders.
- REMOVE CENTER VISOR ASSEMBLY LH
- REMOVE CENTER VISOR ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Pre-collision System)
Refer to PROCEDURE - Step 1
- REMOVE RAIN SENSOR COVER (w/ Rain Sensor)
Refer to PROCEDURE - Step 1
- REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)
Refer to PROCEDURE - Step 2
- REMOVE SEAT BELT ANCHOR COVER
- Detach the 4 clips and 4 guides, and remove the seat belt anchor cover.
- REMOVE ASSIST GRIP ASSEMBLY
HINT:
Use the same procedure for both assist grip assemblies.

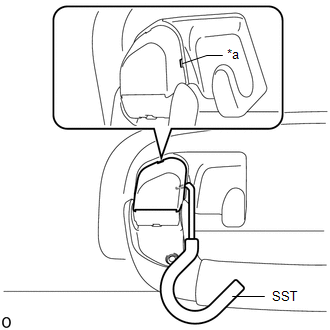

*a Cutout Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
- SST: 09813-00010
NOTE:To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.
HINT:
Use the same procedure for the LH side and RH side.
- Pull SST as shown in the illustration to detach the claw.NOTE:
To prevent the assist grip subassembly from being damaged, make sure to only pull SST as shown in the illustration.
HINT:
- Use the same procedure for the claw on the other side of the assist grip cover LH.
- Use the same procedure for the LH side and RH side.
*a 30 to 45° - Remove the assist grip cover LH.
HINT:
Use the same procedure for the LH side and RH side.
- Detach the 2 clips as shown in the illustration to remove the assist grip assembly.
- Remove the 2 clips from the vehicle body.
- REMOVE NO. 2 ASSIST GRIP ASSEMBLY LH
*a Cutout - Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
- SST: 09813-00010
NOTE:To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.
HINT:
Use the same procedure for the LH side and RH side.
- Pull SST as shown in the illustration to detach the claw.NOTE:
To prevent the assist grip subassembly from being damaged, make sure to only pull SST as shown in the illustration.
HINT:
- Use the same procedure for the claw on the other side of the assist grip cover LH.
- Use the same procedure for the LH side and RH side.
*a 30 to 45° - Remove the assist grip cover LH.
HINT:
Use the same procedure for the LH side and RH side.
- Detach the 2 clips as shown in the illustration to remove the No. 2 assist grip assembly LH.
- Remove the 2 clips from the vehicle body.
- Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
- REMOVE NO. 2 ASSIST GRIP ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE 3RD SEAT ASSIST GRIP ASSEMBLY
HINT:
Use the same procedure for both 3rd seat assist grip assemblies.
*a Cutout Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
- SST: 09813-00010
NOTE:To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.
HINT:
Use the same procedure for the LH side and RH side.
- Pull SST as shown in the illustration to detach the claw.NOTE:
To prevent the assist grip subassembly from being damaged, make sure to only pull SST as shown in the illustration.
HINT:
- Use the same procedure for the claw on the other side of the assist grip cover LH.
- Use the same procedure for the LH side and RH side.
*a 30 to 45° - Remove the assist grip cover LH.
HINT:
Use the same procedure for the LH side and RH side.
- Detach the 2 clips as shown in the illustration to remove the 3rd seat assist grip assembly.
- Remove the 2 clips from the vehicle body.
- REMOVE ROOF HEADLINING ASSEMBLY
HINT:
- When removing the roof headlining assembly, connect the cable to the negative (-) battery terminal and move the front seat and No. 1 rear seat to the position shown in the illustration.
- After moving the seats, disconnect the cable from the negative (-) battery terminal.
w/o Pre-collision System:
Disconnect the connector.
w/ Rain Sensor:
Disconnect the connector.
- w/ Pre-collision System:
Disconnect the connector.
*1 Washer Hose *a Front Left Side Disconnect the 3 roof wire connectors and washer hose.
- Detach the 4 clamps.
*a Front Right Side Remove the bolt.
- Disconnect the antenna cord connector and detach the 2 clamps.
*a Rear Right Side Disconnect the antenna cord connector.
*a Rear Left Side Disconnect the washer hose.
- Detach the 12 claws, 2 clips, 2 guides and 16 fasteners.
*a Guide - - Remove the roof headlining assembly from the rear of the vehicle as shown in the illustration.
NOTE:Be careful not to damage the roof headlining assembly when taking it out.
- REMOVE FRONT ROOF SIDE RAIL GARNISH LH
*a Cut Off Position - Detach the 3 clips.
- Cut off the 3 clips and remove the front roof side rail garnish LH.
- Remove the 3 clips from the vehicle body.
- REMOVE FRONT ROOF SIDE RAIL GARNISH RH
HINT:
Use the same procedures described for the LH side.
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
- Remove the front door opening trim weatherstrip LH.
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
- Remove the rear door opening trim weatherstrip LH.
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedures described for the LH side.
- REMOVE BACK DOOR WEATHERSTRIP
- Remove the back door weatherstrip.
- REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
Protective Tape - Put protective tape around the front door scuff plate outside LH.
- Detach the 4 clips and remove the front door scuff plate outside LH.
- REMOVE FRONT DOOR SCUFF PLATE OUTSIDE RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR DOOR SCUFF PLATE OUTSIDE LH
Protective Tape - Put protective tape around the rear door scuff plate outside LH.
- Detach the 3 clips and remove the rear door scuff plate outside LH.
- REMOVE REAR DOOR SCUFF PLATE OUTSIDE RH
HINT:
Use the same procedures described for the LH side.
- REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUBASSEMBLY LH
- Detach the 6 claws of the front shoulder belt anchor plate subassembly LH, and slide the front shoulder belt anchor plate subassembly LH in the direction of the arrow to remove it.
- REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUBASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR SHOULDER BELT ANCHOR PLATE SUBASSEMBLY LH
- Detach the 6 claws and remove the rear shoulder belt anchor plate subassembly LH.
- REMOVE REAR SHOULDER BELT ANCHOR PLATE SUBASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE ROOF SIDE INNER GARNISH COVER LH

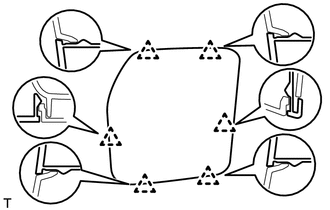

- Detach the 7 claws and remove the roof side inner garnish cover LH.
- REMOVE ROOF SIDE INNER GARNISH COVER RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR NO. 1 SEAT SHOULDER BELT HANGER
HINT:
Use the same procedure for both rear No. 1 seat shoulder belt hangers.
- REMOVE REAR NO. 2 SEAT SHOULDER BELT HANGER LH (w/ Rear No. 2 Seat)
*a Spring Nut - Remove the 2 spring nuts and rear No. 2 seat shoulder belt hanger.
- REMOVE REAR NO. 2 SEAT SHOULDER BELT HANGER RH (w/ Rear No. 2 Seat)
HINT:
Use the same procedures described for the LH side.
- REMOVE QUARTER TRIM COVER SUBASSEMBLY LH
- REMOVE QUARTER TRIM COVER SUBASSEMBLY RH
- Remove the 7 screws.
- Detach the 4 claws and remove the quarter trim cover subassembly RH.

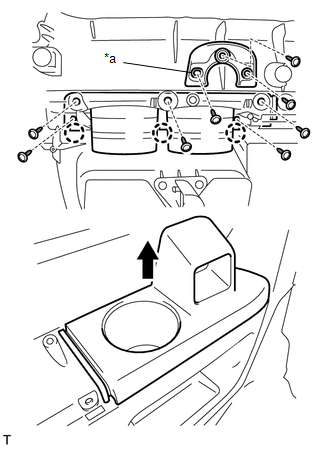

- REMOVE NO. 2 CUP HOLDER (w/ Rear No. 2 Seat)
- Remove the 5 screws.
- Detach the 3 claws and remove the No. 2 cup holder.
- REMOVE NO. 1 CUP HOLDER (w/ Rear No. 2 Seat)
- Remove the 5 screws.
- Detach the 3 claws and remove the No. 1 cup holder.
- REMOVE TONNEAU COVER HOLDER BRACKET LH (w/o Rear No. 2 Seat)
*a Front Quarter Trim Base - Remove the 8 screws.
- Detach the 3 claws and remove the tonneau cover holder bracket LH and front quarter trim base.
- REMOVE TONNEAU COVER HOLDER BRACKET RH (w/o Rear No. 2 Seat)
HINT:
Use the same procedures described for the LH side.
- REMOVE NO. 1 SIDE TRIM BASE COVER LH
- Detach the 4 claws and remove the No. 1 side trim base cover LH.
- REMOVE NO. 1 SIDE TRIM BASE COVER RH
- REMOVE NO. 2 SIDE TRIM BASE COVER LH
- Detach the 4 claws and remove the No. 2 side trim base cover LH.
- REMOVE NO. 2 SIDE TRIM BASE COVER RH
HINT:
Use the same procedures described for the LH side.
- REMOVE TONNEAU COVER HANGER LH (w/o Rear No. 2 Seat)
*a Rear Quarter Trim Base - Remove the 2 screws, tonneau cover hanger LH and rear quarter trim base.
- REMOVE TONNEAU COVER HANGER RH (w/o Rear No. 2 Seat)
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR SEAT LOCK CONTROL LEVER SUBASSEMBLY LH (w/ Rear No. 2 Seat)
Refer to PROCEDURE - Step 12
- REMOVE REAR SEAT LOCK CONTROL LEVER SUBASSEMBLY RH (w/ Rear No. 2 Seat)
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR NO. 2 SEAT COVER BEZEL (w/ Rear No. 2 Seat)
- Detach the 6 clips and remove the rear No. 2 seat cover bezel.
- REMOVE REAR NO. 1 SEAT COVER BEZEL (w/ Rear No. 2 Seat)
HINT:
Use the same procedures described for the LH side.
- REMOVE QUARTER TRIM COVER LH (w/o Rear No. 2 Seat)
- Detach the 6 clips and remove the quarter trim cover LH.
- REMOVE QUARTER TRIM COVER RH (w/o Rear No. 2 Seat)
HINT:
Use the same procedures described for the LH side.
- REMOVE QUARTER TRIM LID SUBASSEMBLY RH
- Remove the quarter trim lid subassembly RH.
