Home >> Toyota >> 2021 >> Land Cruiser Base >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Panels / Trim (Service Information) >> Roof Headlining >> Removal [08/2017 - 08/2019] >> Procedure

Removal [08/2017 - 08/2019]: Procedure

  1. OPEN BACK DOOR
    1. Open the back door before disconnecting the cable from the negative (-) battery terminal, as some procedures are performed with the back door open.
      NOTE:

      The back door cannot be opened after the cable is disconnected from the negative (-) battery terminal.

  2. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [08/2015 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2017 - ]

  4. REMOVE REAR NO. 2 SEAT ASSEMBLY LH

    Refer to REMOVAL [08/2015 - ]

  5. REMOVE REAR NO. 2 SEAT ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  6. REMOVE FRONT DOOR SCUFF PLATE LH
    GTY551179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 7 claws and 4 clips, and remove the front door scuff plate LH.
  7. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  8. REMOVE REAR STEP COVER

    HINT:

    Use the same procedure for both rear step covers.

    1. GTY611251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 2 claws and remove the rear step cover.

  9. REMOVE REAR DOOR SCUFF PLATE LH
    GTY538597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the screw.
    2. Detach the 3 claws and 4 clips, and remove the rear door scuff plate LH.
  10. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  11. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE
    GTY538596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 6 clips and remove the rear floor mat support plate.
  12. REMOVE ASSIST GRIP SUBASSEMBLY

    HINT:

    Use the same procedure for both assist grip sub-assemblies.

    1. GTY597518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 4 claws and remove the 2 assist grip plugs.

    2. GTY611049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts.

    3. Detach the 2 claws and remove the assist grip subassembly.
  13. REMOVE FRONT PILLAR GARNISH LH
    GTY611388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the clip and 3 guides.
    2. Disconnect the speaker connector and then remove the front pillar garnish LH.

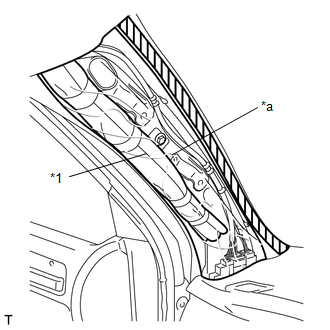

    3. GTY757242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Curtain Shield Airbag Assembly LH
      *a Protective Cover
      Adhesive Tape

      Protect the curtain shield airbag.

      1. Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

  14. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  15. REMOVE CENTER PILLAR GARNISH COVER LH

    HINT:

    • When removing the center pillar garnish cover LH, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
    • After moving the front seat, disconnect the cable from the negative (-) battery terminal.
    1. GTY611231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 2 clips and 2 guides, and remove the center pillar garnish cover LH.

  16. REMOVE CENTER PILLAR GARNISH COVER RH

    HINT:

    Use the same procedures described for the LH side.

  17. REMOVE CENTER LOWER PILLAR GARNISH LH

    HINT:

    • When removing the center lower pillar garnish LH, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
    • After moving the front seat, disconnect the cable from the negative (-) battery terminal.
    1. GTY597507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and seat belt anchor.

    2. GTY538595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 2 claws and 7 clips, and remove the center lower pillar garnish LH.

  18. REMOVE CENTER LOWER PILLAR GARNISH RH

    HINT:

    • When removing the center lower pillar garnish RH, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
    • After moving the front seat, disconnect the cable from the negative (-) battery terminal.
    1. GTY553846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector.

    2. Remove the bolt and seat belt anchor.
    3. GTY610882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 2 claws and 7 clips, and remove the center lower pillar garnish RH.

  19. REMOVE REAR ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure for both rear assist grip assemblies.

    1. GTY597508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 4 claws and remove the 2 assist grip plugs.

    2. GTY610854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts.

    3. Detach the 2 claws and remove the rear assist grip assembly.
  20. REMOVE CENTER PILLAR GARNISH LH
    GTY538633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt.
    2. Detach the 2 clips and 2 guides.
    3. Pass the seat belt anchor through the center pillar garnish, and remove the center pillar garnish LH.
  21. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  22. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    HINT:

    Use the same procedure for both No. 1 luggage compartment trim hooks.

    1. GTY240898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the luggage compartment trim hook by turning it clockwise.

  23. REMOVE REAR SEAT COVER CAP

    HINT:

    Use the same procedure for both rear seat cover caps.

    1. GTY744441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Using a screwdriver, detach the 3 claws and remove the rear seat cover cap.

      HINT:

      Tape the screwdriver tip before use.

  24. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
    GTY561733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    When removing the front quarter trim panel assembly LH, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

    1. GTY538634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 3 claws and remove the outer lap belt anchor cover.

    2. GTY610945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and rear No. 1 seat belt anchor.

    3. GTY611136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and rear No. 2 seat belt anchor.

    4. Remove the screw, clip and bolt.
    5. Detach the 18 clips and 2 claws.
    6. Disconnect the thermistor connector, power outlet socket connector and rear seat lock control lever cable, and then remove the front quarter trim panel assembly LH.
      GTY538791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
    GTY602663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    When removing the front quarter trim panel assembly RH, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

    1. GTY538636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 3 claws and remove the outer lap belt anchor cover.

    2. GTY538621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and rear No. 1 seat belt anchor.

    3. GTY538622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 3 claws and remove the outer lap belt anchor cover.

    4. GTY610984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and rear No. 2 seat belt anchor.

    5. Remove the screw, clip and bolt.
    6. Detach the 16 clips and 2 claws.
    7. Disconnect the thermistor connector and rear seat lock control lever cable, and then remove the front quarter trim panel assembly RH.
      GTY538788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR FRONT QUARTER TRIM GARNISH LH
    GTY538792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the screw.
    2. Detach the clip and 2 guides.
    3. Pass the seat belt anchor through the rear front quarter trim garnish LH, and remove the rear front quarter trim garnish LH.
  27. REMOVE REAR FRONT QUARTER TRIM GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  28. REMOVE REAR UPPER PILLAR GARNISH LH
    GTY751591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Protective Tape
    1. Using a screwdriver, detach the 2 claws and open the seat belt shoulder anchor cover.

      HINT:

      Tape the screwdriver tip before use.

    2. GTY611364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and seat belt shoulder anchor.

    3. GTY597554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 5 clips and remove the rear upper pillar garnish LH.

  29. REMOVE CENTER BACK DOOR GARNISH (w/ Power Back Door)

    Refer to PROCEDURE - Step 5

  30. REMOVE BACK DOOR SIDE GARNISH RH (w/ Power Back Door)

    Refer to PROCEDURE - Step 8

  31. REMOVE BACK DOOR SERVICE HOLE COVER RH (w/ Power Back Door)

    Refer to PROCEDURE - Step 9

  32. REMOVE REAR UPPER PILLAR GARNISH RH
    1. Using a screwdriver, detach the 2 claws and open the seat belt shoulder anchor cover.

      HINT:

      Tape the screwdriver tip before use.

      GTY770953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. GTY686009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and seat belt shoulder anchor.

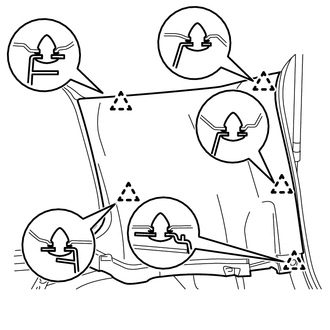

    3. GTY652681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/o Power Back Door:

      1. Detach the 5 clips and remove the rear upper pillar garnish RH.

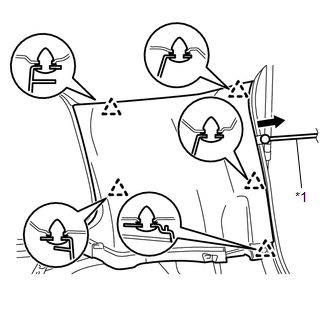

    4. GTY768083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Power Back Door Rod

      w/ Power Back Door:

      1. Detach the 5 clips.
      2. Pass the power back door rod through the rear upper pillar garnish, and remove the rear upper pillar garnish RH.
  33. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  34. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  35. REMOVE NO. 3 ROOM LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  36. REMOVE VISOR BRACKET COVER

    HINT:

    Use the same procedure for both visor bracket covers.

    1. GTY228375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 4 claws and remove the visor bracket cover.

  37. REMOVE VISOR ASSEMBLY LH
    GTY228377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws and visor assembly LH.
  38. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  39. REMOVE VISOR HOLDER

    HINT:

    Use the same procedure for both visor holders.

    1. GTY767572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°

      Turn the visor holder approximately 45° and pull it out as shown in the illustration.

    2. Detach the 2 claws and remove the visor holder.
  40. REMOVE CENTER VISOR ASSEMBLY LH
    1. Using a screwdriver, pry off the cover to detach the 2 clips and remove the center visor assembly LH.
      GTY758901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cover
      Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  41. REMOVE CENTER VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  42. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Pre-collision System)

    Refer to PROCEDURE - Step 1

  43. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

  44. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 1

  45. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  46. REMOVE SEAT BELT ANCHOR COVER
    GTY611609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 clips and 4 guides, and remove the seat belt anchor cover.
  47. REMOVE ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure for both assist grip assemblies.

    1. GTY757877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Detach the 2 clips and remove the assist grip assembly.
    3. Remove the 2 clips from the vehicle body.
  48. REMOVE NO. 2 ASSIST GRIP ASSEMBLY LH

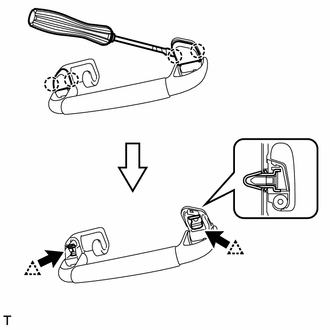

    GTY761095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Protective Tape
    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Detach the 2 clips and remove the No. 2 assist grip assembly LH.
    3. Remove the 2 clips from the vehicle body.
  49. REMOVE NO. 2 ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  50. REMOVE 3RD SEAT ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure for both 3rd seat assist grip assemblies.

    1. GTY759918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Detach the 2 clips and remove the 3rd seat assist grip assembly.
    3. Remove the 2 clips from the vehicle body.
  51. REMOVE ROOF HEADLINING ASSEMBLY
    GTY553847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    • When removing the roof headlining assembly, connect the cable to the negative (-) battery terminal and move the front seat and No. 1 rear seat to the position shown in the illustration.
    • After moving the seats, disconnect the cable from the negative (-) battery terminal.
    1. GTY544318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/o Pre-collision System:

      Disconnect the connector.

    2. GTY544319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/ Rain Sensor:

      Disconnect the connector.

    3. w/ Pre-collision System:
      1. w/o Camera Heater:
        GTY544316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Disconnect the 2 connectors.

      2. w/ Camera Heater:
        GTY691495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Disconnect the 3 connectors.

    4. GTY538796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector.

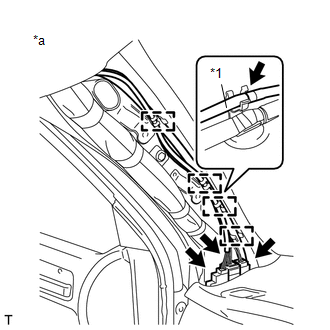

    5. GTY773338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Washer Hose
      *a Front Left Side

      Disconnect the 3 roof wire connectors and washer hose.

    6. Detach the 4 clamps.
    7. GTY760307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front Right Side

      Remove the bolt.

    8. Disconnect the antenna cord connector and detach the 2 clamps.
    9. GTY764396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Right Side

      Disconnect the antenna cord connector.

    10. GTY763842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Left Side

      Disconnect the washer hose.

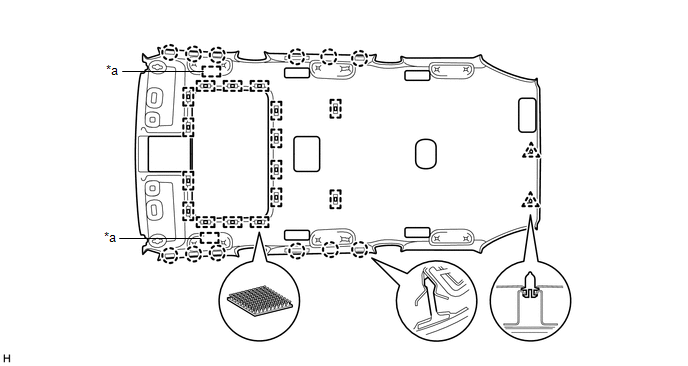

    11. Detach the 12 claws, 2 clips, 2 guides and 16 fasteners.
      GTY761842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide - -
    12. GTY115969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the roof headlining assembly from the rear of the vehicle as shown in the illustration.

      NOTE:

      Be careful not to damage the roof headlining assembly when taking it out.

  52. REMOVE FRONT ROOF SIDE RAIL GARNISH LH
    GTY765541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Cut Off Position
    1. Detach the 3 clips.
    2. Cut off the 3 clips and remove the front roof side rail garnish LH.
    3. Remove the 3 clips from the vehicle body.
  53. REMOVE FRONT ROOF SIDE RAIL GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  54. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    GTY115911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the front door opening trim weatherstrip LH.
  55. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedures described for the LH side.

  56. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    GTY115912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the rear door opening trim weatherstrip LH.
  57. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedures described for the LH side.

  58. REMOVE BACK DOOR WEATHERSTRIP
    GTY141995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the back door weatherstrip.
  59. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH

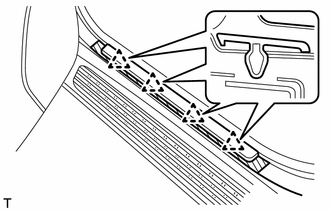

    GTY770590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Protective Tape
    1. Put protective tape around the front door scuff plate outside LH.
    2. Detach the 4 clips and remove the front door scuff plate outside LH.
  60. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

  61. REMOVE REAR DOOR SCUFF PLATE OUTSIDE LH

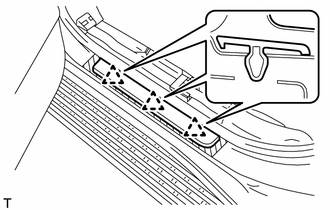

    GTY748494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Protective Tape
    1. Put protective tape around the rear door scuff plate outside LH.
    2. Detach the 3 clips and remove the rear door scuff plate outside LH.
  62. REMOVE REAR DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

  63. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUBASSEMBLY LH
    GTY115901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 6 claws of the front shoulder belt anchor plate subassembly LH, and slide the front shoulder belt anchor plate subassembly LH in the direction of the arrow to remove it.
  64. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUBASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  65. REMOVE REAR SHOULDER BELT ANCHOR PLATE SUBASSEMBLY LH
    GTY610883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 6 claws and remove the rear shoulder belt anchor plate subassembly LH.
  66. REMOVE REAR SHOULDER BELT ANCHOR PLATE SUBASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  67. REMOVE ROOF SIDE INNER GARNISH COVER LH
    GTY611685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 7 claws and remove the roof side inner garnish cover LH.
  68. REMOVE ROOF SIDE INNER GARNISH COVER RH

    HINT:

    Use the same procedures described for the LH side.

  69. REMOVE REAR NO. 1 SEAT SHOULDER BELT HANGER

    HINT:

    Use the same procedure for both rear No. 1 seat shoulder belt hangers.

    1. GTY758611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Spring Nut

      Remove the 2 spring nuts and rear No. 1 seat shoulder belt hanger.

  70. REMOVE REAR NO. 2 SEAT SHOULDER BELT HANGER LH
    GTY773696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Spring Nut
    1. Remove the 2 spring nuts and rear No. 2 seat shoulder belt hanger.
  71. REMOVE REAR NO. 2 SEAT SHOULDER BELT HANGER RH

    HINT:

    Use the same procedures described for the LH side.

  72. REMOVE QUARTER TRIM COVER SUBASSEMBLY LH
    GTY562288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 8 screws and duct.
    2. GTY122974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 7 screws.

    3. Detach the 4 claws and remove the quarter trim cover subassembly LH.
  73. REMOVE QUARTER TRIM COVER SUBASSEMBLY RH
    GTY122973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 7 screws.
    2. Detach the 4 claws and remove the quarter trim cover subassembly RH.
  74. REMOVE NO. 2 CUP HOLDER
    GTY115898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 5 screws.
    2. Detach the 3 claws and remove the No. 2 cup holder.
  75. REMOVE NO. 1 CUP HOLDER
    GTY122979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 5 screws.
    2. Detach the 3 claws and remove the No. 1 cup holder.
  76. REMOVE NO. 1 SIDE TRIM BASE COVER LH
    GTY602787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 claws and remove the No. 1 side trim base cover LH.
  77. REMOVE NO. 1 SIDE TRIM BASE COVER RH
    GTY611374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 6 screws and duct.
    2. GTY588444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 4 claws and remove the No. 1 side trim base cover RH.

  78. REMOVE NO. 2 SIDE TRIM BASE COVER LH
    GTY562281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 claws and remove the No. 2 side trim base cover LH.
  79. REMOVE NO. 2 SIDE TRIM BASE COVER RH

    HINT:

    Use the same procedures described for the LH side.

  80. REMOVE REAR SEAT LOCK CONTROL LEVER SUBASSEMBLY LH

    Refer to PROCEDURE - Step 12

  81. REMOVE REAR SEAT LOCK CONTROL LEVER SUBASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  82. REMOVE REAR NO. 2 SEAT COVER BEZEL
    GTY538623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 6 clips and remove the rear No. 2 seat cover bezel.
  83. REMOVE REAR NO. 1 SEAT COVER BEZEL

    HINT:

    Use the same procedures described for the LH side.

  84. REMOVE QUARTER TRIM LID SUBASSEMBLY RH
    1. Remove the quarter trim lid subassembly RH.
scientia non olet · About LEMON Manuals
