Removal [08/2015 - ]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2017] Refer to PROCEDURE - Step 5 [08/2017 - ]

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2017] Refer to PROCEDURE - Step 7 [08/2017 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2017] Refer to PROCEDURE - Step 8 [08/2017 - ]

  4. REMOVE BACK DOOR GARNISH

    Refer to PROCEDURE - Step 9 [08/2015 - 08/2017] Refer to PROCEDURE - Step 10 [08/2017 - ]

  5. REMOVE REAR TELEVISION CAMERA ASSEMBLY

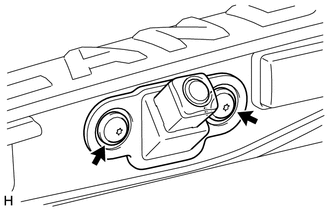

    1. Using a T30 "TORX" socket wrench, remove the 2 screws.
      GTY574701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

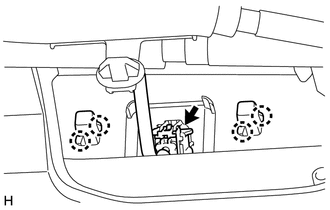

    2. Disconnect the connector.
      GTY574702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 grommet screws and remove the television camera assembly.
