Removal [08/2017 - ]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 5

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 7

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 8

  4. REMOVE BACK DOOR GARNISH

    Refer to PROCEDURE - Step 10

  5. REMOVE BACK DOOR LOCK COVER
    1. Detach the 4 claws and remove the cover.

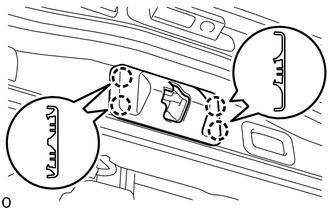

      GTY568911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE BACK DOOR LOCK ASSEMBLY
    1. w/o Power Back Door:

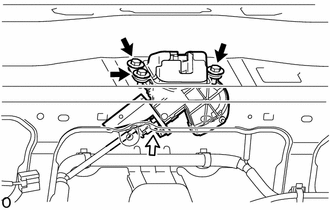

      GTY744863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
      1. Disconnect the connector.
      2. Remove the 3 bolts and back door lock assembly.
    2. w/ Power Back Door:

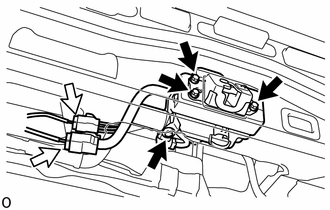

      GTY751113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
      1. Disconnect the 2 connectors.
      2. Remove the 4 bolts and back door lock assembly.
