Adjustment [08/2015 - ]: Procedure

  1. INSPECT HOOD SUB-ASSEMBLY

    See step  1

  2. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 18

  3. REMOVE FRONT BUMPER COVER (w/o Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - 08/2020] , or refer to PROCEDURE - Step 2 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 2 [08/2021 - ]

  4. REMOVE FRONT BUMPER COVER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 2 [08/2021 - ]

  5. ADJUST HOOD SUB-ASSEMBLY
    1. Adjust the hood position.
      1. Loosen the 4 hinge bolts on the hood sub-assembly.

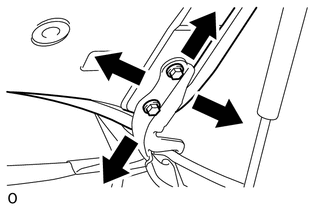

        GTY222208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Move the hood sub-assembly and adjust the clearance between the hood sub-assembly and front fender.
      3. Tighten the 4 hinge bolts on the hood sub-assembly after the adjustment.

        Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

    2. Adjust the height of the front end of the hood sub-assembly using the cushion rubbers.
      1. Adjust the cushion rubbers so that the hood sub-assembly and front fender are aligned.

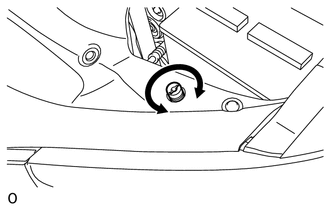

        GTY222209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Raise or lower the front end of the hood sub-assembly by turning the 2 cushion rubbers.

    3. Adjust the hood lock.
      1. Loosen the 3 bolts.

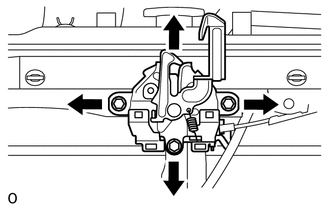

        GTY222211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Adjust the hood lock assembly and tighten the 3 bolts.

        Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

      3. Check that the striker can engage with the hood lock assembly smoothly.
  6. INSTALL FRONT BUMPER COVER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 16 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 16 [08/2019 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 16 [08/2021 - ]

  7. INSTALL FRONT BUMPER COVER (w/o Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 13 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 13 [08/2019 - 08/2020] , or refer to PROCEDURE - Step 13 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 13 [08/2021 - ]

  8. INSTALL UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 60
