Removal [08/2015 - 08/2019]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 18

  2. REMOVE FRONT BUMPER COVER
    1. Put protective tape around the front bumper cover.
    2. Remove the 3 bolts, 10 screws and 6 clips.
    3. Detach the 14 claws to remove the front bumper cover with radiator grille.

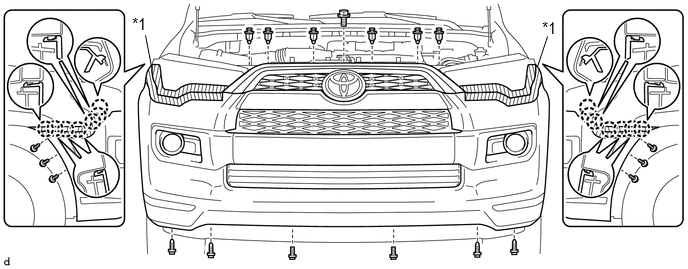

      GTY443068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape - -
    4. Disconnect 3 connectors.
  3. REMOVE UPPER CENTER FRONT BUMPER RETAINER

    Refer to PROCEDURE - Step 11

  4. REMOVE COOL AIR INTAKE DUCT (for 4WD)
    1. Remove the 4 clips and cool air intake duct.
      GTY442486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT BUMPER LOWER COVER
    1. Remove the clip.
      GTY437818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and front lower bumper cover.
  6. REMOVE AIR INTAKE DUCT LH
    1. Remove the clip and bolt.
      GTY706113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and air intake duct LH.
  7. REMOVE AIR INTAKE DUCT RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE RADIATOR SIDE DEFLECTOR LH

    Refer to PROCEDURE - Step 13

  9. REMOVE RADIATOR SIDE DEFLECTOR RH

    Refer to PROCEDURE - Step 12

  10. REMOVE FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 7

  11. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the screw, 6 nuts and front bumper reinforcement sub-assembly.
      GTY437822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 9

  13. REMOVE NO. 2 FRONT BUMPER EXTENSION SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE FRONT BUMPER SIDE SUPPORT LH

    Refer to PROCEDURE - Step 11

  15. REMOVE FRONT BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE FRONT BUMPER BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 13

  17. REMOVE FRONT BUMPER BRACKET SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.
