Removal [08/2019 - 08/2020]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 18

  2. REMOVE FRONT BUMPER COVER

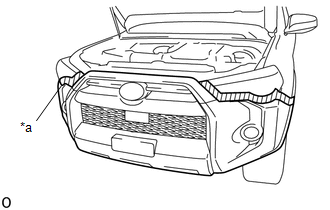

    1. Apply protective tape as shown in the illustration.
      GTY845814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Remove the 3 screws.
      GTY924823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

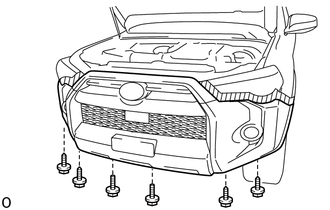

    3. Remove the 4 screws and 2 bolts.
      GTY924822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

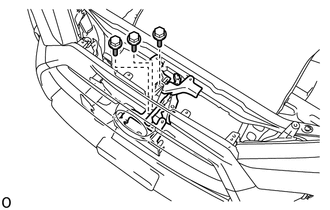

    4. Remove the 3 bolts.
      GTY924776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

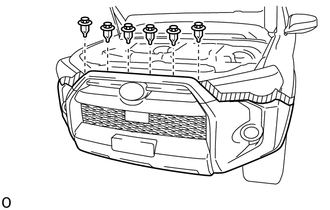

    5. Remove the 6 clips.
      GTY924775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

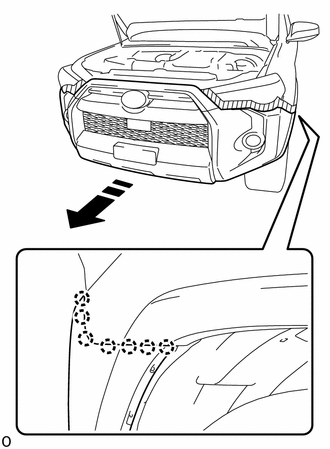

    6. Disengage the 7 claws as shown in the illustration.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY869782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    7. Disconnect the 3 connectors.
    8. Remove the front bumper cover.
  3. REMOVE UPPER CENTER FRONT BUMPER RETAINER

    Refer to PROCEDURE - Step 11

  4. REMOVE FRONT BUMPER LOWER COVER

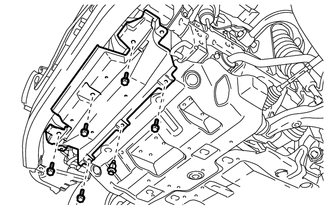

    1. Remove the clip, 5 bolts and front lower bumper cover.
      GTY437821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE RADIATOR SIDE DEFLECTOR LH

    Refer to PROCEDURE - Step 13

  6. REMOVE RADIATOR SIDE DEFLECTOR RH

    Refer to PROCEDURE - Step 12

  7. REMOVE FRONT BUMPER ENERGY ABSORBER

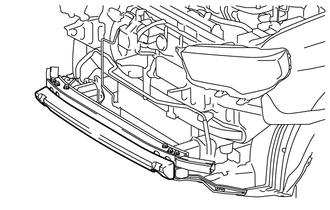

    1. Remove the front bumper energy absorber.
      GTY441091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

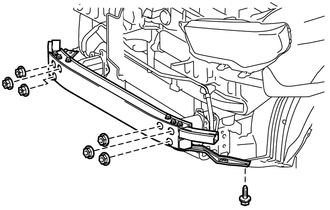

    1. Remove the 6 nuts, screw and front bumper reinforcement sub-assembly.
      GTY441090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

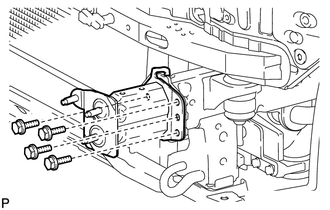

    1. Remove the 4 bolts and No. 2 front bumper extension sub-assembly LH.
      GTY230360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 FRONT BUMPER EXTENSION SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE FRONT BUMPER SIDE SUPPORT LH

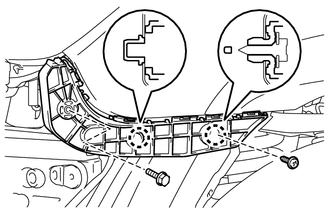

    1. Remove the bolt and screw.
      GTY441088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws to remove the front bumper side support LH.
  12. REMOVE FRONT BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE FRONT BUMPER BRACKET SUB-ASSEMBLY LH

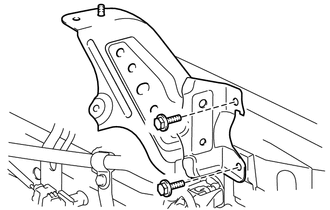

    1. Remove the 2 bolts and front bumper bracket sub-assembly LH.
      GTY441087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT BUMPER BRACKET SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.
