Removal [08/2019 - 08/2021]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 18

  2. REMOVE FRONT BUMPER COVER

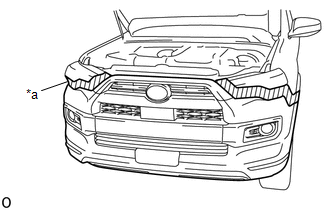

    1. Apply protective tape as shown in the illustration.
      GTY889360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Remove the 3 screws.
      GTY924778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

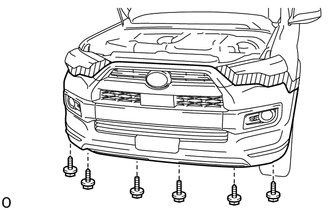

    3. Remove the 4 screws and 2 bolts.
      GTY924777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

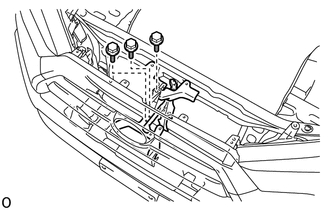

    4. Remove the 3 bolts.
      GTY945293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

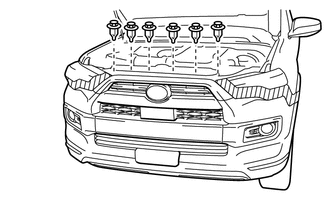

    5. Remove the 6 clips.
      GTY945292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

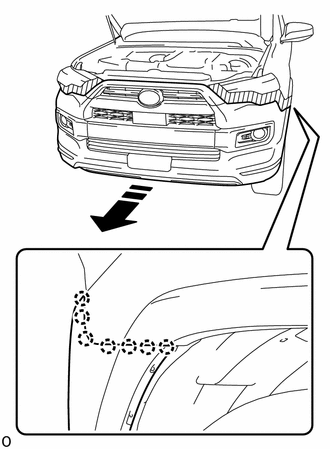

    6. Disengage the 7 claws as shown in the illustration.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY845001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    7. Disconnect the 3 connectors.
    8. Remove the front bumper cover.
  3. REMOVE UPPER CENTER FRONT BUMPER RETAINER

    Refer to PROCEDURE - Step 11

  4. REMOVE COOL AIR INTAKE DUCT (for 4WD)

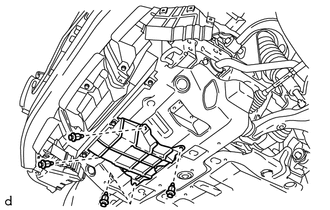

    1. Remove the 4 clips and cool air intake duct.
      GTY442486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT BUMPER LOWER COVER

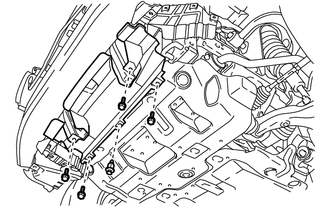

    1. Remove the clip.
      GTY437818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and front lower bumper cover.
  6. REMOVE AIR INTAKE DUCT LH
    1. Remove the clip and bolt.
      GTY706113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and air intake duct LH.
  7. REMOVE AIR INTAKE DUCT RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE RADIATOR SIDE DEFLECTOR LH

    Refer to PROCEDURE - Step 13

  9. REMOVE RADIATOR SIDE DEFLECTOR RH

    Refer to PROCEDURE - Step 12

  10. REMOVE FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 7 [08/2019 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - 08/2021]

  11. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

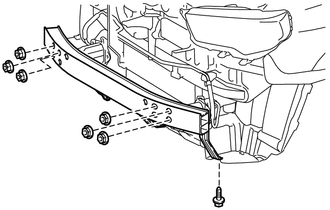

    1. Remove the screw, 6 nuts and front bumper reinforcement sub-assembly.
      GTY437822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 9 [08/2019 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 08/2021]

  13. REMOVE NO. 2 FRONT BUMPER EXTENSION SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE FRONT BUMPER SIDE SUPPORT LH

    Refer to PROCEDURE - Step 11 [08/2019 - 08/2020] , or refer to PROCEDURE - Step 11 [08/2020 - 08/2021]

  15. REMOVE FRONT BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE FRONT BUMPER BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 13 [08/2019 - 08/2020] , or refer to PROCEDURE - Step 13 [08/2020 - 08/2021]

  17. REMOVE FRONT BUMPER BRACKET SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.
