Removal [08/2015 - 08/2019]: Procedure

Refer to PROCEDURE - Step 18

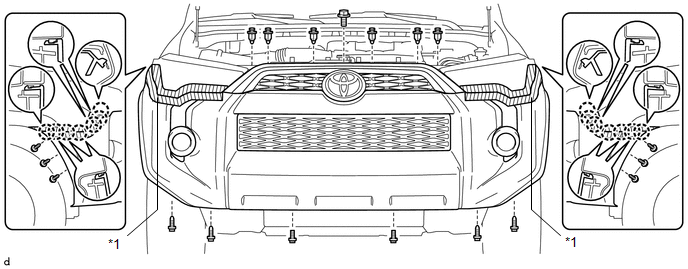

1. Put protective tape around the front bumper cover.
2. Remove the 3 bolts, 10 screws and 6 clips.
3. Detach the 14 claws to remove the front bumper cover with radiator grille.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Protective Tape

   -

   -

4. Disconnect the 2 connectors.

Refer to PROCEDURE - Step 11

1. Remove the clip, 5 bolts and front lower bumper cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 13

Refer to PROCEDURE - Step 12

1. Remove the front bumper energy absorber.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 6 nuts, screw and front bumper reinforcement sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 bolts and No. 2 front bumper extension sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

1. Remove the bolt and screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the 2 claws to remove the front bumper side support LH.

HINT:

Use the same procedure as for the LH side.

1. Remove the 2 bolts and front bumper bracket sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.
