Remove/install dashboard - AR68.10-P-1000EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207, 212
Illustrated on model 212
Model 207
MODIFICATION NOTES
| 29.6.09 | Value changed: Nut, knee airbag on crossmember | *BA91.60-P-1003-01M |
| Remove/install | |||
| Risk of injury Injuries may result when performing testing or repair work on airbag or emergency tensioning retractor units | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags or emergency tensioning retractor units | AH91.00-P-0002-01M | ||
| Legal regulations on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||

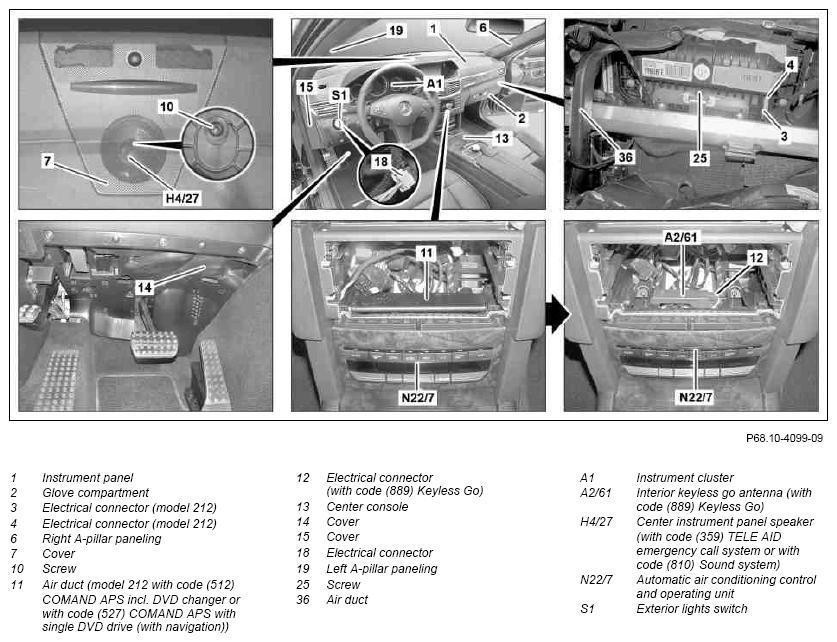

| 1 | Disconnect ground line at the on-board electrical system battery | AR54.10-P-0003EW | |
| 2 | Adjust air distribution on air conditioning to footwell. | ||
| 3 | Remove glove box (2) | Model 207 | AR68.10-P-1400EC |
| Model 212 |
AR68.10-P-1200EW | ||
| 4 | Disconnect electrical connector (34) from right side vent temperature sensor (B10/32) | ||
| 5 | Disconnect electrical connector (43) from right side air vent | Model 207 | |
| 6 | Disconnect electrical connector (3) from passenger airbag squib 1 and electrical connector (4) from passenger airbag squib 2 | Fig 8 | |
| 7 | Remove right A-pillar paneling (6). | Fig 6 | |
| 8 | Remove radio | AR82.60-P-7502EW | |
| 9 | Remove radio display | AR82.60-P-7722EW | |
| 10 | Remove cover (7) | AR68.10-P-1000-05EW | |
| Fig 7 | |||
| 11 | Remove center instrument panel speaker (H4/27) | On vehicles with code (810) Sound system or with code (359) TELE AID emergency call system | |
| 12 | Unscrew bolt (10) | ||
| 13 | Remove automatic air conditioning control and operating unit (N22/7) | Model 207 | AR83.25-P-1124EC |
| Model 212 | AR83.40-P-6350EW | ||
| 14 | Remove air duct (11) | Model 212 with code (512) COMAND APS incl. DVD changer or With code (527) COMAND APS with Single DVD disk drive (with navigation) |
|
| 15 | Disconnect electrical connector (12) from KEYLESS GO interior antenna (A2/61) | On vehicles with code (889) Keyless go | |
| 16 | Loosen center console (13) and slightly pull toward rear | Model 207 | AR68.20-P-2000CW |
| Model 212 |
AR68.20-P-2000EW | ||
| 17 | Remove cover (14) | Rechargeable drill/screwdriver | |
| 18 | Remove cover (15) | Fig 6 | |
| 19 | Unclip interior fuse box (F34) from instrument panel (1) and guide into instrument panel (1) with electrical lines connected | Model 207 | |
| Fig 6 | |||

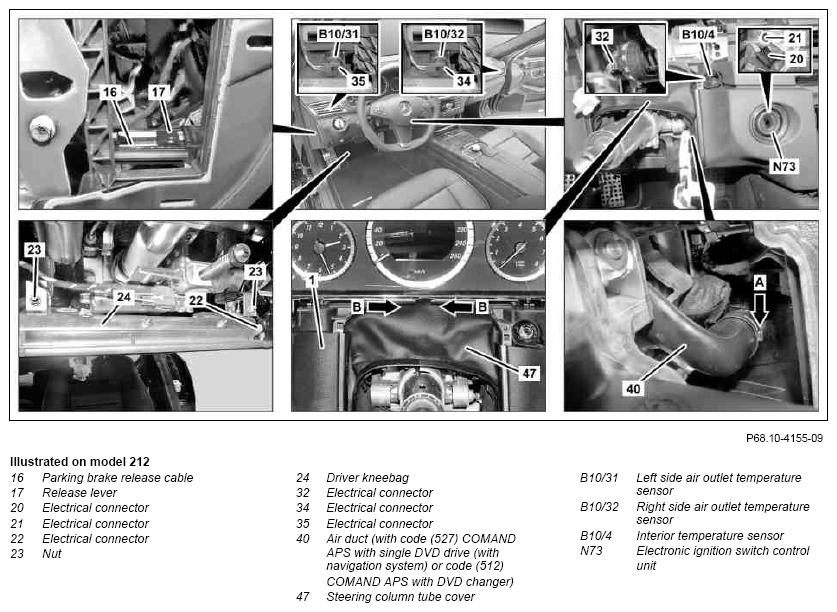

| 20 | Unhook parking brake release cable (16) from release lever (17) and remove release lever (17) from vehicle | ||
| 21 | Disconnect electrical connector (18) from exterior lights switch (S1) | ||
| 22 | Disconnect electrical connector (35) from left side air vent temperature sensor air outlet (B10/31) | ||
| 23 | Disconnect electrical connector (46) from left side air vent | Model 207 | |
| 24 | Remove steering column tube module | Model 204, 207 | AR54.25-P-2802CW |
| 25 | Unclip steering column tube cover (47) at both ends from instrument panel (1) (arrows B) and remove | Model 212 | |
| 26 | Remove instrument cluster (A1) | AR54.30-P-6015EW | |
| 27 | Disconnect electrical connector (34) from right side vent temperature sensor (B10/32) | ||
| 28 | Remove left A-pillar paneling (19) | Fig 6 | |

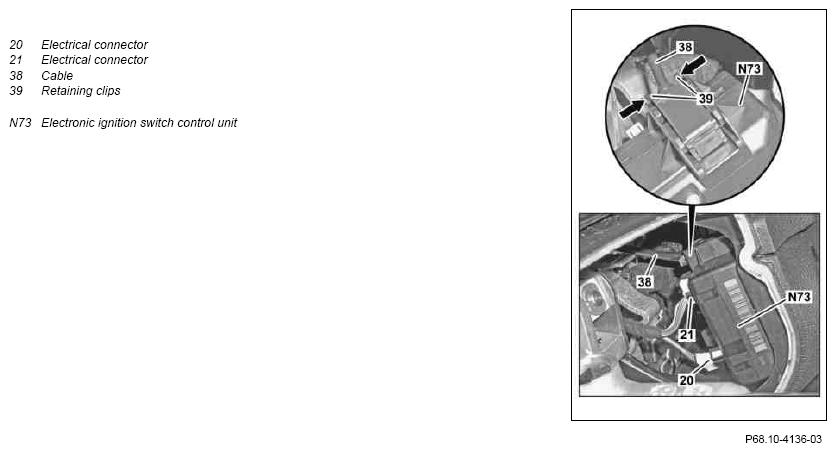

| 29 | Disconnect electrical connectors (20, 21) from electronic ignition lock control unit (N73) | Model 212 without code (279) Electronic gear selector | |
| 30 | Unhook cable (38) from electronic ignition lock control unit (N73) | On model 212 without code (279) Electronic gear selector |
|

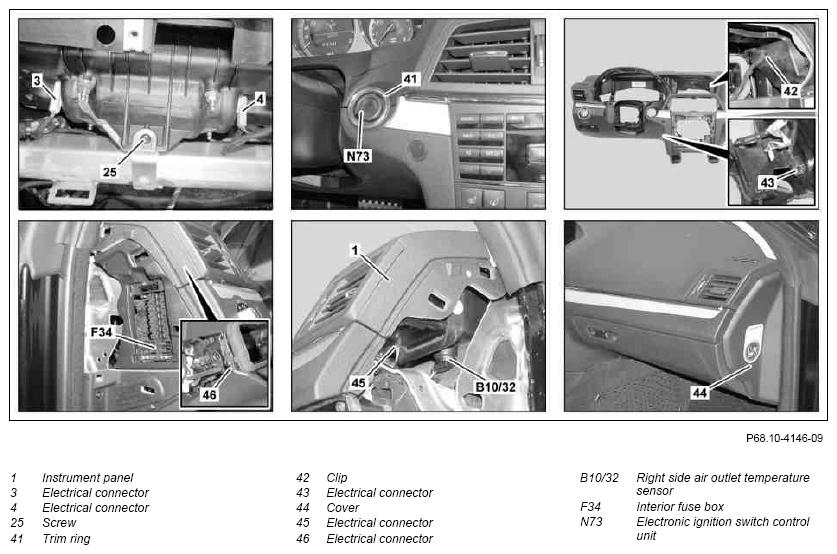

| 31 | Unscrew trim ring (41) from electronic ignition lock control unit (N73) | Model 207 | |
| Fig 9 | |||
| 32 | Press electronic ignition lock control unit (N73) toward inside into dashboard (1). | Model 207 | |
| 33 | Disconnect electrical connector (22) from driver kneebag squib on driver kneebag (24) | Fig 8 | |
| 34 | Unscrew nuts (23) from driver kneebag (24) | *BA91.60-P-1003-01M | |
| 35 | Unscrew bolt (25) | *BA91.60-P-1002-01M | |

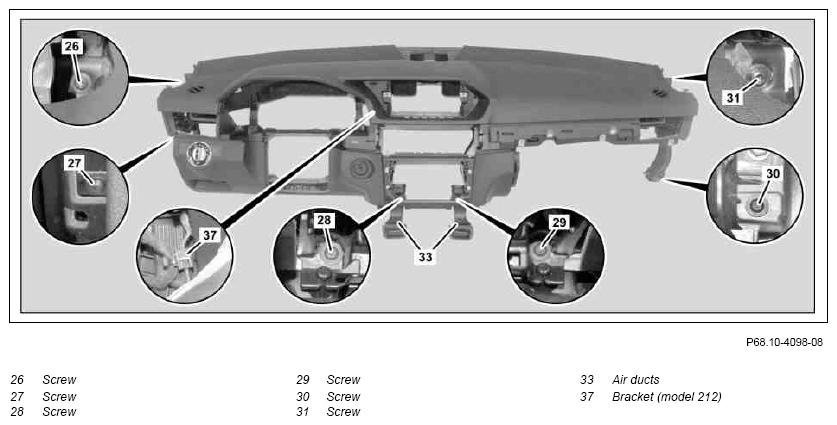

| 36 | Unscrew bolts (26, 27, 28, 29, 30, 31) | ||
| 37 | Unclip clip (42) from instrument panel (1) | ||
| 38.1 | Lift instrument panel (1) and disconnect electrical connector from (32) interior temperature sensor (B10/4) | Model 212 | |
| 38.2 | Lift instrument panel (1) and disconnect electrical connector from electric coupling (43) on interior temperature sensor (B10/4) | Model 207 | |
| 39 | Unclip bracket (37) | Model 212 | |
| 40 | Separate air duct (40) from connector (arrow A). | On vehicles with code (512) COMAND APS incl. DVD changer or With code (527) COMAND APS with Single DVD disk drive (with navigation) |
|
| 41 | Remove air ducts (33) | ||
| 42 | Remove electrical lines in area of air ducts (33) from instrument panel (1) | Model 212 | |
| 43 | Remove instrument panel (1) from vehicle with aid of helper | ||
| 44 | Install in the reverse order |
AIRBAG
| Number | Designation | Model 207 | Model 212 | |
|---|---|---|---|---|
| BA91.60-P-1002-01M | Sheet metal screw, front passenger airbag unit to crossmember | Nm | 3.5 | 3.5 |
| BA91.60-P-1003-01M | Nut, knee airbag to crossmember | Nm | 8 | 8 |
