Remove/install cover on instrument panel - AR68.10-P-1000-05EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207, 212

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Illustrated on model 212

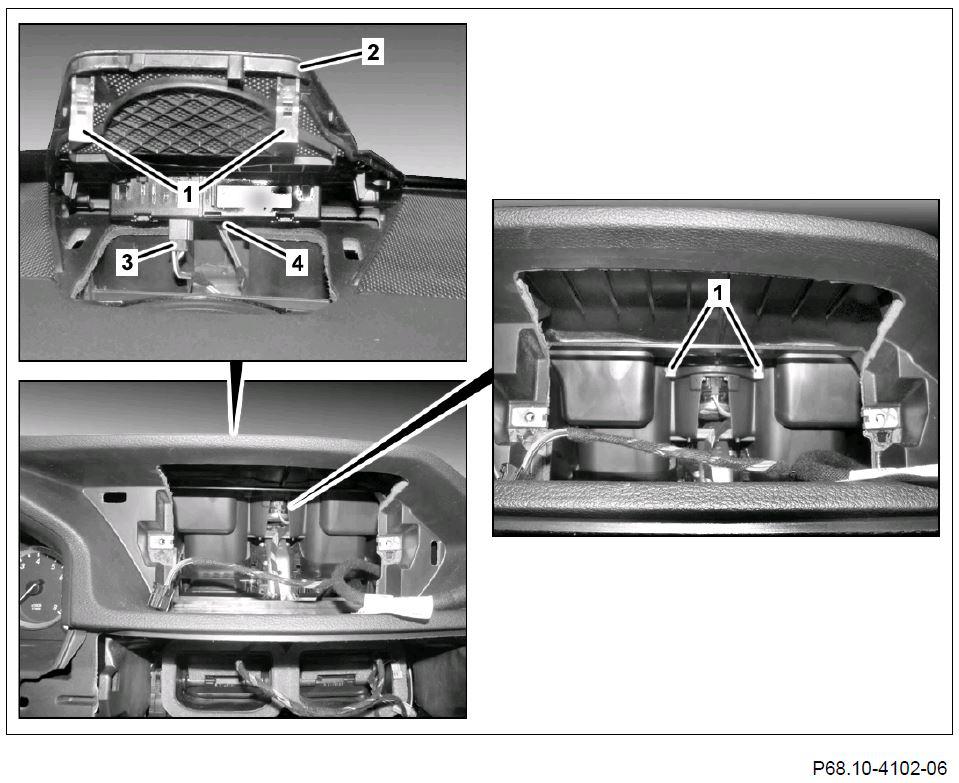

Fig 2: Catch Hooks, Cover And Electrical Connectors

Courtesy of MERCEDES-BENZ USA

Remove catch hooks (1) with long wedge through shaft of Audio/COMAND display and remove cover (2) upward from instrument panel.
Remove cover (2) from instrument panel.
Disconnect electrical connector (3) from PARKTRONIC instrument panel warning indicator.
Only on vehicles with code (220) PARKTRONIC or with code (230) Exclusive parking assist
Disconnect electrical connector (4) from sun sensor.
