Remove/install instrument cluster - AR54.30-P-6015EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207, 212
Illustrated on model 212
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Temporarily store basic data of instrument cluster (A1) in STAR DIAGNOSIS | When replacing the instrument cluster (A1). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Position steering wheel rearwards and at the bottom | ||
| 3 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 4 | Remove the left and right trim strip (1) on the bezel of the instrument cluster (2) | On model 212 | AR68.10-P-1180EW |
| 5 | Unlatch instrument cluster bezel (2) first at the top of the peg (3) then unlatch backwards in the lower area of the catch hooks (4) and remove | ||

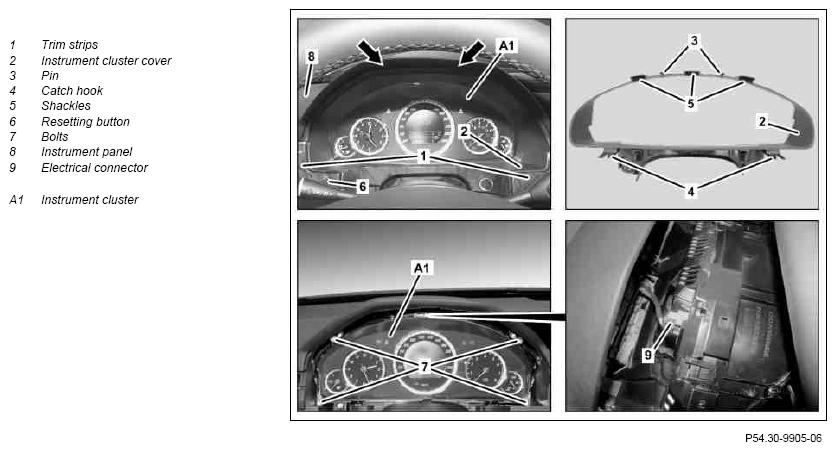

| Figure | |||
| 6 | Pull reset knob (6) out of the instrument cluster (A1) | ||
| 7 | Unscrew bolts (7) until the instrument cluster (A1) is loose | ||
| 8 | Swing the instrument cluster (A1) at the top out of the dashboard (8) and remove rearwards until the electrical connector (9) is accessible | ||
| 9 | Unplug electrical connector (9) and remove instrument cluster (A1) | ||
| 10 | Install in the reverse order |
