Overview of system components, telematics - GF82.85-P-9999FLA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 as of 6/1/12

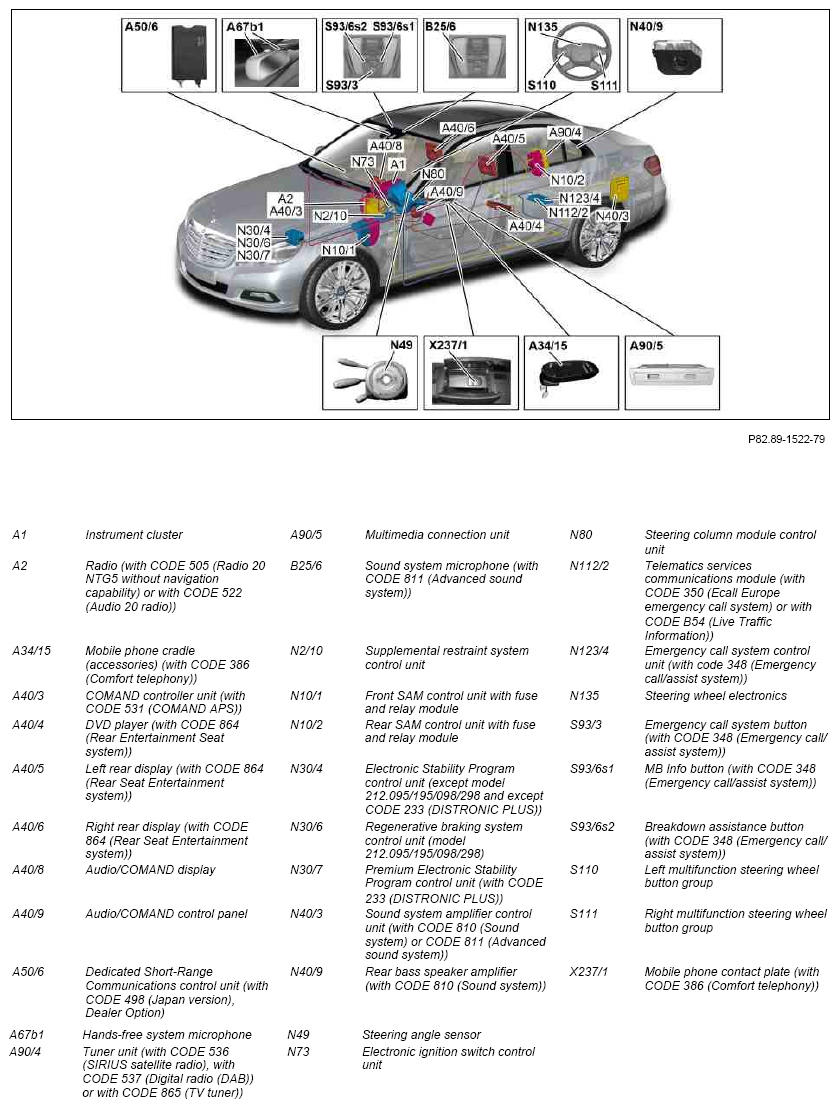

Fig 1: Overview Of Telematics System Components - Shown On Model 212.0
G09977723Courtesy of MERCEDES-BENZ USA

Model 212 as of 02.03.2015, except telematics antenna system and except speaker system, shown on model 212.0

IMPORTANT MODEL 212 with CODE 811 (Advanced sound system)

The sound system amplifier control unit is installed in a different location, cf. pictures "Sound system amplifier control unit with CODE 811 (Advanced sound system) as of 02.03.2015".

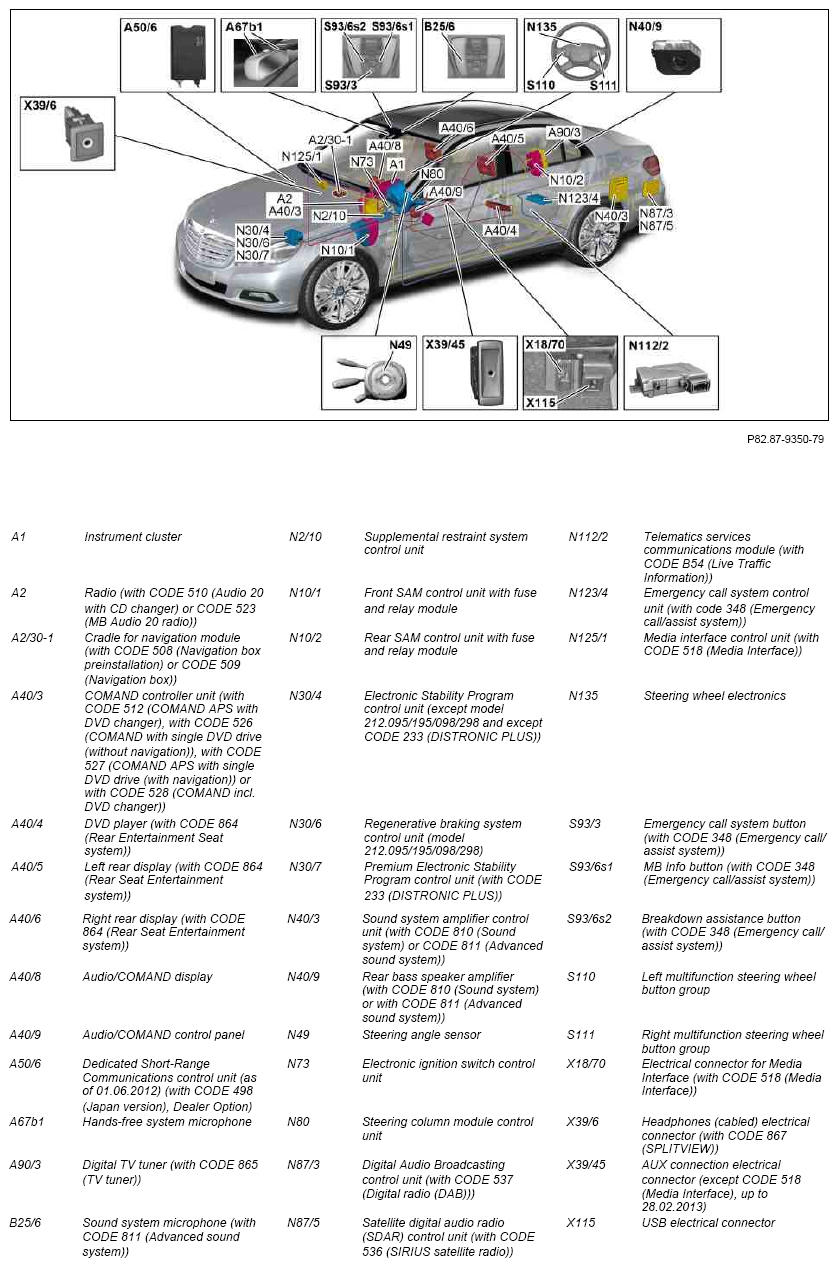

Fig 2: Overview Of Telematics System Components - Shown On Model 212.0/1
G09977724Courtesy of MERCEDES-BENZ USA

Model 212.0/1 up to 01.03.2015, except telematics antenna system and except speaker system, shown on model 212.0 up to 01.03.2015

IMPORTANT MODEL 212.0/1 with CODE 811 (Advanced sound system)

The sound system amplifier control unit and the rear bass speaker amplifier are installed in a different location, cf. picture "Speaker system with CODE 811 (Advanced sound system)".

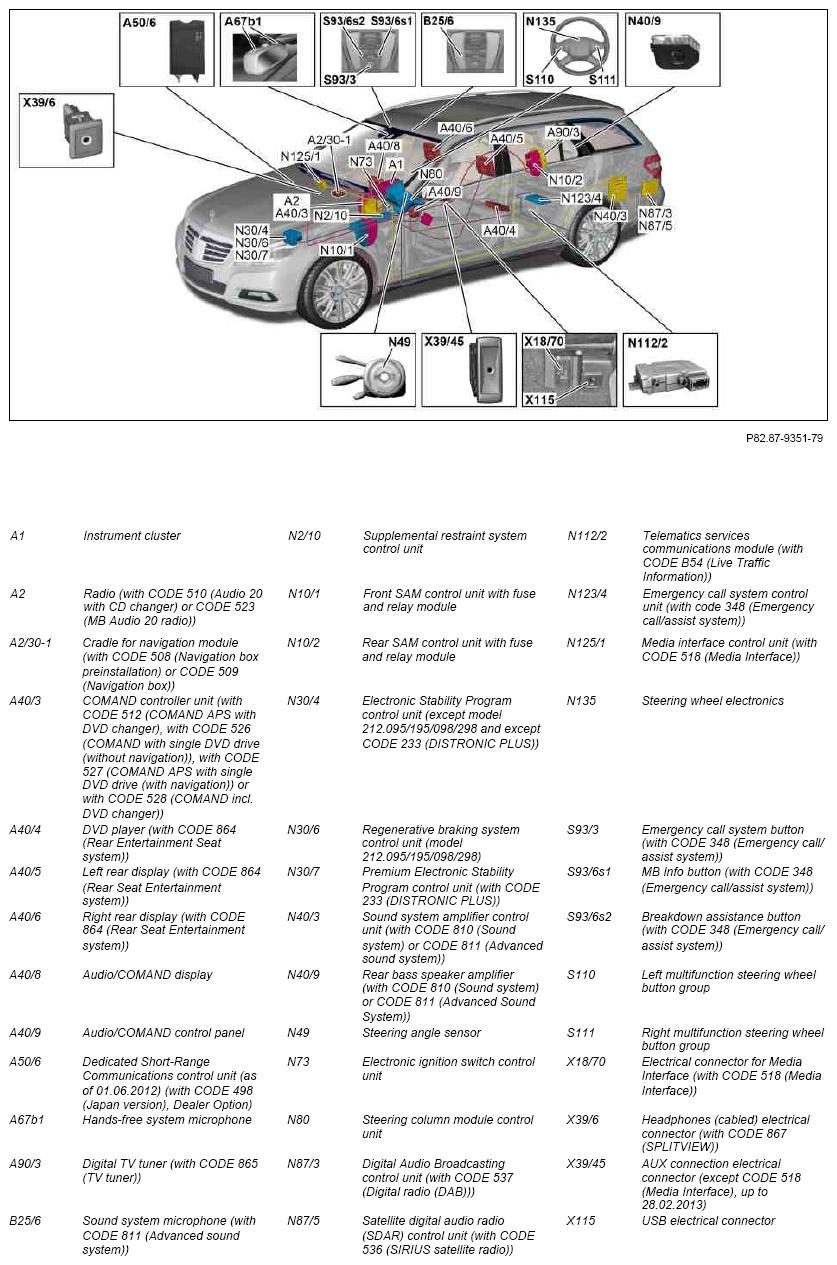

Fig 3: Overview Of Telematics System Components - Shown On Model 212.2
G09977725Courtesy of MERCEDES-BENZ USA

Shown on model 212.2 up to 01.03.2015, except telematics antenna system and except speaker system

IMPORTANT MODEL 212.2 with CODE 811 (Advanced sound system)

The sound system amplifier control unit and the rear bass speaker amplifier are installed in a different location, cf. "Speaker system with CODE 811 (Advanced sound system)".

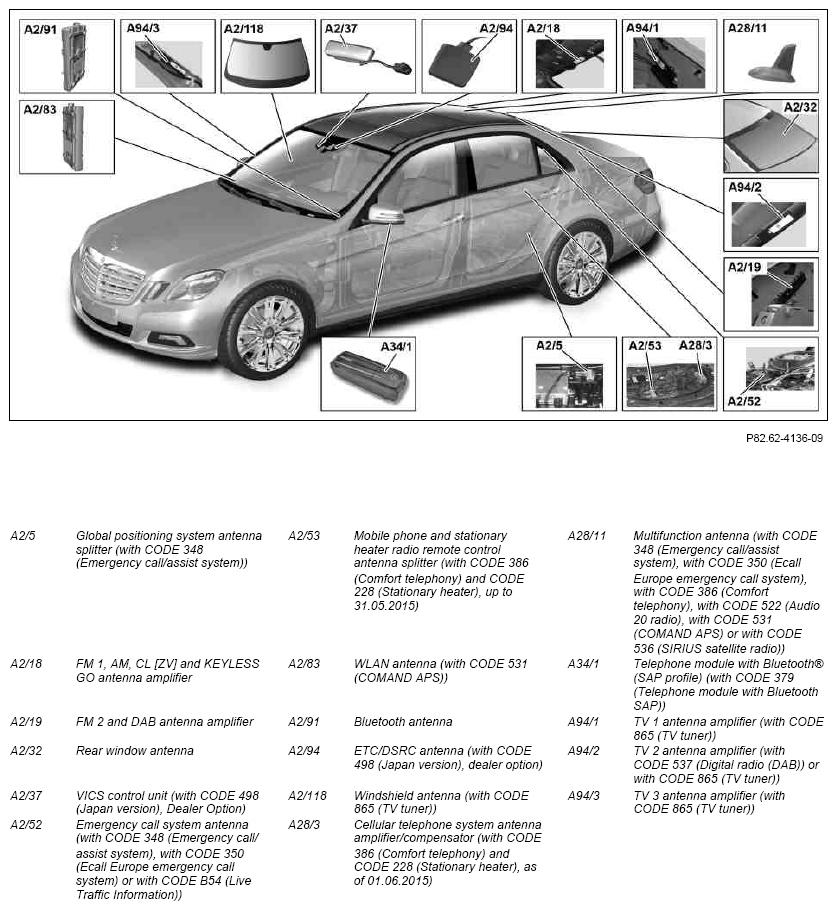

Fig 4: Overview Of Telematics System Components - Shown On Model 212.0
G09977726Courtesy of MERCEDES-BENZ USA

Telematics antenna system in model 212.0/1 as of 02.03.2015, shown on model 212.0 as of 02.03.2015

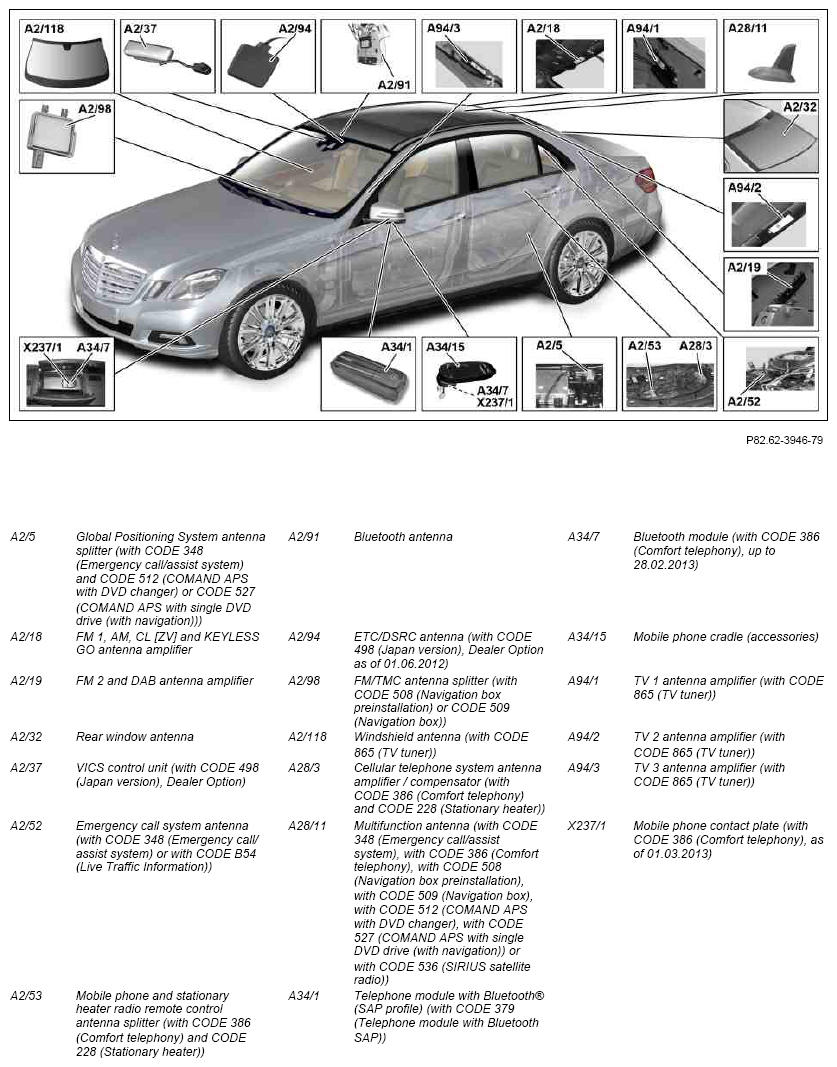

Fig 5: Overview Of Telematics System Components - Shown On Model 212.0/1
G09977727Courtesy of MERCEDES-BENZ USA

Telematics antenna system on model 212.0/1 up to 01.03.2015, shown on model 212.0 up to 01.03.2015

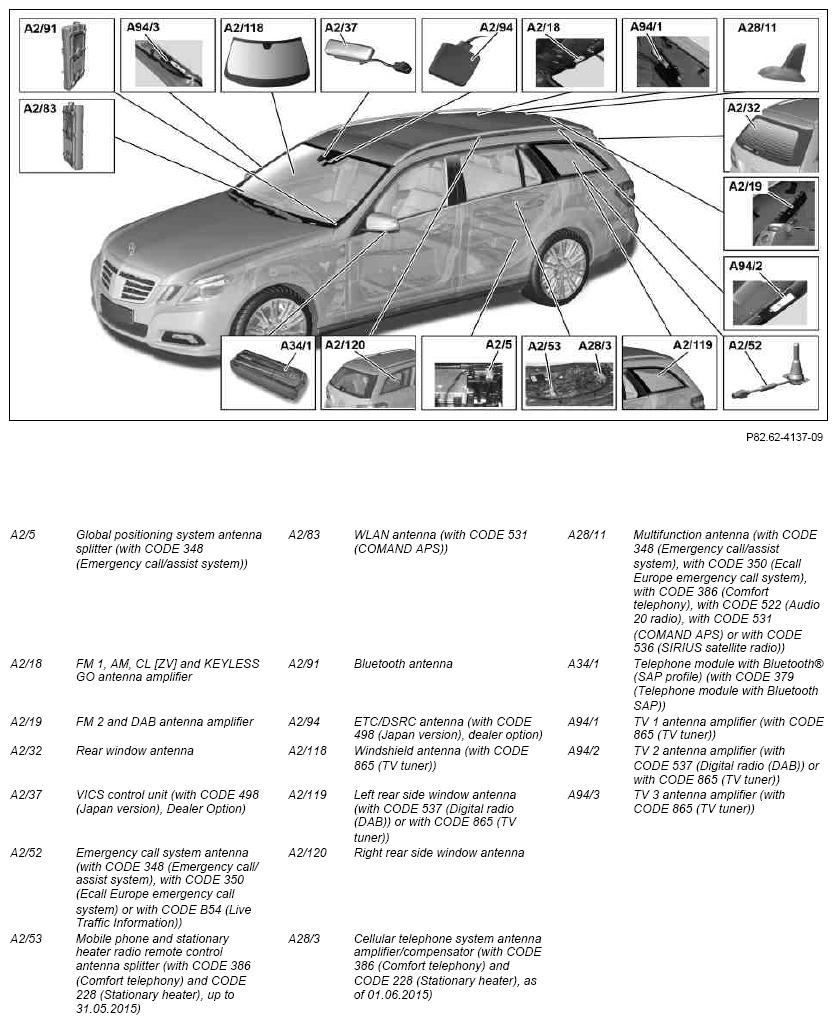

Fig 6: Overview Of Telematics System Components - Shown On Model 212.2
G09977728Courtesy of MERCEDES-BENZ USA

Telematics antenna system in model 212.2 as of 02.03.2015

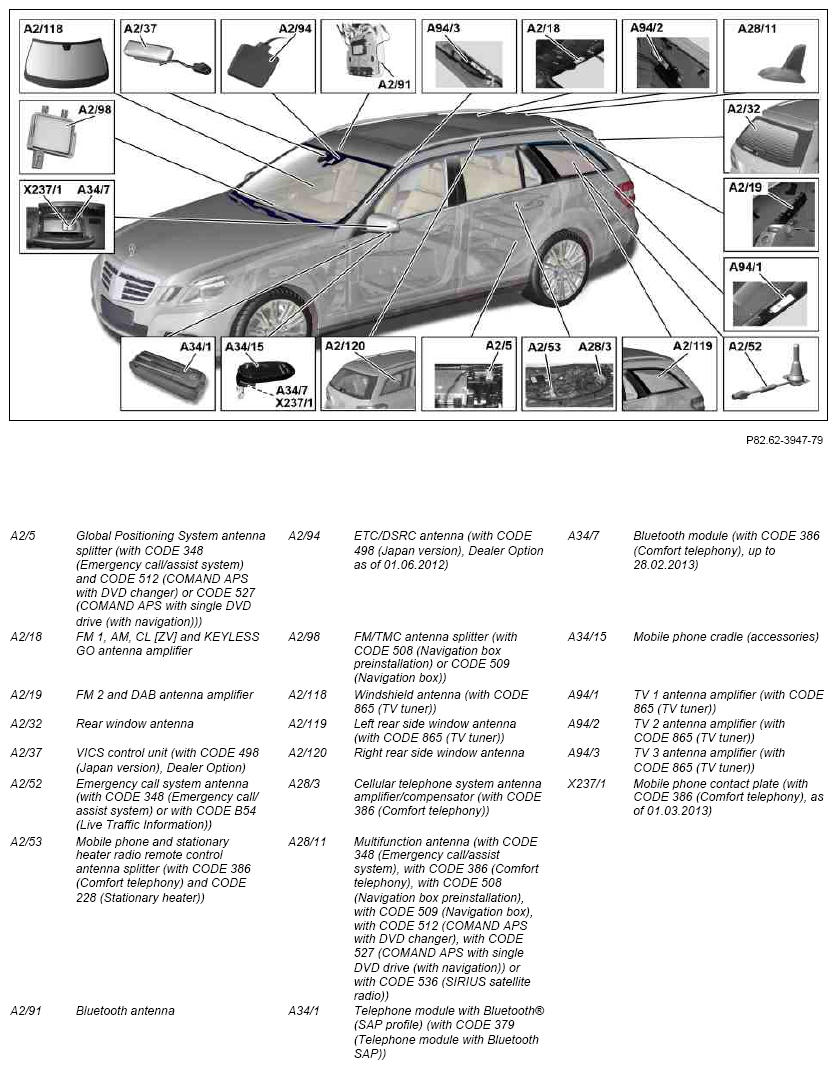

Fig 7: Overview Of Telematics System Components - Shown On Model 212.2
G09977729Courtesy of MERCEDES-BENZ USA

Shown on telematics antenna system in model 212.2 up to 01.03.2015

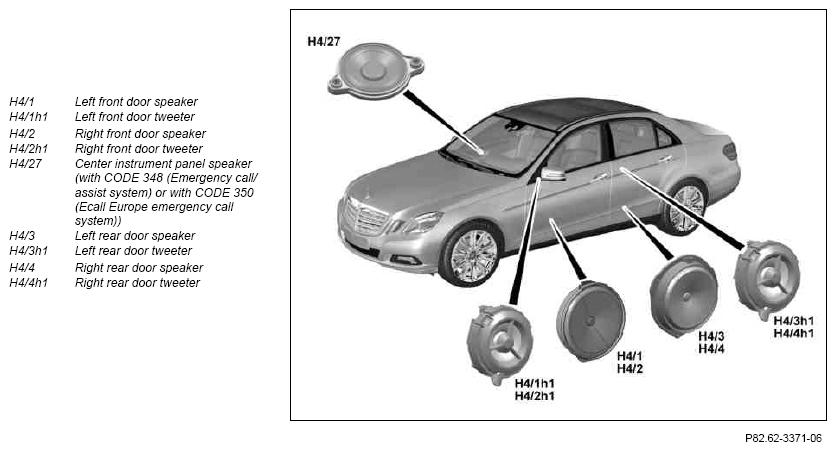

Speaker system except CODE 810 (Sound system) and except CODE 811 (Advanced sound system), shown on model 212.0

Fig 8: Speaker System Components - Shown On Model 212.0
G09977730Courtesy of MERCEDES-BENZ USA

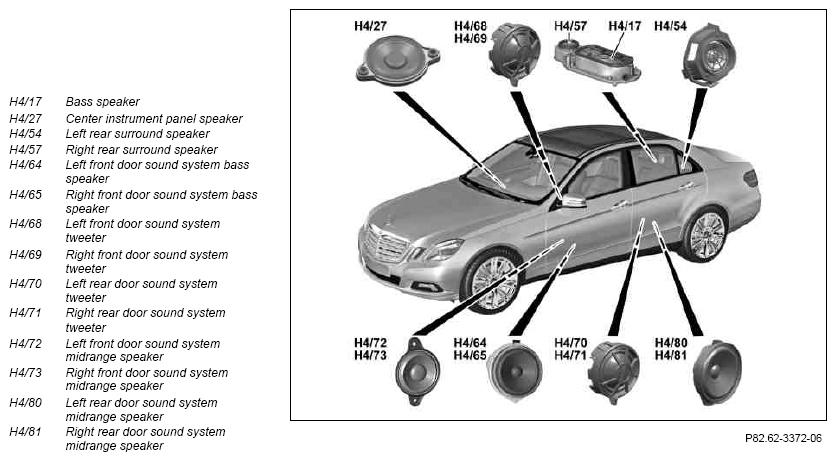

Speaker system with CODE 810 (sound system) in model 212.0/1, shown on model 212.0

Fig 9: Speaker System Components - Shown On Model 212.0/1
G09977731Courtesy of MERCEDES-BENZ USA

IMPORTANT MODEL 212.2 with CODE U42 (BlueTEC diesel exhaust treatment (SCR))

The design of the woofer deviates.

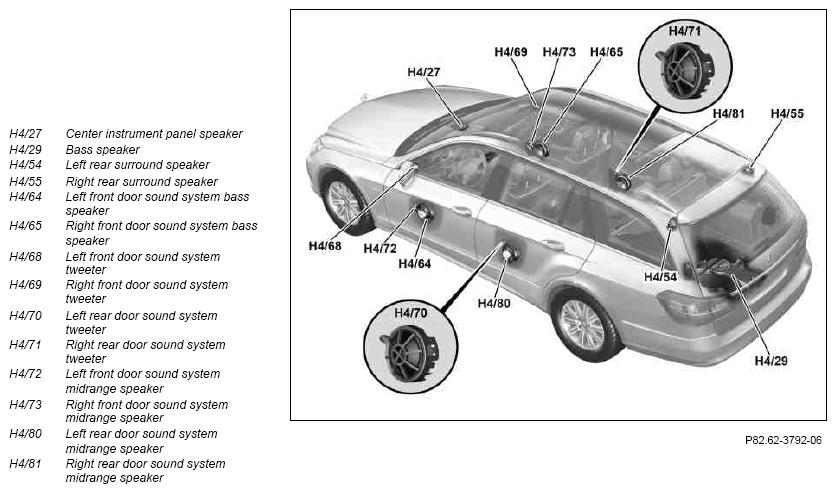

Speaker system with CODE 810 (Sound system), shown on model 212.2

Fig 10: Speaker System Components - Shown On Model 212.2
G09977732Courtesy of MERCEDES-BENZ USA

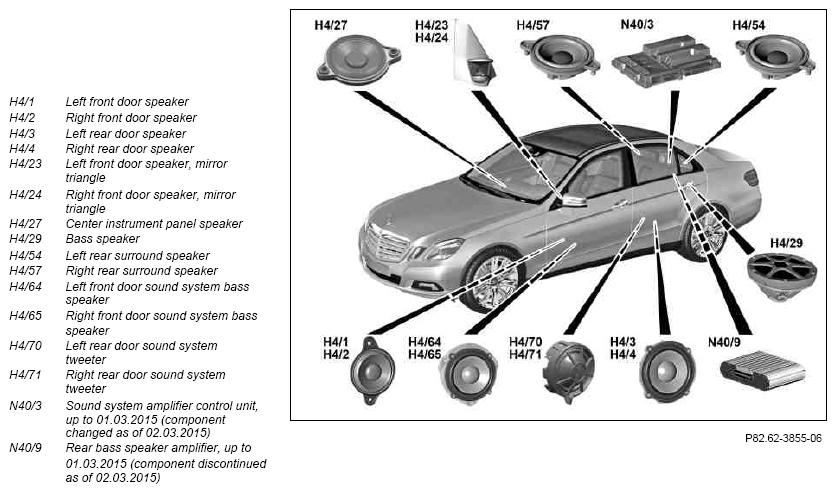

Speaker system with CODE 811 (Advanced sound system) in model 212.0/1, shown on model 212.0 up to 01.03.2015

Fig 11: Speaker System Components - Shown On Model 212.0
G09977733Courtesy of MERCEDES-BENZ USA

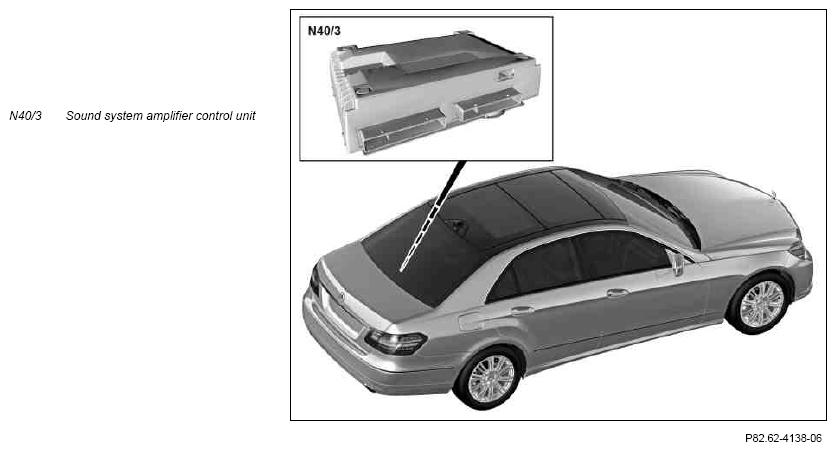

Sound system amplifier control unit with CODE 811 (Advanced sound system) in model 212.0/1 as of 02.03.2015, shown on model 212.0 as of 02.03.2015

Fig 12: Sound System Amplifier Control Unit - Shown On Model 212.0
G09977734Courtesy of MERCEDES-BENZ USA

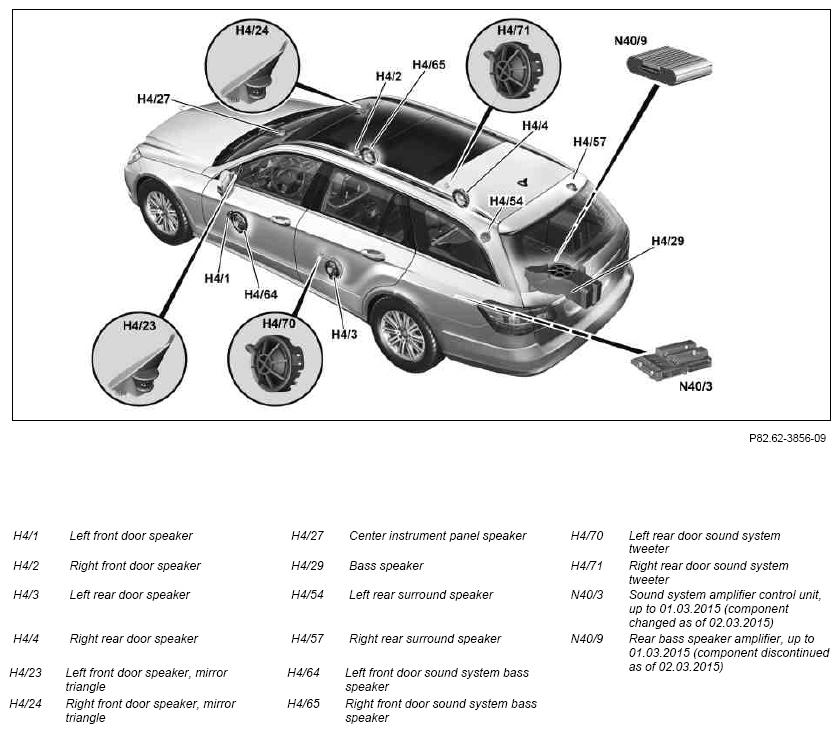

Fig 13: Speaker System Components - Shown On Model 212.2
G09977735Courtesy of MERCEDES-BENZ USA

Speaker system with CODE 811 (Advanced sound system) on model 212.2 up to 01.03.2015

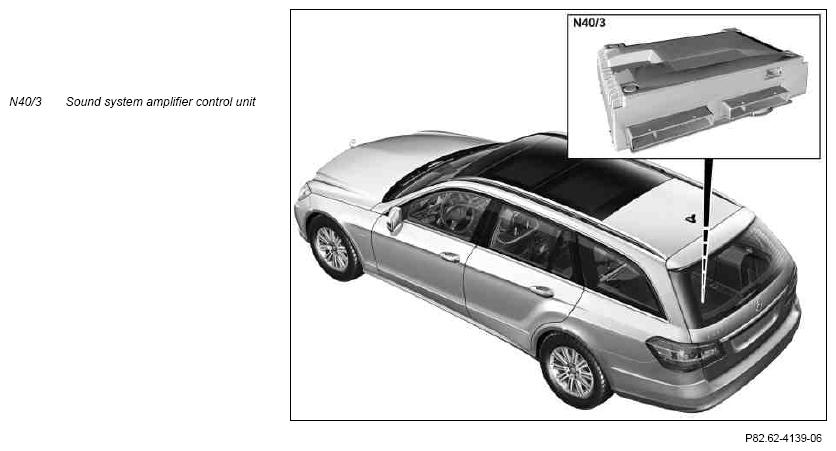

Sound system amplifier control unit with CODE 811 (Advanced sound system) in model 212.2 as of 02.03.2015

Fig 14: Sound System Amplifier Control Unit - Shown On Model 212.2
G09977736Courtesy of MERCEDES-BENZ USA
  Component description for regenerative braking system control unit MODEL 212.095/098/298 up to model year 2014 N30/6 GF42.22-P-1100FLH
MODEL 212.095/098/298 as of model year 2014 N30/6 GF42.22-P-1100FLM
  Component description for Electronic Stability Program control unit MODEL 212 (except 212.095/098/298)
up to model year 2014 N30/4, N30/7		 GF42.45-P-5119FL
MODEL 212 (except 212.095/098/298)
as of model year 2014 N30/4, N30/7		 GF42.45-P-5119FLM
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030FL
  Component description for steering column tube module control unit N80 GF54.21-P-6051FL
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070FL
  Component description for instrument cluster A1 GF54.30-P-6000FL
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001FL
  Digital TV tuner, component description MODEL 212 up to 3/1/15
as of model year 2013 up to model year 2016
with CODE 865 (TV tuner)/YoM 12 A90/3		 GF82.60-P-3118FL
  Component description for the radio MODEL 212 as of 3/2/15 as of model year 2016
with CODE 505 (Radio 20 NTG5, not navigation-enabled)
MODEL 212 as of 3/2/15 as of model year 2016
with CODE 522 (Audio 20 radio) A2		 GF82.60-P-3122FLM
MODEL 212 up to 3/1/15 up to model year 2016
with CODE 510 (Audio 20 CD with 6-disc CD changer)
MODEL 212 up to 3/1/15 up to model year 2016
with CODE 523 (Audio 20 CD) A2		 GF82.60-P-3122FLA
  Component description for media interface control unit MODEL 212 up to 3/1/15
as of model year 2013 up to model year 2016
with CODE 518 (Media interface) N125/1		 GF82.60-P-5000FLA
  Tuner unit, component description MODEL 212 as of 3/2/15 as of model year 2016
with CODE 536 (SIRIUS satellite radio)
MODEL 212 as of 3/2/15
as of model year 2016
with CODE 537 (Digital radio (DAB))
MODEL 212 as of 3/2/15
as of model year 2016
with CODE 865 (TV tuner) A90/4		 GF82.60-P-5015FLM
  Component description for Digital Audio Broadcasting control unit MODEL 212 up to 3/1/15 up to model year 2016
with CODE 537 (Digital radio (DAB)) N87/3		 GF82.62-P-5000FL
  Component description for sound system amplifier control unit MODEL 212
with CODE 810 (Sound system) N40/3		 GF82.62-P-5010FL
MODEL 212
with CODE 811 (Advanced sound system)
without CODE 810 (Sound system) N40/3		 GF82.62-P-5010FLA
  Rear bass speaker amplifier, component description MODEL 212 as of 6/1/12 up to 3/1/15 up to model year 2016
with CODE 811 (Advanced sound system)
without CODE 810 (Sound system) N40/9		 GF82.62-P-6005FLB
  Telematics services communications module, component description MODEL 212
with CODE 350 (Ecall emergency call system, Europe)
MODEL 212
with CODE B54 (Live Traffic Information) N112/2		 GF82.85-P-0220FLM
  Satellite digital audio radio (SDAR) control unit, component description MODEL 212 up to 3/1/15
as of model year 2011 up to model year 2016
with CODE 536 (SIRIUS satellite radio) N87/5		 GF82.85-P-3121FL
  Component description for COMAND controller unit MODEL 212 as of 3/2/15 as of model year 2016
with CODE 531 (COMAND APS) A40/3		 GF82.85-P-3136FLM
MODEL 212 as of 6/1/12 up to 3/1/15 up to model year 2016
with CODE 512 (COMAND APS with DVD changer)
MODEL 212 as of 6/1/12 up to 3/1/15 up to model year 2016
with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 212 as of 6/1/12 up to 8/31/14 up to model year 2015
with CODE 528 (COMAND with DVD changer) A40/3		 GF82.85-P-3136FLB
  Component description for emergency call system control unit MODEL 212
with CODE 348 (Emergency call/assistant system)
without CODE 359 (TELE AID emergency call system)
N123/4		 GF82.95-P-3212FLV
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080FL
  Component description for Audio/COMAND control panel A40/9 GF54.21-P-4501FLA
  Component description for Audio/COMAND display MODEL 212 as of 3/2/15 as of model year 2016 A40/8 GF54.30-P-6150FLN
MODEL 212 up to 3/1/15 up to model year 2016
without CODE 867 (SPLITVIEW) A40/8		 GF54.30-P-6150FL
MODEL 212 up to 3/1/15 up to model year 2016
with CODE 867 (SPLITVIEW) A40/8		 GF54.30-P-6150FLM
  Cradle for navigation module, component description MODEL 212
with CODE 508 (Navigation box preinstallation)
with CODE 509 (Navigation box) A2/30-1		 GF82.85-P-3137FL
  Component description for rear entertainment DVD player MODEL 212
with CODE 864 (Rear compartment entertainment package) A40/4		 GF82.90-P-4009FL
  Component description for rear display left/right MODEL 212
with CODE 864 (Rear compartment entertainment package)
A40/5, A40/6		 GF82.90-P-4020FL
  Table of contents for function description, telematics   GF82.85-P-0993FL
