Digital TV tuner, component description - GF82.60-P-3118FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 up to 3/1/15 as of model year 2013 up to model year 2016 with CODE 865 (TV tuner)

Shown on model 212.0

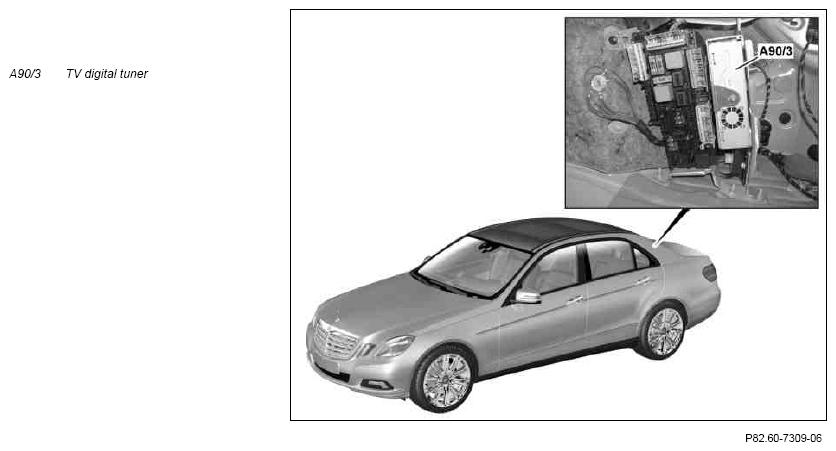

Fig 1: Digital TV Tuner - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

Location

The digital TV tuner is located at the right rear in the trunk behind the paneling on a bracket.

Tasks

Receive signals
Demodulating and decoding signals
Transmitting signals

Receive signals

Direct lines
Media Oriented System Transport (MOST)

Direct lines

The digital TV tuner receives the following signals:

Power supply via circuit 31 and circuit 30 via one direct line each
Electronic wake-up for MOST via a direct line
TV 1 antenna amplifier (A94/1) via a coaxial cable
TV 2 antenna amplifier (A94/2) via a coaxial cable
TV 3 antenna amplifier (A94/3) via a coaxial cable

Media Oriented System Transport (MOST)

The digital TV tuner is a participant of the MOST, via which it communicates with the COMAND controller unit (A40/3).

Demodulating and decoding signals

The TV signals that are received via the antenna amplifier are evaluated internally and separated into video and audio signals.

Transmitting signals

Signals are transmitted via the following lines:

Direct line
Media Oriented System Transport (MOST)

Direct line

Power supply via signal line to the following antenna amplifiers: TV 1 antenna amplifier, TV 2 antenna amplifier, TV 3 antenna amplifier
Video signals via Y/C lines (Y brightness (luminance) / C color information (chrominance)) to the COMAND controller unit

Media Oriented System Transport (MOST)

The TV digital tuner is a subscriber of the MOST, via which it communicates with the COMAND controller unit. The audio signals are transmitted to the COMAND controller unit or the sound system amplifier control unit (N40/3) (with CODE 810 (Sound system) or CODE 811 (Advanced sound system)).

Body

With CODE 498 (Japan version) the digital TV tuner is delivered with a "B-CAS card". The "B-CAS card" is designed as a subscriber identification module (SIM) card and inserted in the SIM card reader. The SIM card reader does not have a cover.

Wiring diagram for TV tuner A90/3

PE82.60-P-2220-97DAA
