Component description for rear display left/right - GF82.90-P-4020FL

MODEL 212 with CODE 864 (Rear entertainment system)

Shown on model 212.0

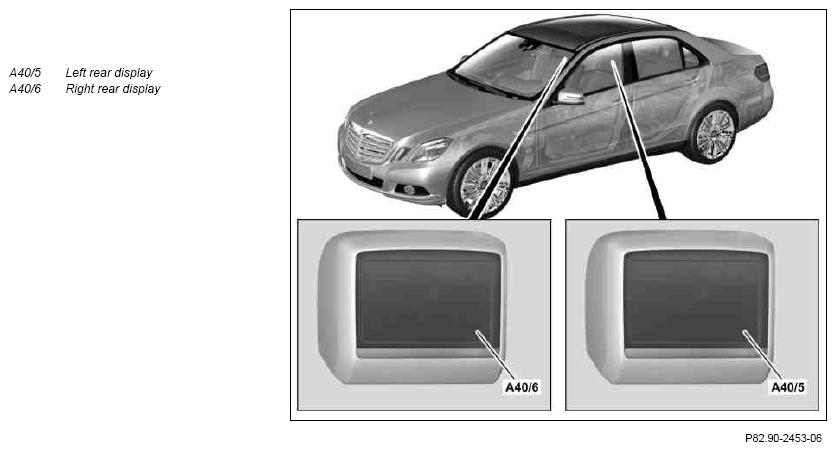

Fig 1: Rear Display Left/Right - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

Transmitting signals

• Output of audio signals
• CAN

Output of audio signals

Output of audio signals via following options:

• To headphones connected by cable via the integrated headphones connection
• To the headphones (cordless) connected via the infrared interface (up to 31.5.10)
• To the radio frequency headphones (cordless) connected via the radio interface (as of 1.6.10)

The volume of the audio signals can only be adjusted via the remote control for the headphones connected by cable to the headphones connection. For the headphones (cordless) connected via the infrared or radio interface, the volume of the audio signals is adjusted via the volume control integrated in the headphones.

CAN

The rear display is a subscriber of the telematics CAN and communicates with the following components:

• DVD player
• Audio unit
  Fig 2: Identifying Headset Connection

  Courtesy of MERCEDES-BENZ USA

Body

The rear display has the following components:

• 8"-TFT (Thin Film Transistor) color display in 16:9 format, maximum breakdown 800 X 480 pixels, color depth 3 X 6 bit (the rear display can display 262, 144 colors)
• Headphones connection (3.5 mm) with amplifier
• AUX connections (2 audio connections (white, red), 1 video connection (yellow))

Setup of the screen using the "Disk" menu item in the "DVD-V" menu as an example

Fig 3: Display - Disk Menu Screen

Courtesy of MERCEDES-BENZ USA
