Remove/install right cylinder head cover - AR01.20-P-5012ELS

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276.8 in MODEL 207, 212, 218

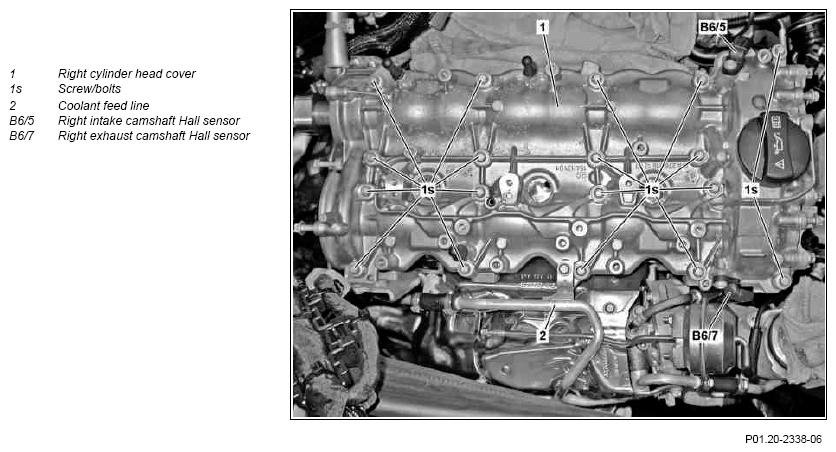

Fig 1: Right Cylinder Head Cover Remove/Install Components
G09973769DANGERNOTESIMPORTANTREMOVINGINSTALLINGNOTESNOTESNOTESINSTALLATION IMPORTANTINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONIMPORTANTNOTESINSTALLATION IMPORTANTSPECIAL TOOLTORQUE SPECIFICATIONINSPECTCLEANINGNOTESREFER TO MAINTENANCEDANGERCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
NOTES Notes on threaded connections with aluminum screws/bolts   AH00.00-P-0006-01RM
IMPORTANT General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVINGINSTALLING Remove/install
1 Open engine hood and raise to vertical position ENGINE 276.8 in MODEL 207, 212, 218
    MODEL 207, 212 with ENGINE 276.8 AR88.40-P-1000EW
2 Disconnect battery ground line   AR54.10-P-0003EW
NOTES Notes on battery   AH54.10-P-0001-01A
3 Remove upper engine cover
4 Remove ME-SFI [ME] control unit   AR07.08-P-7008ELS
5 Remove air filter housing   AR09.10-P-1150ELS
6 Remove noise dampening for injectors on the right and left
7 Drain coolant MODEL 207 with ENGINE 276.8 AR20.00-P-1142A
NOTES Notes on coolant   AH20.00-N-2080-01A
    MODEL 212, 218 with ENGINE 276.8 AR20.00-P-1142EL
8 Detach coolant hose for heater on bulkhead
9 Detach center section of bulkhead ENGINE 276.8 in MODEL 207, 212, 218
    ENGINE 276.8 in MODEL 212 AR61.25-P-6600EW
10 Detach engine wiring harness on the engine side and set aside   AR01.00-P-2410-02ELS
11 Detach charge air cooler at hoses of the charge air pipes and at the throttle valve actuator and pull with attached lines to the front   AR09.41-P-6819ELS
12 Remove ignition coils MODEL 207 with ENGINE 276.8 AR15.12-P-2003FH
    MODEL 212, 218 with ENGINE 276.8 AR15.12-P-2003EL
13 Remove high pressure pump housing MODEL 207 with ENGINE 276.8 AR07.02-P-1020FH
    MODEL 212, 218 with ENGINE 276.8 AR07.02-P-1020EL
14 Remove centrifuge cover on the right-hand cylinder head cover (1) and cylinder head   AR01.20-P-2100ELS
    NOTES Do not bend centrifuge cover too far to the rear.
The oil lines to the oil separator will be damaged otherwise.
INSTALLATION IMPORTANT Replace seal.

15 Remove right rail MODEL 207 with ENGINE 276.8 AR07.03-P-1010FH
    MODEL 212, 218 with ENGINE 276.8 AR07.03-P-1010EL
16 Remove front cover at the right cylinder head   AR01.30-P-5712ELS
17 Detach feed line for coolant (2) from ATL and right cylinder head cover (1) ENGINE 276.8 in MODEL 207, 212, 218 without CODE 920 (Direct petrol injection with stratified charging)
INSTALLATION IMPORTANT Replace seal.

    TORQUE SPECIFICATION Bolt for coolant line attachment *BA09.40-P-1010-01W
    TORQUE SPECIFICATION Bolt, coolant feed/return line to turbocharger *BA09.40-P-1008-01W
18 Loosen screw/bolts (1s) for right cylinder head cover (1) in the reverse order of the tightening procedure and remove them Bolt tightening procedure for cylinder head cover
INSTALLATION IMPORTANT Replace screw/bolts (1s) with new ones.
AR01.20-P-5014-03MMA
    TORQUE SPECIFICATION Screw/bolt, cylinder head cover to cylinder head *BA01.20-P-1004-01L
19 Carefully pry off right cylinder head cover (1) from cylinder head
IMPORTANT Notes on sealant path for cylinder head cover NOTES Do not  hammer in a tool to pry off between the right cylinder head cover (1) and cylinder head.
The sealing surfaces can be damaged otherwise.
INSTALLATION IMPORTANT Apply sealant as per the notes on sealant path to the right cylinder head cover (1).
AH01.30-P-1000-08MM
    Loctite 5970 sealant *BR00.45-Z-1013-01A
    SPECIAL TOOL Application gun Fig 2
20 Modify right intake camshaft Hall sensor (B6/5), right exhaust camshaft Hall sensor (B6/7) and all brackets on the right cylinder head cover (1) Only when replacing the right cylinder head cover (1)
    TORQUE SPECIFICATION Bolt, camshaft Hall sensor to cylinder head cover *BA15.10-P-1006-03E
INSPECT Check
21 Check camshaft mounts in the right cylinder head cover (1) and camshafts for galling and score marks If damage is present:

Replace right cylinder head cover or right camshaft.

    ENGINE 276.8 in MODEL 212, 218 AR05.20-P-6992EL
    ENGINE 276.8 in MODEL 207 AR05.20-P-6992FH
CLEANING Clean
22 Clean sealing surfaces at cylinder head and at right cylinder head cover (1) NOTES Do not use any sharp-edged tools or abrasive paper.
The sealing surfaces can be damaged otherwise.
AR01.00-P-0050-01A
    Loctite 7200 *BR00.45-Z-1038-04A
    Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
23 Install in the reverse order
24 Check engine cooling system for leaktightness MODEL 207 with ENGINE 276.8 AR20.00-P-1010ELA
    MODEL 212, 218 with ENGINE 276.8 AR20.00-P-1010EL
25 Check engine oil level; correct if necessary
    REFER TO MAINTENANCE AP18.00-P-0101CWZ
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
26 Carry out engine test run and check engine for leaktightness while it is running
CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number Designation ENGINE 276
BA01.20-P-1004-01L Screw/bolt, cylinder head cover to cylinder head Stage 1 Nm 12
Stage 2 ∠° 90
TURBOCHARGER

Number Designation ENGINE 276.8
BA09.40-P-1008-01W Bolt, coolant feed/return line to turbocharger Nm 9
TURBOCHARGER

Number Designation ENGINE 276.8
BA09.40-P-1010-01W Bolt for coolant line attachment M6 Nm 9
POSITION SENSOR

Number Designation ENGINE 276
BA15.10-P-1006-03E Bolt, camshaft Hall sensor to cylinder head cover Nm 9
Fig 2: Identifying Application Gun (112 589 00 25 00)
G09973770Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
