Remove/install bulkhead - AR61.25-P-6600EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with ENGINE 274
MODEL 212 with ENGINE 276.8
MODEL 212.095/195 with ENGINE 276.9

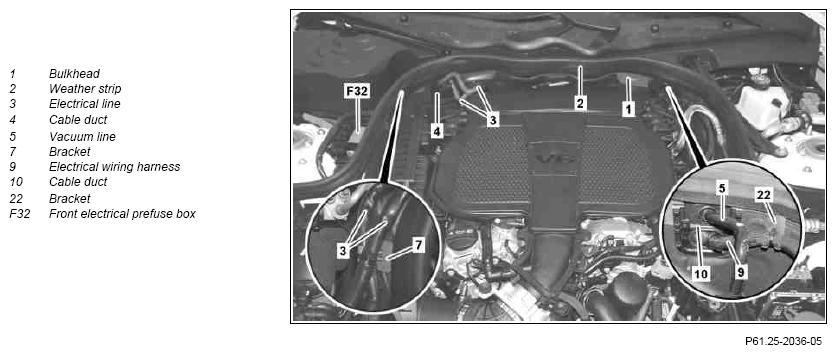

Shown on engine 276.9

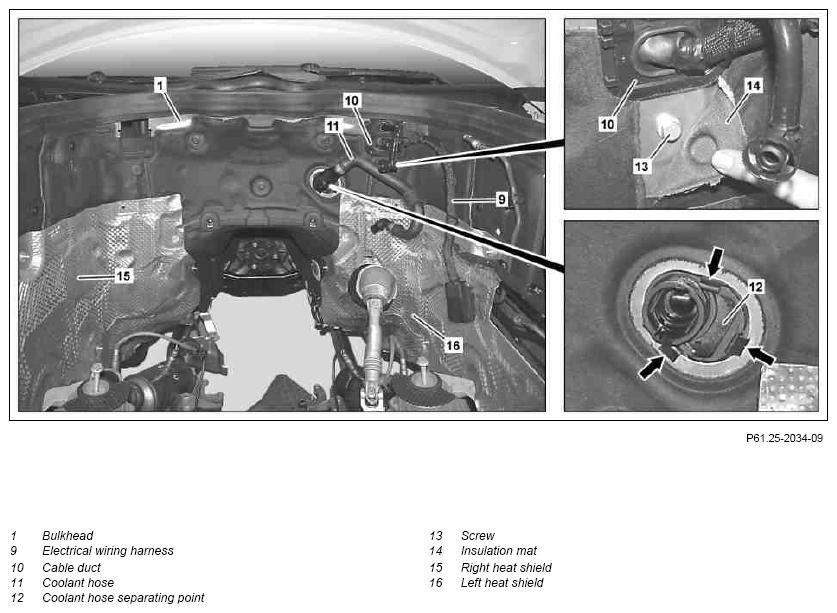

Shown with engine 276.9 removed

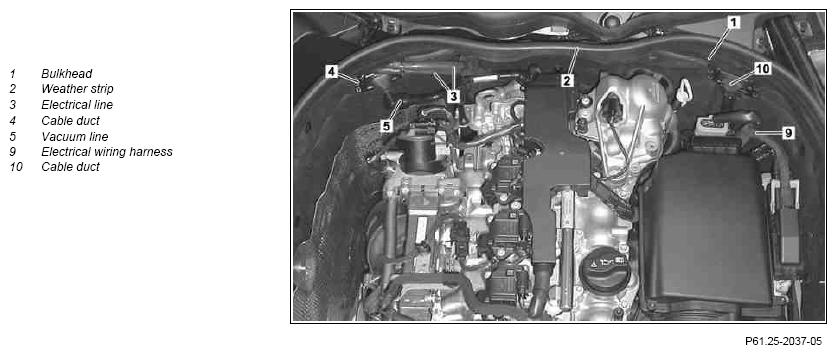

Shown on ENGINE 274

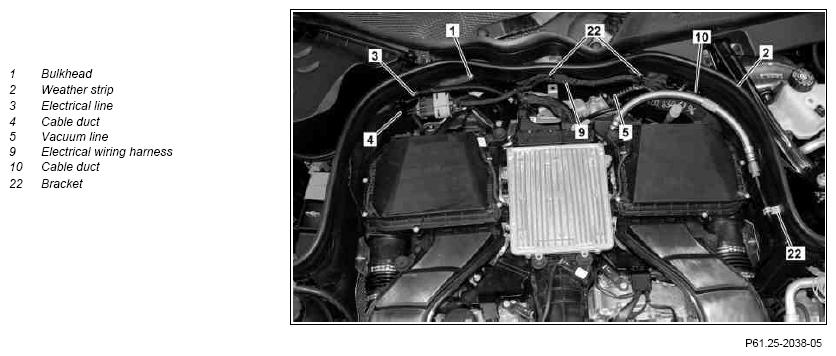

Shown on engine 276.8
Shown with engine removed

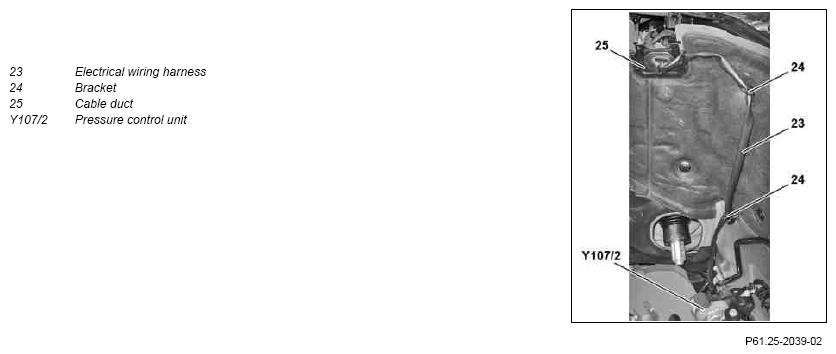

Shown on removed engine 274.9 with CODE 924 (Equipment for natural gas operation)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000EW | |
| 2 | Drain coolant | ENGINE 276 | AR20.00-P-1142EL |
| ENGINE 274 | AR20.00-P-1142MR | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003EW | |
| 4 | Remove edge stripping (2) from bulkhead (1) | ||
| 5 | Disconnect electrical lines (3) from fuse box (F32) | AR54.15-P-1330EW | |
| 6 | Pull cable duct (4) with bracket (7) upward out of bulkhead (1) and lay down to side | ||
| 7.1 | Unclip vacuum line (5) at front | ENGINE 276.8 | |
| 7.2 | Disconnect vacuum line (5) from rear separating point | ENGINE 276.9 | |
| 7.3 | Disconnect vacuum line (5) from cable duct (4) | ENGINE 274 | |
| 8 | Disconnect electrical connection from electrical wiring harness (9) on engine | ||
| 9 | Unhook bracket (22) from bulkhead (1) | ENGINE 276 | |
| 10.1 | Pull vacuum line (5) and electrical wiring harness (9) with cable duct (10) upward out of bulkhead (1) and lay down to side | ENGINE 276 | |
| 10.2 | Pull electrical wiring harness (9) with cable duct (10) upward out of bulkhead (1) and lay down to side | ENGINE 274 | |
| 11 | Disconnect electrical wiring harness (23) from pressure control unit (Y107/2) | MODEL 212 with ENGINE 274.9 with CODE 924 (Provision for natural gas operation) |
AR07.17-P-0001MRC |
| 12 | Unclip electrical wiring harness (23) from bracket (24) | MODEL 212 with ENGINE 274.9 with CODE 924 (Provision for natural gas operation) |
|
| 13 | Pull electrical wiring harness (23) with cable duct (25) upward out of bulkhead (1) and lay down to side | ||
| 14 | Disconnect coolant hose (11) from coolant hose separating point (12) and lay down to side | ||
| 15 | Release catch hook (arrows) on coolant hose separating point (12) and press coolant hose separating point (12) out of bulkhead (1) toward rear | ||

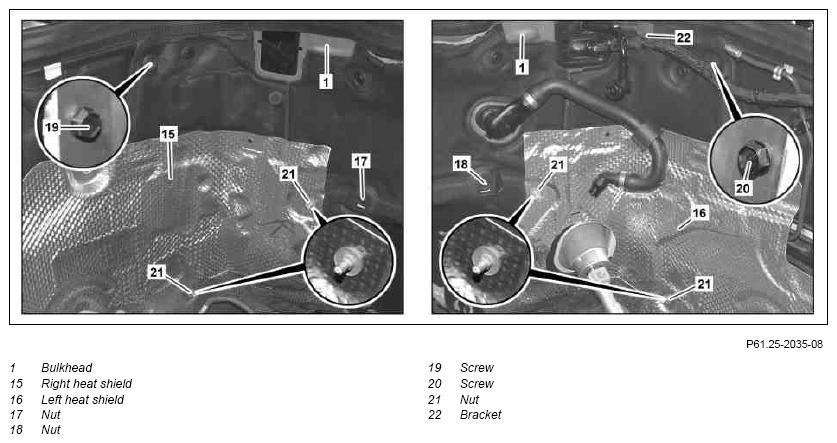

| 16 | Remove bolt (13) | ||
| 17 | Unscrew bolts (19, 20) | ||
| 18 | Unscrew nuts (21) | ||
| 19 | Detach right heat shield (15) and left heat shield (16) from threaded pin on clip-on nuts (21) | ||
| 20 | Release nuts (17, 18) | ||
| 21 | Remove bulkhead (1) upward | ||
| 22 | Transfer insulation mat (14) | When replacing bulkhead (1). | |
| 23 | Install in the reverse order |
