Bolt tightening procedure for cylinder head cover - AR01.20-P-5014-03MMA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276
CRANKCASE VENTILATION, CYLINDER HEAD COVER
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA01.20-P-1004-01L | Bolt, cylinder head cover to cylinder head | Stage 1 | Nm | 12 |
| Stage 2 | ∠° | 90 | ||
Tighten cylinder head cover bolts in the numerical sequence.
Replace bolts for cylinder head covers.

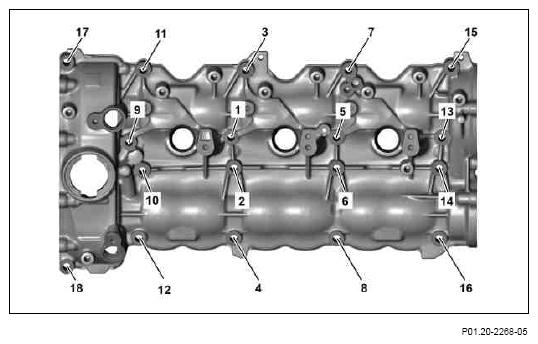

Right cylinder head cover
- Tighten bolts (1 to 18) to Stage 1.
- Tighten bolts (1 to 18) to Stage 2.

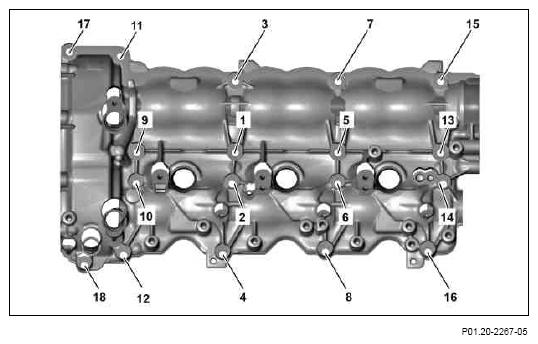

Left cylinder head cover
- Tighten bolts (1 to 18) to Stage 1.
- Tighten bolts (1 to 18) to Stage 2.
