Remove/install left cylinder head - AR01.30-P-5770EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276.9 in MODEL 212, 218

Shown on model 218.355

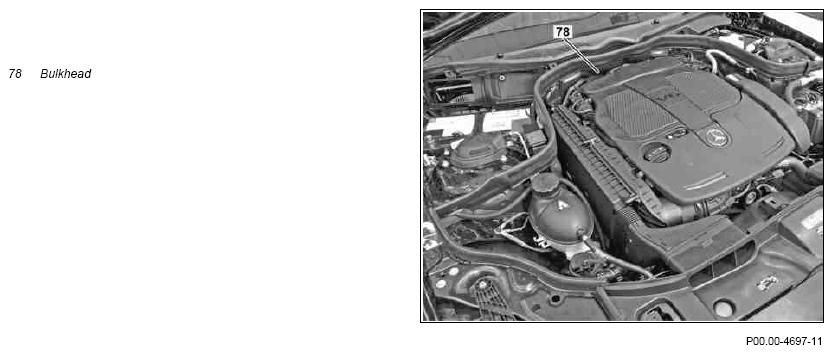

Fig 1: Left Cylinder Head Remove/Install Components - Shown On Model 218.355 (1 Of 5)
G09973829Courtesy of MERCEDES-BENZ USA

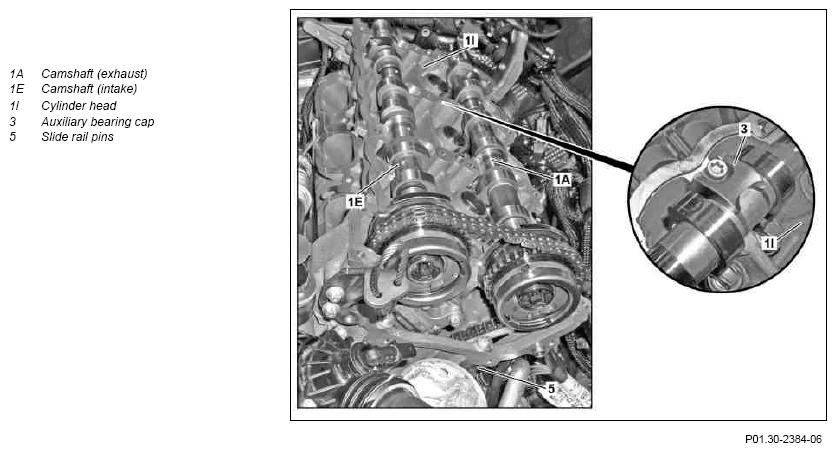

Fig 2: Left Cylinder Head Remove/Install Components - Shown On Model 218.355 (2 Of 5)
G09973830Courtesy of MERCEDES-BENZ USA

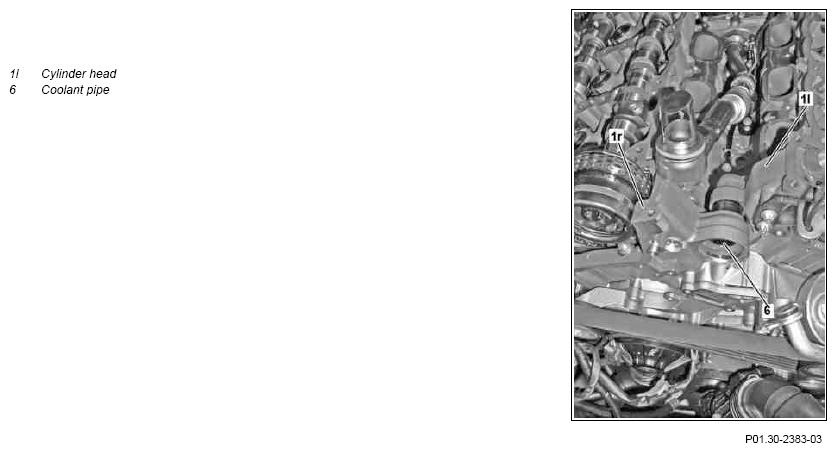

Fig 3: Left Cylinder Head Remove/Install Components - Shown On Model 218.355 (3 Of 5)
G09973831Courtesy of MERCEDES-BENZ USA

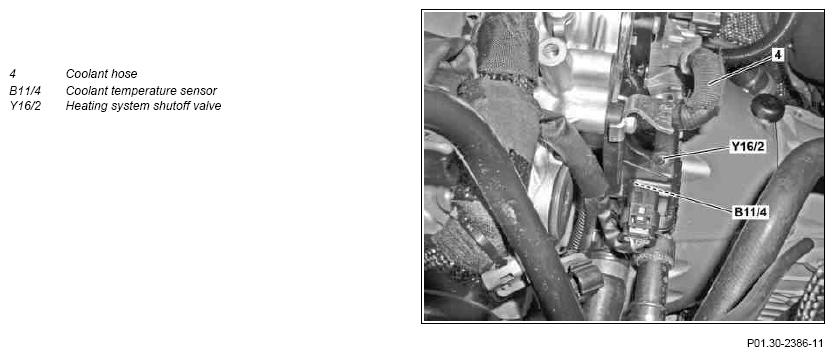

Fig 4: Left Cylinder Head Remove/Install Components - Shown On Model 218.355 (4 Of 5)
G09973832Courtesy of MERCEDES-BENZ USA
Fig 5: Left Cylinder Head Remove/Install Components - Shown On Model 218.355 (5 Of 5)
G09973833DANGERNOTESIMPORTANTREMOVINGREMOVINGINSTALLATION IMPORTANTNOTESINSTALLATION IMPORTANTSPECIAL TOOLINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION IMPORTANTINSTALLATION IMPORTANTSPECIAL TOOLSPECIAL TOOLIMPORTANTNOTESINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONIMPORTANTREFER TO COMPONENT MODIFICATIONSINSTALLATION IMPORTANTINSTALLATION IMPORTANTSPECIAL TOOLCLEANINGNOTESNOTESREFER TO MAINTENANCEINSPECTDANGERCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
NOTES Note on the -voltage on-board electrical system   AH54.00-P-0010-01A
IMPORTANT General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVINGREMOVING Remove/install
1 Perform enable for the high voltage on-board electrical system MODEL 212.095/195 AR54.10-P-1150EH
2 Remove bulkhead (78) MODEL 212.095/195
INSTALLATION IMPORTANT Pay attention to correct seating of bulkhead (78).
AR61.25-P-6600EW
3 Remove guide tube of oil dipstick   AR18.40-P-3510EL
4 Remove cylinder head cover   AR01.20-P-5013EEL
5.1 Remove exhaust manifold with CAT ENGINE 276.9 in MODEL 212, 218 with CODE 920 (Direct petrol injection with stratified charging) AR14.10-P-4095EL
5.2 Remove exhaust manifold ENGINE 276.9 in MODEL 212, 218
    without CODE 920 (Direct petrol injection with stratified charging) AR14.10-P-3006EHV
6 Drain coolant   AR20.00-P-1142EL
NOTES Notes on coolant   AH20.00-N-2080-01A
7 Remove coolant thermostat   AR20.10-P-2460EL
8 Remove coolant pipe (6) INSTALLATION IMPORTANT Install new coolant pipe (6).
9 Unclip electrical lines for knock sensors on heating system shutoff valve (Y16/2)
10 Detach coolant hose (4) for exhaust gas recirculation positioner and coolant hose to the heater cooler at heating system shutoff valve (Y16/2)   AR09.41-P-1311-01AL
    SPECIAL TOOL Hose clamp pliers Fig 8
11 Remove heating system shutoff valve (Y16/2) INSTALLATION IMPORTANT Replace seal.
    TORQUE SPECIFICATION Bolt, heater feed to cylinder head *BA20.10-P-1006-01AA
12 Pull coolant temperature sensor (B11/4) out of cylinder head (1l) INSTALLATION IMPORTANT Replace seal.
13 Remove chain tensioner   AR05.10-P-7800EL
14 Pull out sliding rail bolts (5) out of cylinder head (1l) INSTALLATION IMPORTANT Apply sealant to slide rail pins (5) before inserting them.
SPECIAL TOOL Impact extractor Fig 9
SPECIAL TOOL Threaded bolt Fig 7
15 Remove camshafts (1A, 1E) IMPORTANT The camshaft (1A, 1E) and camshaft positioner must be removed together. AR05.20-P-6992EL
16 Loosen cylinder head bolts (1) in stages in reverse order of tightening procedure and remove them   AR01.30-P-5800-01MMA
NOTES Only loosen cylinder head bolts (1s) when engine has cooled off.
The cylinder head (1l) can be deformed by stresses otherwise.
INSTALLATION IMPORTANT Replace cylinder head bolts (1s).

TORQUE SPECIFICATION Bolt, cylinder head to crankcase *BA01.30-P-1001-01W
TORQUE SPECIFICATION Bolt, cylinder head to timing case cover *BA01.30-P-1002-01W
17 Remove cylinder head (1l) from crankcase (2)
IMPORTANT Notes on sealant path for cylinder crankcase   AH01.40-P-1000-08MM
REFER TO COMPONENT MODIFICATIONS Cylinder head changed   BT01.30-P-0004-01MM
    INSTALLATION IMPORTANT Apply sealant to cylinder crankcase (2).
INSTALLATION IMPORTANT Fit new cylinder head gasket onto the crankcase (2). Pay attention to pilot bushing for fixing the cylinder head (1).

    SPECIAL TOOL Application gun Figure
CLEANING Clean
18 Clean sealing surfaces at cylinder head (1l) and at cylinder crankcase (2)   AR01.00-P-0050-01A
NOTES Do not use any sharp-edged tools or abrasive paper.
The sealing surfaces can be damaged otherwise.

Loctite 7200 *BR00.45-Z-1038-04A
Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
19 Blow out threaded holes for cylinder head bolts (1s) in crankcase (2) with compressed air, and clean off the engine oil and the coolant
20 Check sealing surfaces on cylinder head (1l) and crankcase (2) for cracks and unevenness NOTES The cylinder head (1l) and crankcase (2) must not be reworked (surface grinding).
The left cylinder head (1l) or the cylinder crankcase (2) may be destroyed otherwise due to exceeding the machining tolerances.

21 Install in the reverse order
22 Change engine oil and oil filter element
REFER TO MAINTENANCE     AP18.00-P-0101CWZ
INSPECT Check
24 Check basic position of the camshafts (1A, 1E)   AR05.20-P-6020EL
25 Check engine cooling system for leaktightness   AR20.00-P-1010EL
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
26 Carry out an engine test run and check engine and fuel system for leaktightness
CYLINDER HEAD

Number Designation ENGINE 276
BA01.30-P-1001-01W Bolt, cylinder head to M11 crankcase Stage 1 Nm 20
Stage 2 Nm 40
Stage 3 ∠° 90
Stage 4 ∠° 90
CYLINDER HEAD

Number Designation ENGINE 276
BA01.30-P-1002-01W Bolt, cylinder head to timing case cover M7 Nm 14
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation ENGINE 276
BA20.10-P-1006-01AA Bolt, heater feed to cylinder head Nm 9
Fig 6: Identifying Application Gun (112 589 00 25 00)
G09973834Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Threaded Bolt (116 589 01 34 00)
G09973835Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Hose Clamp Pliers (003 589 03 37 00)
G09973836Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Impact Extractor (116 589 20 33 00)
G09973837Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
