Notes on sealant path for cylinder crankcase - AH01.40-P-1000-08MM
ENGINE 152.9, 157, 276, 278
The sealant may only be applied to the specified surfaces in the form of a bead with height and width of 1.0 mm (±0.3 mm).
The sealant must be applied within 10 min.
The sealant bead must not be spread.
The sealing surfaces must be cleaned.
Use only the sealant indicated in the repair materials.
Mount cylinder head within 10 minutes after application of the sealant.

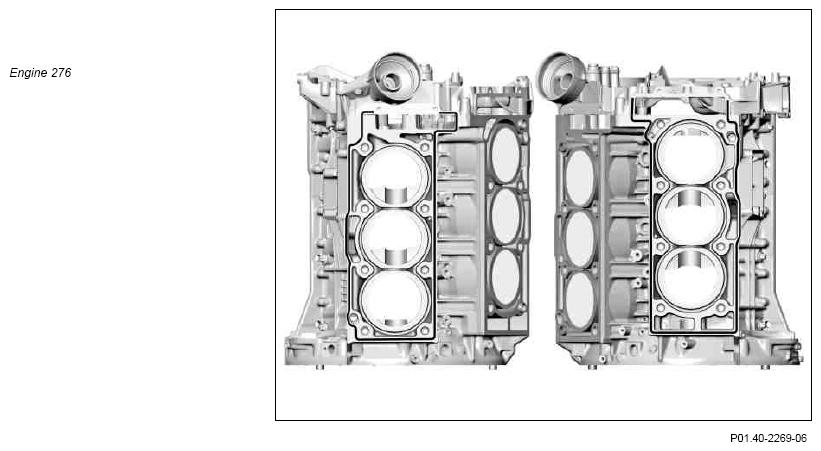

Engine 276
Engine 152, 157, 278
