Cylinder head changed - BT01.30-P-0004-01MM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 276, 278
ENGINE 157

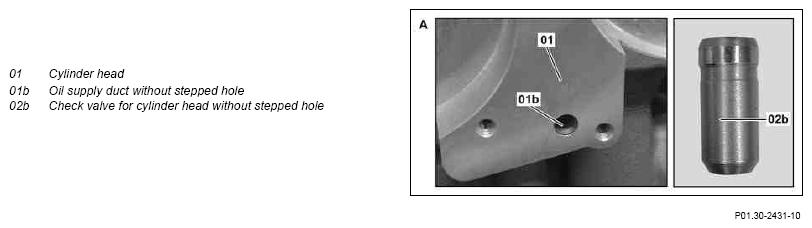

Cylinder head without stepped hole
Courtesy of MERCEDES-BENZ USA

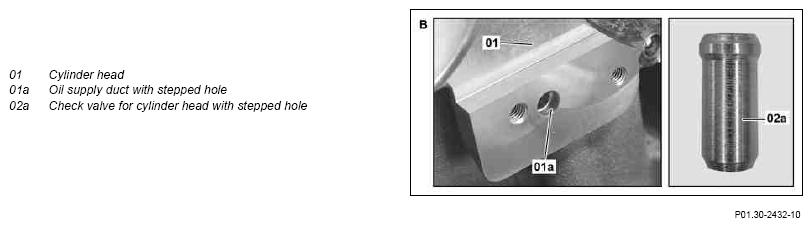

Cylinder head with stepped hole
Courtesy of MERCEDES-BENZ USA
For optimization of the oil circuit a check valve has been retrofitted for the chain tensioner in the oil supply duct in the cylinder head. The oil supply duct for the chain tensioner was also adapted as part of this measure so that there are now vehicles with and without a stepped hole in the cylinder head. The check valve for the chain tensioner must be installed in the cylinder head when replacing the cylinder head.
