Tightening procedure for cylinder head bolts - AR01.30-P-5800-01MMA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276
CYLINDER HEAD
| Number | Designation | Engine 276 | |||
|---|---|---|---|---|---|
| BA01.30-P-1001-01W | Bolt, cylinder head to crankcase | M11 | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 40 | |||
| Stage 3 | ∠° | 90 | |||
| Stage 4 | ∠° | 90 | |||
| BA01.30-P-1002-01W | Bolt, cylinder head to timing case cover | M7 | Nm | 14 | |

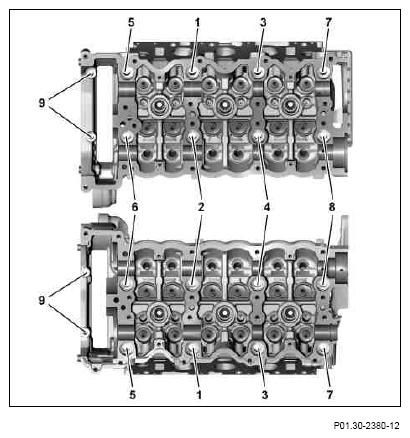

The order of tightening listed for the left and the right cylinder head given below must be followed in order to avoid any consequent damages.
To loosen the cylinder head bolts (1 to 9), use the reverse tightening order.
- Tighten cylinder head bolts (1 to 8) to stage 1.
- Tighten cylinder head bolts (1 to 8) to stage 2.
- Tighten cylinder head bolts (1 to 8) to stage 3.
- Tighten cylinder head bolts (1 to 8) to stage 4.
- Tighten cylinder head bolts (9).
