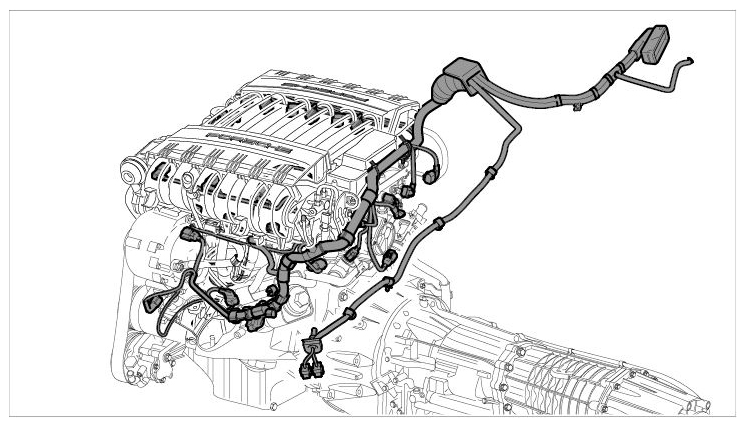

Removing Wire Harness For Engine
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

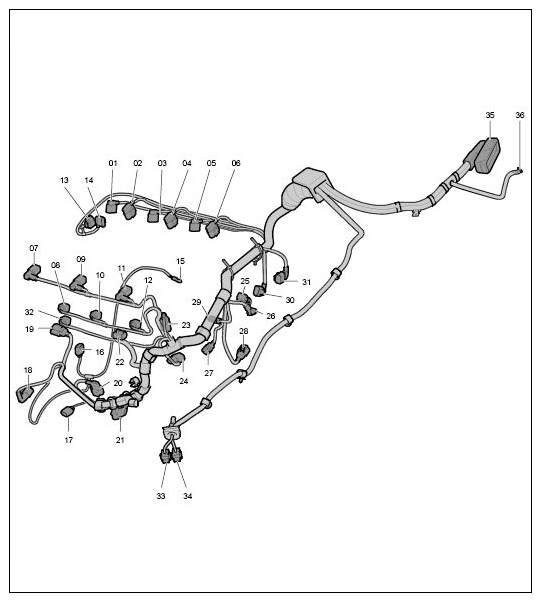

- 1-6 - Bar ignition module connectors for cylinders 1-6
- 7-12 - Connectors for high-pressure fuel injectors (DFI) for cylinders 1-6
- 13 - Throttle valve connector
- 14 - Crankcase heater connector
- 15 - Starter lead for terminal 50
- 16 - Knock sensor connector on DFI engines, right
- 17 - Connector for oil level sensor
- 18 - A/C compressor connector
- 19 - Connector for generator
- 20 - Crankshaft pulse sender on DFI engines
- 21 - Connector for oil pressure switch
- 22 - Connector for knock sensor on DFI engines, left
- 23 - Connector for high-pressure sensor
- 24 - Connector for flow control valve
- 25-26 - Connectors for hydraulic valves for camshaft adjustment on DFI engines
- 27 - Connector for coolant temperature gauge
- 28 - Connector for additional coolant pump
- 29-30 - Hall sender connectors (camshafts) on DFI engines
- 31 - Connector for carbon canister valve
- 32 - Connector for intake pipe switchover valve
- 33-34 - Plug connections between engine wire harness and main wire harness
- 35 - DME control unit connector
- 36 - Ground strap
- Release connectors on DFI bar ignition modules -1 to 6- and pull them off. → Removing Bar Ignition Modules
- Release connectors on high-pressure fuel injectors (DFI) -7 to 12- and pull them off. → Removing High-Pressure Fuel Injector
- Screw off fastening nut and detach terminal 50 line -15- from starter. → Removing The Starter
- Release connector on right knock sensor on DFI engines -16- and pull it off. → Removing Right Knock Sensor
- Release connector on oil level sensor -17- and pull it off. → Removing Oil Level Sensor
- Unclip engine wire harness with retaining clips at the front right engine housing -arrows- .

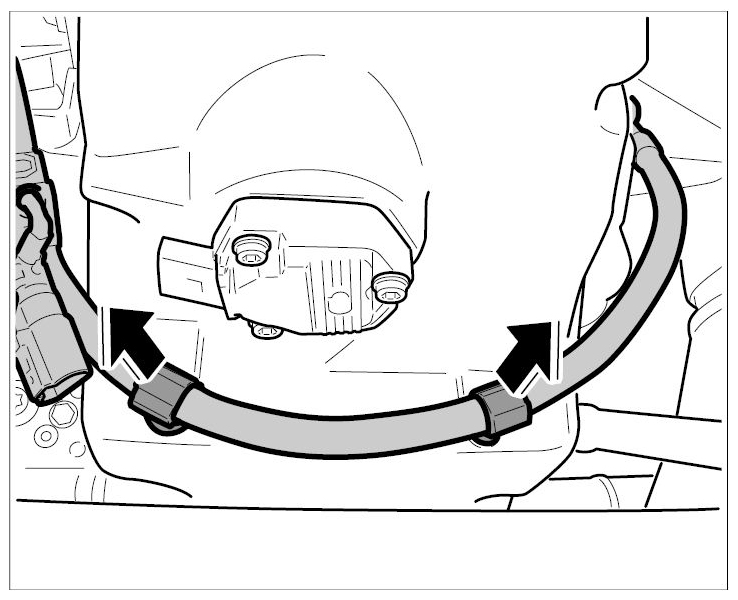

- Unclip engine wire harness with retaining clips from the oil pan -arrows- .

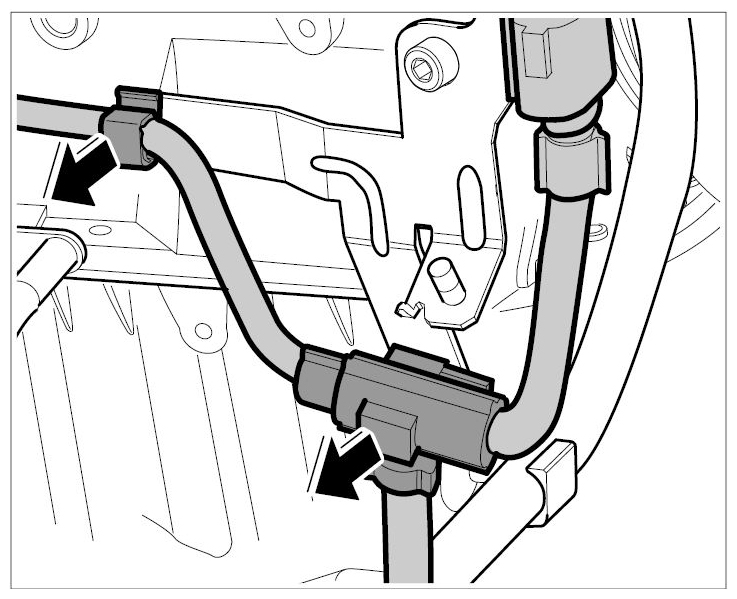

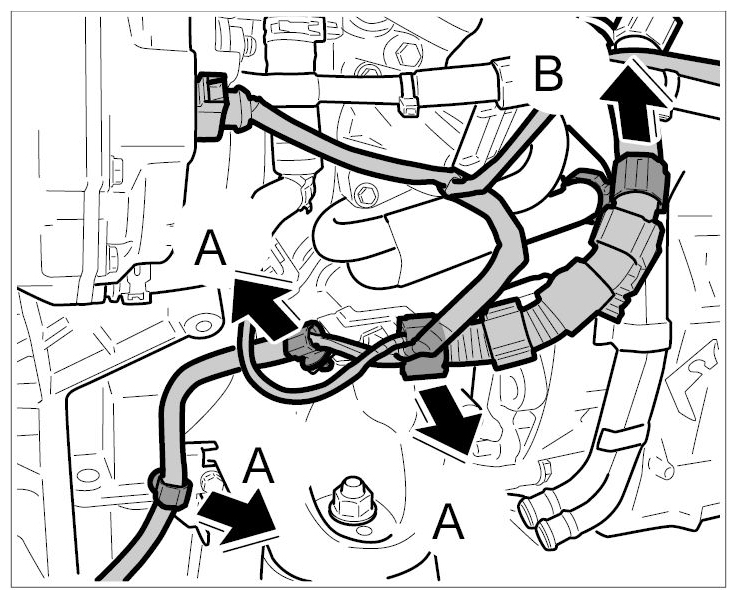

- Unclip engine wire harness with retaining clips at the front left engine housing -arrows A- and detach from the coolant hose together with the support -arrow B- .
- Release connector on air-conditioning compressor -18- and pull it off. → Removing Air Conditioning Compressor
- Release connector on the generator -19- and pull it off. → Removing The Generator
- Release connector on crankshaft pulse sender on DFI engines -20- and pull it off. → Removing Crankshaft Pulse Sender
- Release connector on oil pressure switch -21- and pull it off. → Removing Oil Pressure Switch
- Release connector on left knock sensor on DFI engines -22- and pull it off. → Removing Right Knock Sensor
- Release connector on high-pressure sensor (rail pressure sensor) on DFI engines -23- and pull it off. → Removing High-Pressure Sensor (Rail Pressure Sensor)
- Release connector on flow control valve -24- and pull it off. → Removing High-Pressure Pump

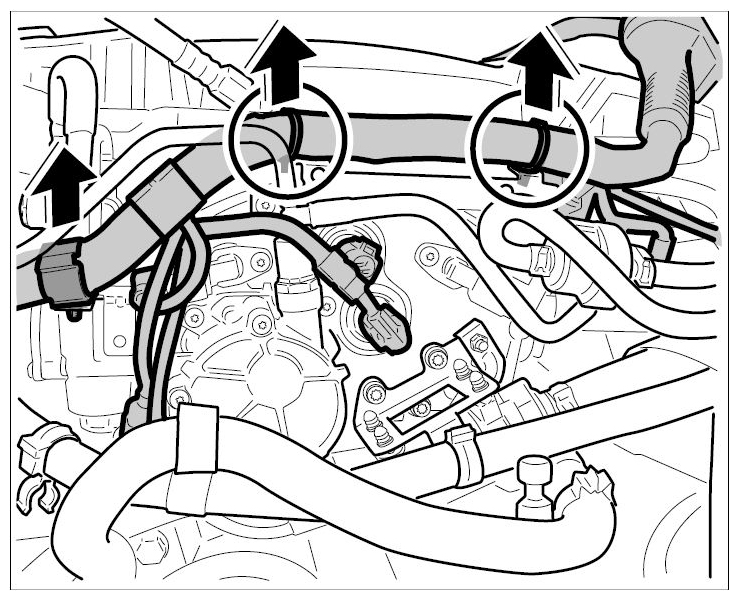

- Unclip engine wire harness with retaining clips at the rear engine housing -arrows- .
- Release connectors on hydraulic valves for camshaft adjustment on VR6 DFI engines -25 and 26- and pull them off. → Removing Upper Timing-Case Cover
- Release connector on coolant temperature gauge on DFI engines -27- and pull it off. → Removing Coolant Temperature Sensor

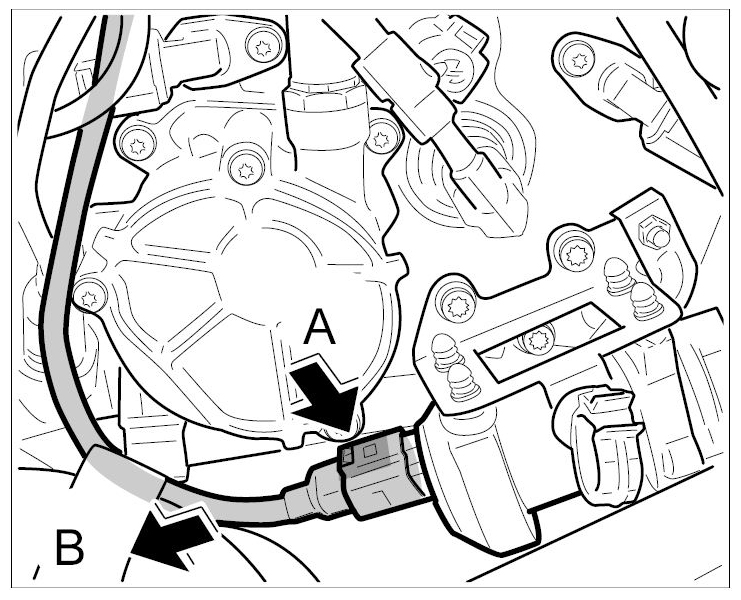

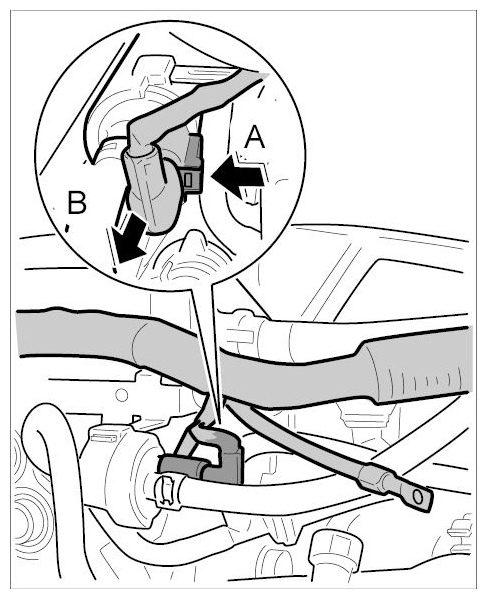

- Release connector on additional coolant pump -28-
(-arrow A-
) and pull it off -arrow B-
. → Removing Coolant Pump
Information
- Mark hall sender cable plugs according to position of intake and outlet camshafts.
- Have a mirror and lamp to hand in case the installation position is difficult to see. .
- Release connectors on hall senders (camshafts) on DFI engines -29 and 30- and pull them off. → Removing Hall Sender
- Release connector on carbon canister valve -31- (-arrow A- ) and pull it off -arrow B- .
- Remove cover for relay carrier in plenum panel E-box.

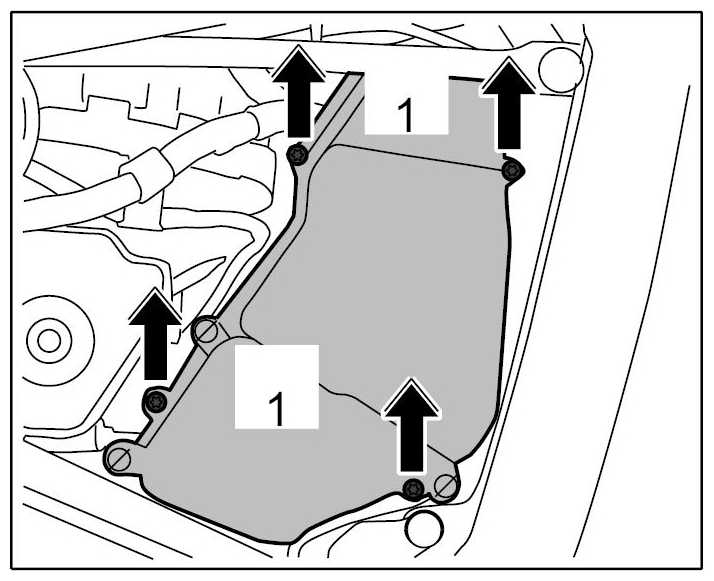

- 22.1. Unscrew fastening screws -1- (-arrows- ) and remove cover.
- Disconnect plug connection for engine wire harness to main wire harness -33 and 34-
in relay carrier for the plenum panel E-box.

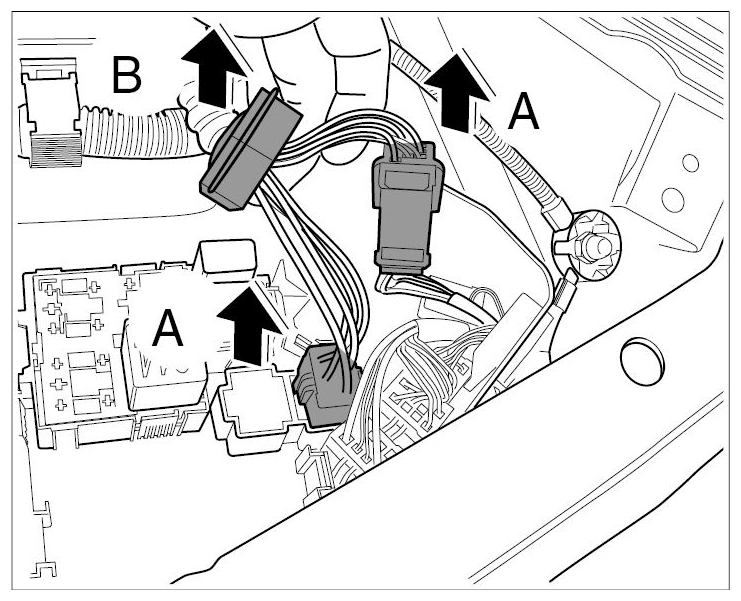

- 23.1. Pull off connectors (white, red) -arrows A- and remove engine wire harness -arrow B- .
- Loosen engine wire harness in left plenum panel.

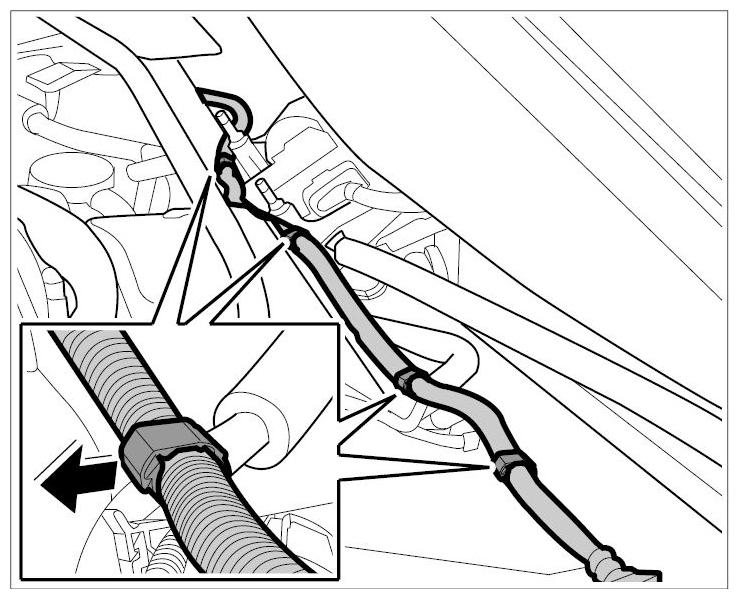

- 24.1. Unclip engine wire harness with retaining clips from the plenum panel -arrow- .
- Pull off connector on DME control unit -35- . → Removing Dme Control Unit
- Loosen ground straps -36-
.

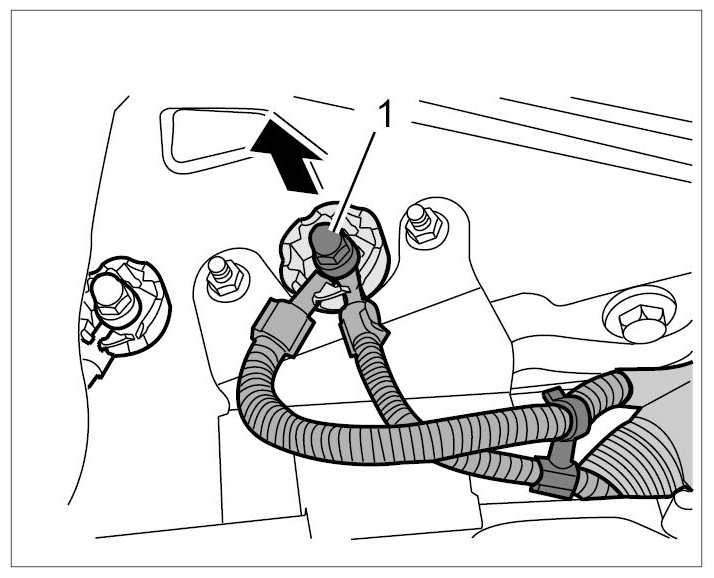

- 26.1. Screw off fastening nut -1- and remove the ground straps together with the twist lock -arrow- .
- Loosen engine wire harness in right plenum panel and take it out of the plenum panel.

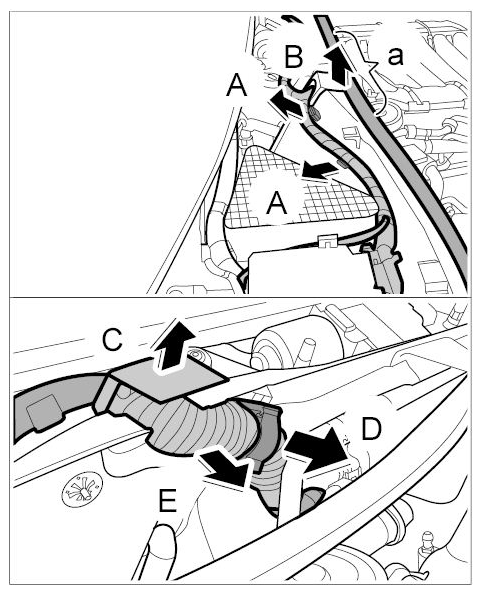

- 27.1. Pull engine wire harness together with retaining clips off the threaded bolts -arrows A- and remove rubber seal in area -a- (-arrow B- ).
- 27.2. Pull rubber sleeve up and out -arrow C- .
- 27.3. Unclip engine wire harness at the retaining clip -arrow D- and remove engine wire harness -arrow E- .
