Removing Oil Level Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the electric connector at the oil level sensor. Use the assembly tool T10118 if necessary. Confined work area under the engine carrier and front axle.

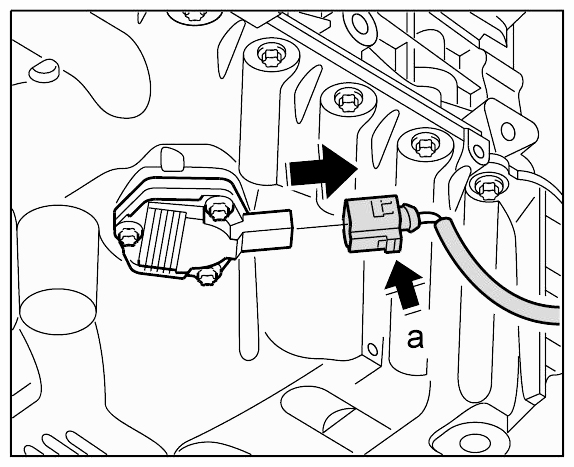

Fig 1: Locating Oil Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen the fastening screws and pull the oil level sensor out of the oil pan. Oil will continue to drip.

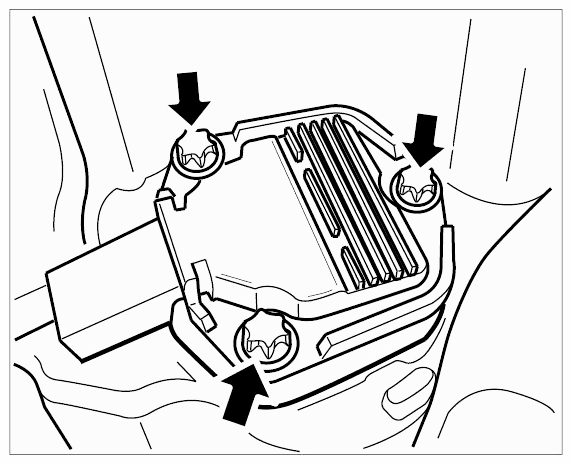

Fig 2: Locating Oil Level Sensor Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace sealing ring for oil level sensor.
