Removing Right Knock Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove intake manifold. → WM 243519 REMOVING AND INSTALLING AIR BOX FOR THROTTLE HOUSING ON DFI ENGINES (INTAKE PIPES UPSTREAM OF THROTTLE VALVE)

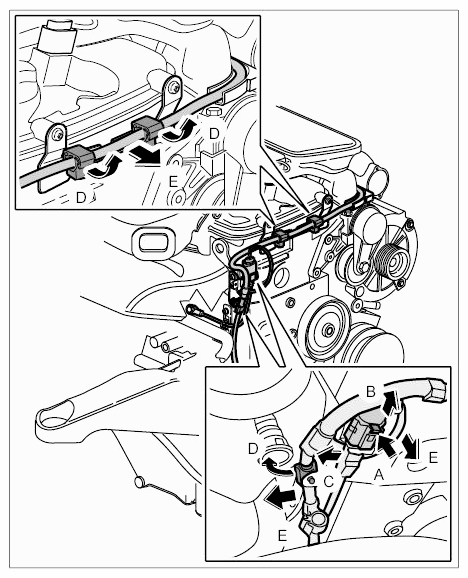

Remove connector on the right knock sensor (under the exhaust manifold) at the front of the cylinder head cover and release the socket -A, B and E in bottom part of illustration-.

Fig 1: Removing Right Cable Lead
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

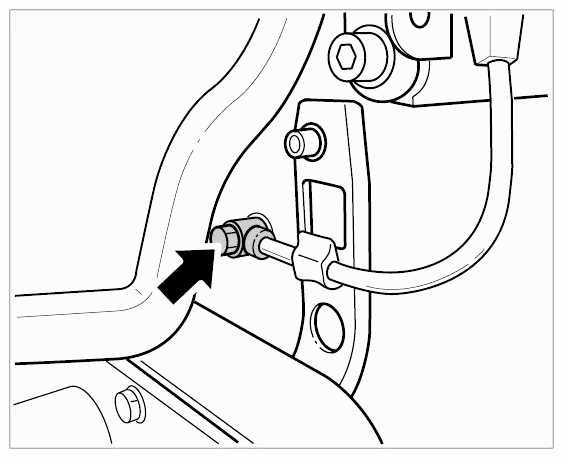

Unscrew the right knock sensor (under the exhaust manifold). To do this, loosen the fastening screw -arrow- and remove the knock sensor. Unclip cable. Remove knock sensor.

Fig 2: Locating Right Knock Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
