Removing The Generator

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

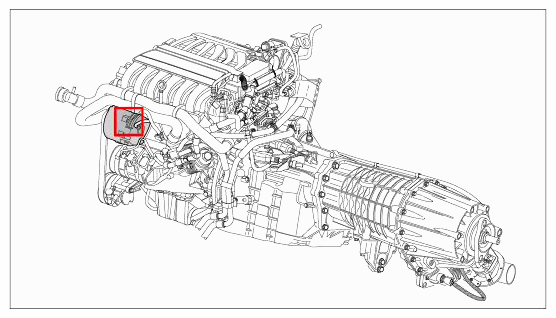

Fig 1: Identifying Generator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release connector -1- (-Arrow A- ) and unplug it -Arrow B- .

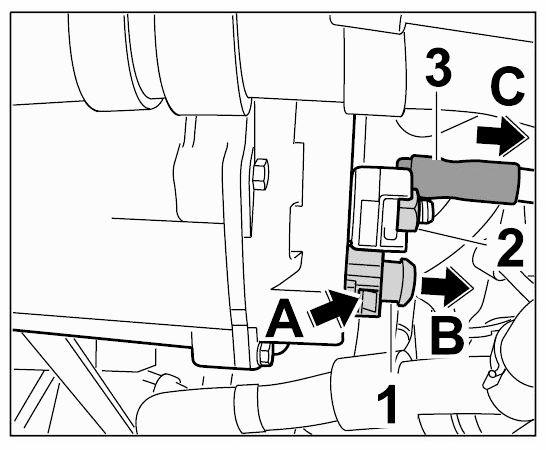

Fig 2: Locating Generator Electric Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off fastening nut -2- and pull off the B+ line -3- (-Arrow C- ).
Unscrew fastening screws -3- and remove the generator to the side -Arrow- . Press the generator out of the bracket using a lever if necessary.

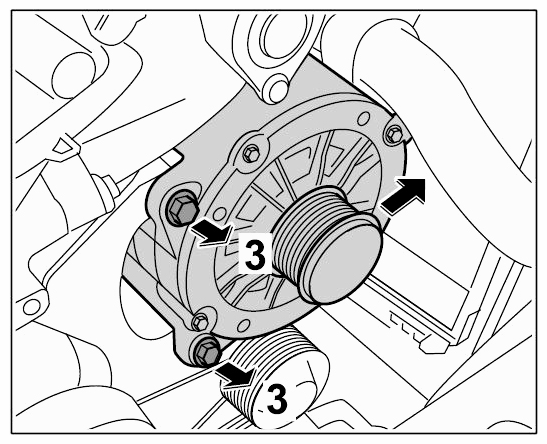

Fig 3: Removing Generator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release supply and return hose -2- on the generator -3- .

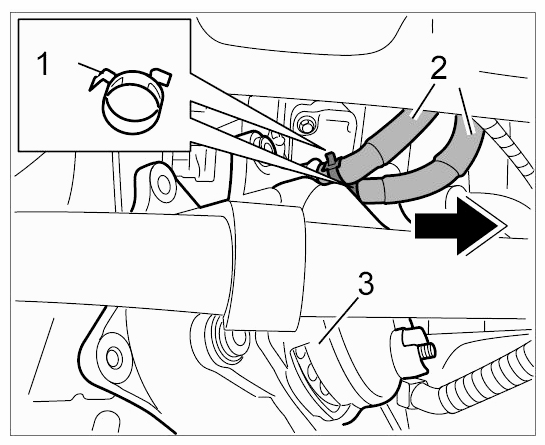

Fig 4: Releasing Supply And Return Hose On Generator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Clamp the two hoses -2- using the hose clamp 3094 .
2. 4.2. Press spring band clamps -1- together and pull supply and return hose -2- off the water hose adapters on the generator -3- .
Lift generator up and out. Press the upper cooling water hose aside if necessary.
