Removing Oil Pressure Switch
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Toxic substances
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
→ Ventilate the work area well.
→ Never ingest or inhale.
→ Read specific information on the Hazard Sheet.
→0 01Wear personal protective gear.
→ Do not smoke, eat or drink in the work area.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapours.
→ Attach warning sign in a clearly visible position.
Information
- Oil pressure may be too low for a number of reasons:
- Oil is diluted.
- Oil pump is faulty.
- Bearing clearance is too large (e.g. crankshaft bearing)
- Oil level is too low.
- Oil pressure regulating valve is faulty.
- Incorrect oil has been used. Only use oil that has been approved by Porsche for the measurement.
Information

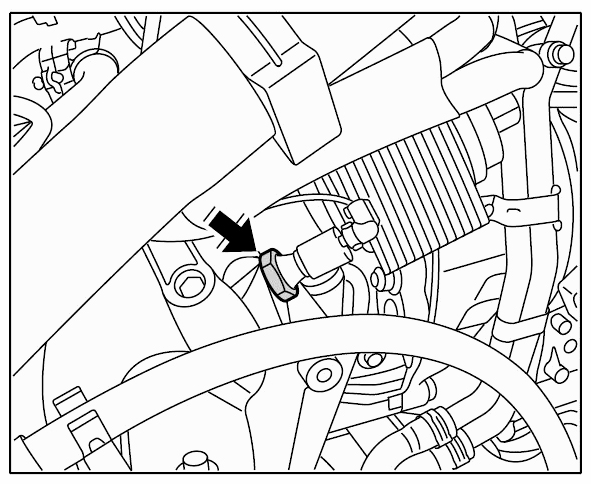

- The oil-pressure sender is located on the oil-filter console to the left under the generator.
- Pull electric connector off the oil pressure switch by pressing the button.
Information
- When the oil-pressure sender is unscrewed, approx. 0.3 litres of engine oil will escape.
Collect emerging oil and dispose of it in accordance with the applicable national laws.
- Loosen the oil pressure switch and unscrew it. Collect emerging oil and dispose of it in accordance with the applicable national laws.
