51 11 157 Replace bumper panel, front

Necessary preliminary tasks:

• Remove FRONT BUMPER PANEL

If necessary, swap over outside temperature sensor (1) and lead (2).

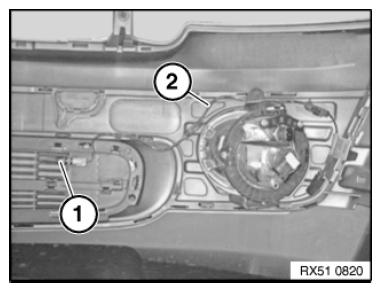

Fig 1: Identifying Outside Temperature Sensor And Lead

Courtesy of BMW OF NORTH AMERICA, INC.

Swap over the following parts according to version:

• Locator lights: see LEFT POSITION LIGHT (WITH HEADLIGHT CLEANING SYSTEM) and RIGHT POSITION LIGHT .
• Fog lights: see LEFT FOG LIGHT (WITH HEADLIGHT CLEANING SYSTEM) , RIGHT FRONT FOG LIGHT , or FOG LIGHTS (WITHOUT HEADLIGHT CLEANING SYSTEM) .
  NOTE: ADJUST after fitting
• Ornamental grille/Center cover: see ORNAMENTAL GRILLE IN BUMPER PANEL  and CENTER COVER
• BUMPER TRIM PANEL FINISHER
• SPOILER
• CAR REGISTRATION NUMBER
