51 11 180 Removing and installing/replacing ornamental grille in bumper panel

Necessary preliminary tasks:

Up to production date 08/2010:

From production date 08/2010:

NOTE: Work shown as example for R56version up to 08/2010.

If necessary, remove outside temperature sensor (1).

Release latch mechanisms (2) and remove ornamental grille (3).

Installation note:

Latch mechanisms on grille and bumper panel must not be damaged.

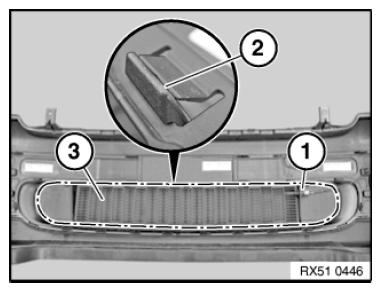

Fig 1: Identifying Temperature Sensor, Latch Mechanisms And Ornamental Grille

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of replacement and appropriate version:
