51 11 300 Removing and installing/replacing center cover

Special tools required:

IMPORTANT: Risk of damage!
Tape off bumper in working area with adhesive tape.

Remove cover (2) at latch mechanisms (1) in lower area using special tool 00 9 325 .

Pull cover (2) at bottom slightly forwards and manually remove upper latch mechanisms (1).

Remove cover (2).

Installation note:

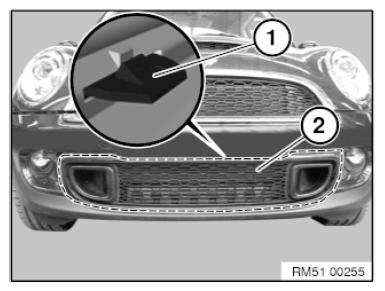

Fig 1: Identifying Cover And Upper Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Latch mechanisms (1) on cover (2) must not be damaged.

First thread out the cover (2) to the side.

Replacement:
