63 17 068 Removing and installing/replacing the fog light (without headlight cleaning system)

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Release expanding rivet (1) and air hose (2).

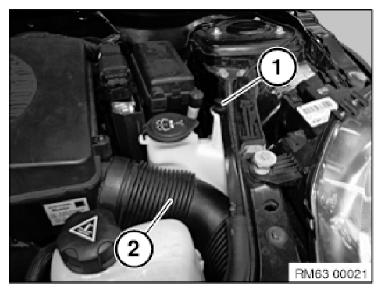

Fig 1: Identifying Expanding Rivet And Air Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lid (1).

Release expanding rivet (2).

Release screw (3).

Fig 2: Identifying Lid, Expanding Rivet And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Fold wheel arch panel (1) towards rear and fasten.

Disconnect connector (3).

Release screws (4).

Lever out washer fluid reservoir (2) and turn in direction of arrow into wheel arch.

Fig 3: Removing Washer Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Press washer fluid reservoir (1) to the top.

Fig 4: Pressing Washer Fluid Reservoir To Top

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out fog lights (2) toward side.

Fig 5: Identifying Position Light And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

On replacement of fog light or bumper panel at front:
