51 11 152 Remove and install/replace the center spoiler on bumper panel

Necessary preliminary tasks:

Release left and right expanding rivets (1).

Installation note:

Replace expanding rivets.

Fig 1: Identifying Expanding Rivets
G10995463Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) and remove spoiler (2).

Installation note:

Latch mechanisms (1) must not be damaged.

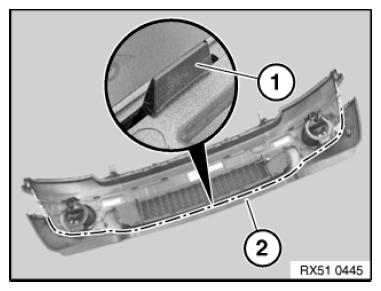

Fig 2: Identifying Spoiler Catches
G10995464Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
