51 11 164 Removing and installing/replacing trim for bumper trim on left or right

Special tools required:

Necessary preliminary tasks:

Unclip trim (1) with special tool 00 9 322 .

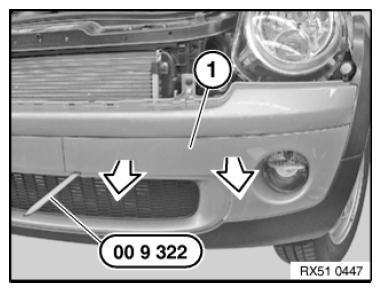

Fig 1: Unclipping Trim With Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guides (2) on trim (3) must not be damaged.

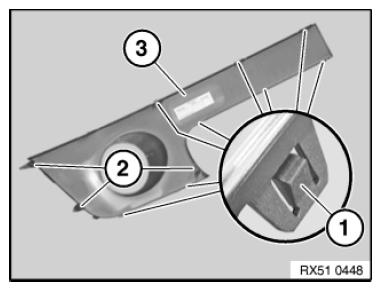

Fig 2: Identifying Catches And Guides On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

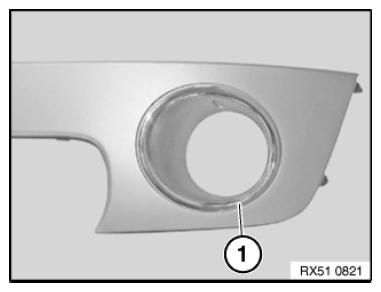

Fig 3: Identifying Trim Ring

Courtesy of BMW OF NORTH AMERICA, INC.
